CLUTCH
L3301, L3901, L4701, WSM
2-S12

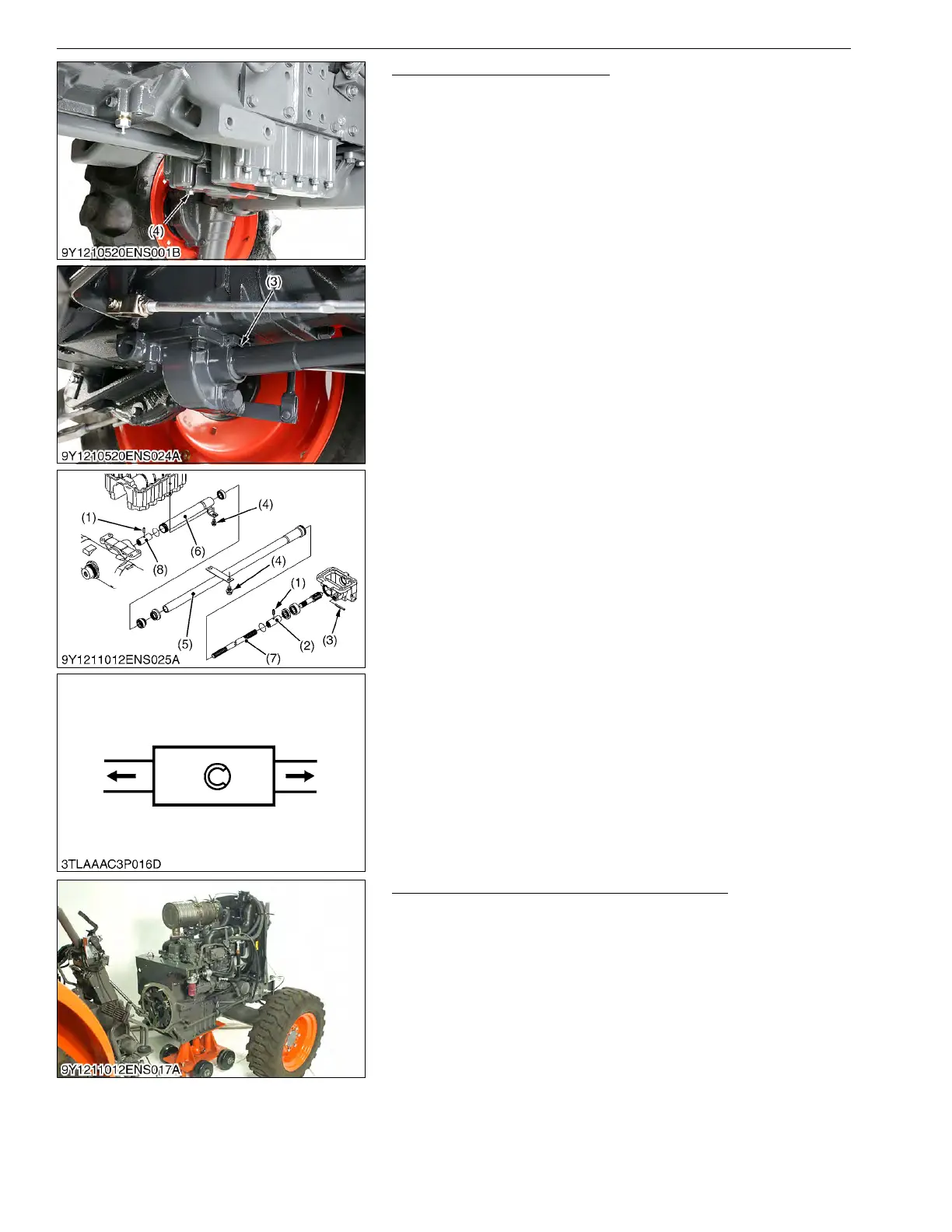

Propeller Shaft (L3301/L3901)
1. Remove the screw (4) then tap out the spring pin (3).
2. Slide the propeller shaft cover 1 (5) to the front and the cover 2
(6) to the rear.
3. Tap out the spring pins (1) and then slide the coupling (2) to the
front and coupling (8) to the rear.
(When reassembling)
• Apply greasing to the splines of the propeller shaft (7) and
pinion shaft.
• Tap in spring pins (1) as shown in the figure.
9Y1211012ENS0112US0
Separating Engine from Clutch Housing Case
1. Place the disassembling stands under the engine and clutch
housing case.
2. Remove the engine and clutch housing mounting screws and
nuts.
3. Separate the engine and clutch housing.
(When reassembling)
• Apply grease to the splines.
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of the engine and clutch housing case.
9Y1211012ENS0026US0
(1) Spring Pin
(2) Coupling
(3) Spring Pin
(4) Screw
(5) Propeller Shaft Cover 1
(6) Propeller Shaft Cover 2
(7) Propeller Shaft
(8) Coupling
