Fuel Tank and Base
1. Disconnect the fuel sensor (4).
2. Disconnect the fuel return line (1).
3. Remove the fuel tank band (2).
4. Remove the fuel tank (3).
5. Disconnect the connector and hoses from the differential
pressure sensor (6).
6. Disconnect the oil separator (7) from the fuel tank base.
7. Disconnect the fuel reserve tank bracket (8) from the fuel tank
base.
8. Disconnect the fuel pump bracket (9) from the fuel tank base.
9. Remove the fuel tank base (5).

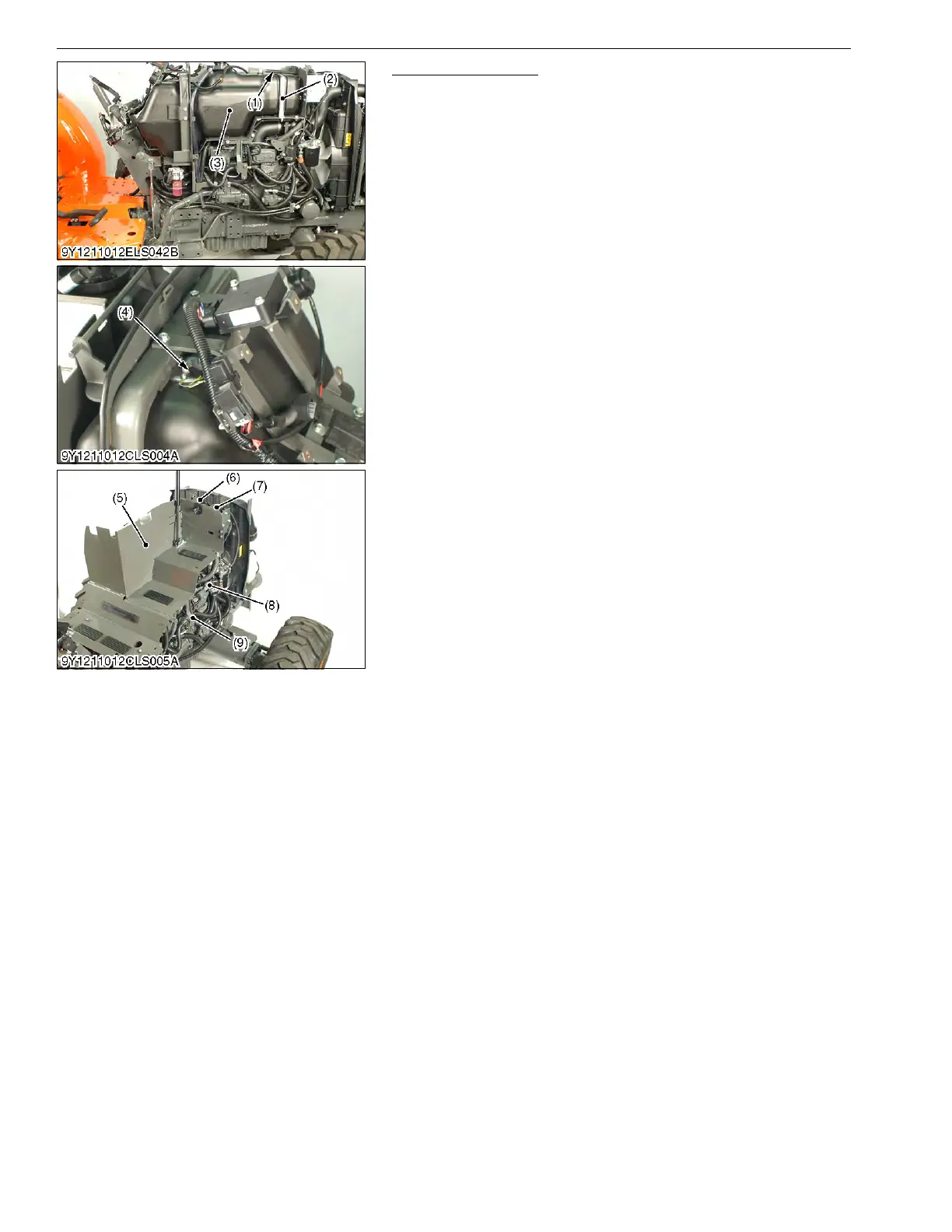

9Y1211012CLS0020US0
(1) Fuel Return Line
(2) Fuel Tank Band
(3) Fuel Tank
(4) Fuel Sensor
(5) Fuel Tank Base
(6) Differential Pressure Sensor
(7) Oil Separator
(8) Fuel Reserve Tank Bracket
(9) Fuel Pump Bracket
