TRANSMISSION
L3301, L3901, L4701, WSM
3-M16
9Y1211012TRM0017US0

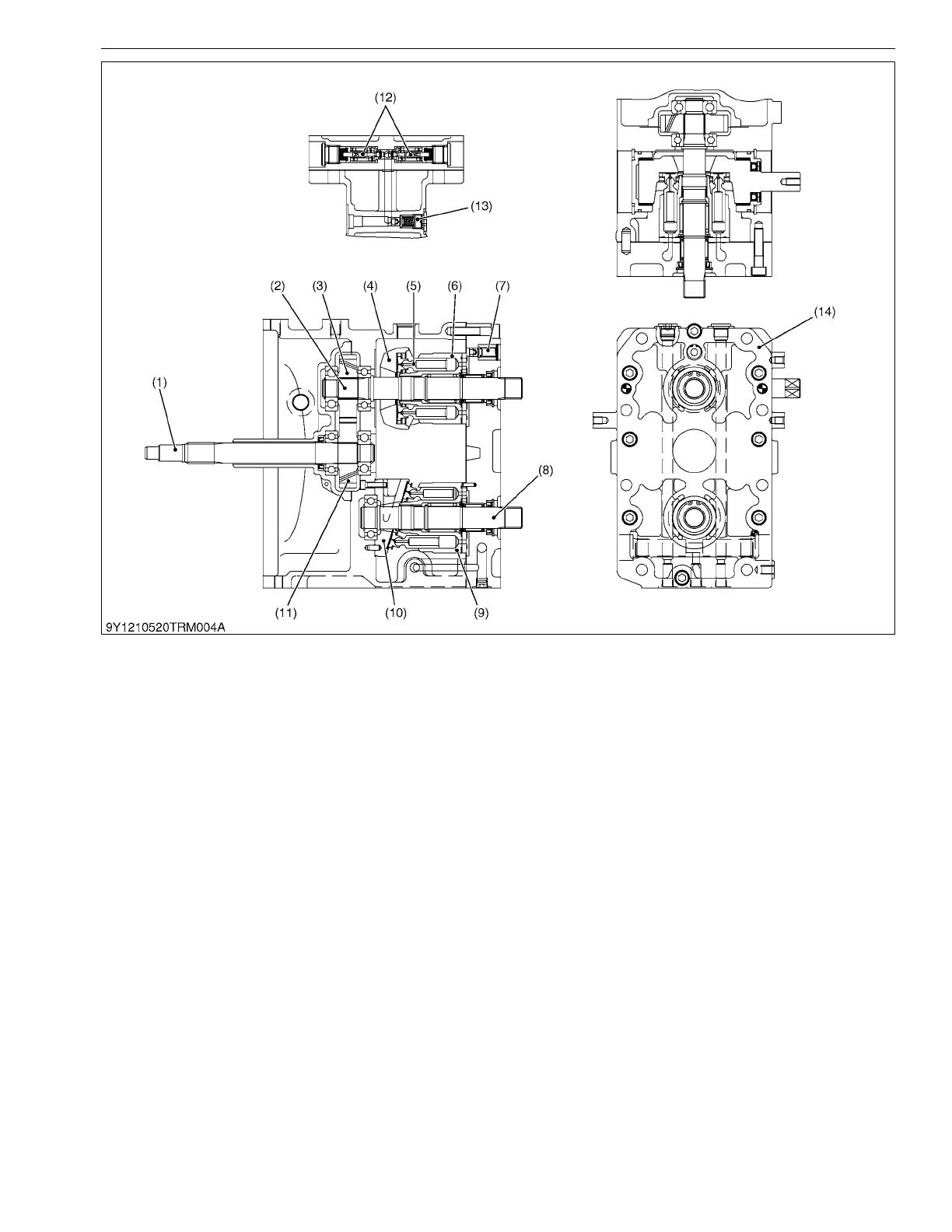

(1) Input Shaft
(2) Pump Shaft
(3) 27T Gear
(4) Variable Swashplate
(5) Piston (Pump)
(6) Cylinder Block (Pump)
(7) Case Relief Valve
(8) Output Shaft (Motor Shaft)
(9) Cylinder Block (Motor)
(10) Fixed Swashplate
(11) 28T Gear
(12) Check and High Pressure
Relief Valve
(13) Charge Relief Valve
(14) Port Block
