TRANSMISSION
L3301, L3901, L4701, WSM
3-M17

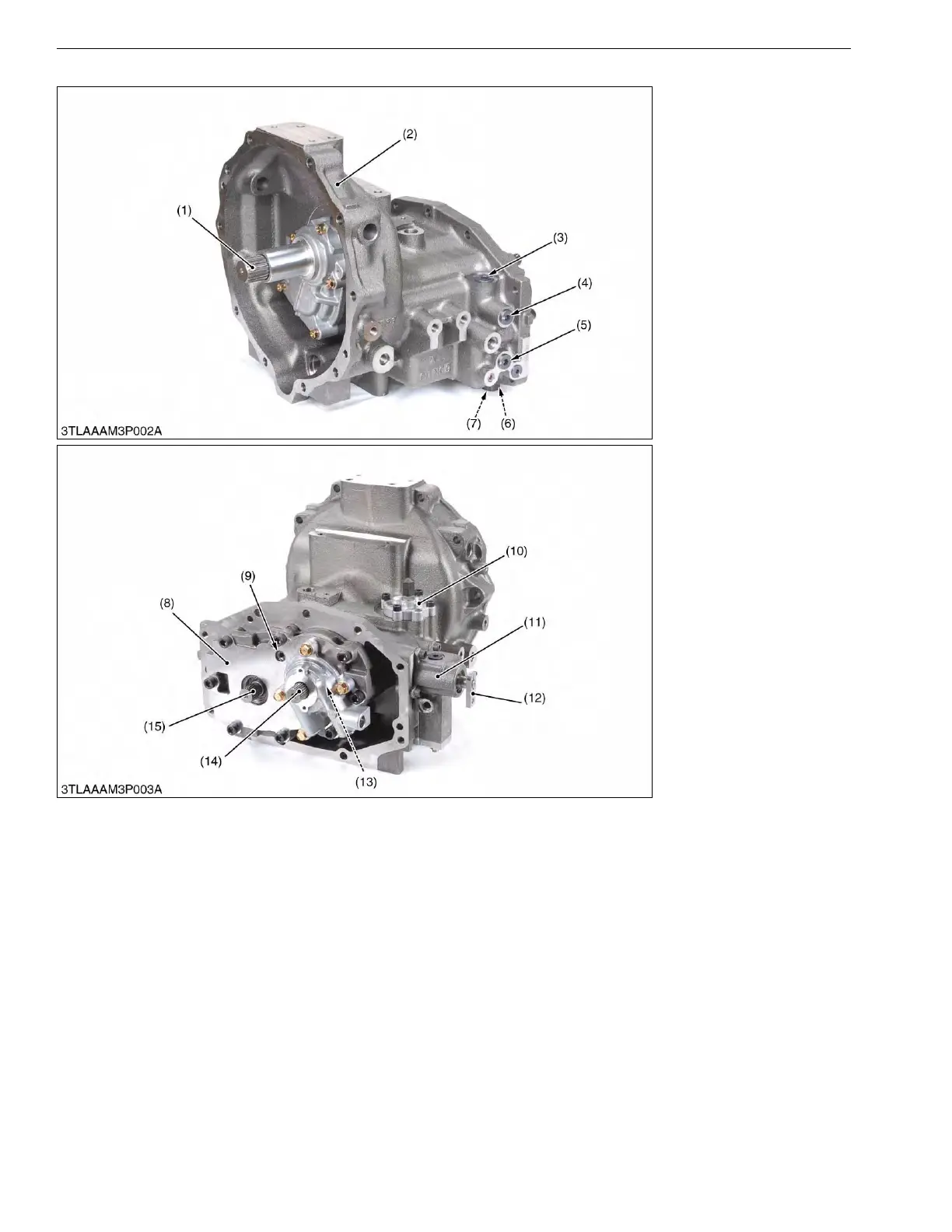

[B] L4701
9Y1211012TRM0018US0
(1) 23T Input Gear Shaft
(2) HST Case (Clutch Housing)
(3) Check and High Pressure
Relief Valve
(4) Check Port (for High
Pressure Relief Valve)
(5) Check Port (for High
Pressure Relief Valve)
(6) Check and High Pressure
Relief Valve
(7) Charge Relief Valve
(8) Port Block Cover
(9) Case Relief Valve
(10) Servo Piston
(11) Servo Regulator
(12) Control Lever
(Connect to HST Pedal)
(13) Charge Pump
(14) Input Shaft (Pump Shaft)
(15) Output Shaft (Motor Shaft)
KiSC issued 09, 2016 A
