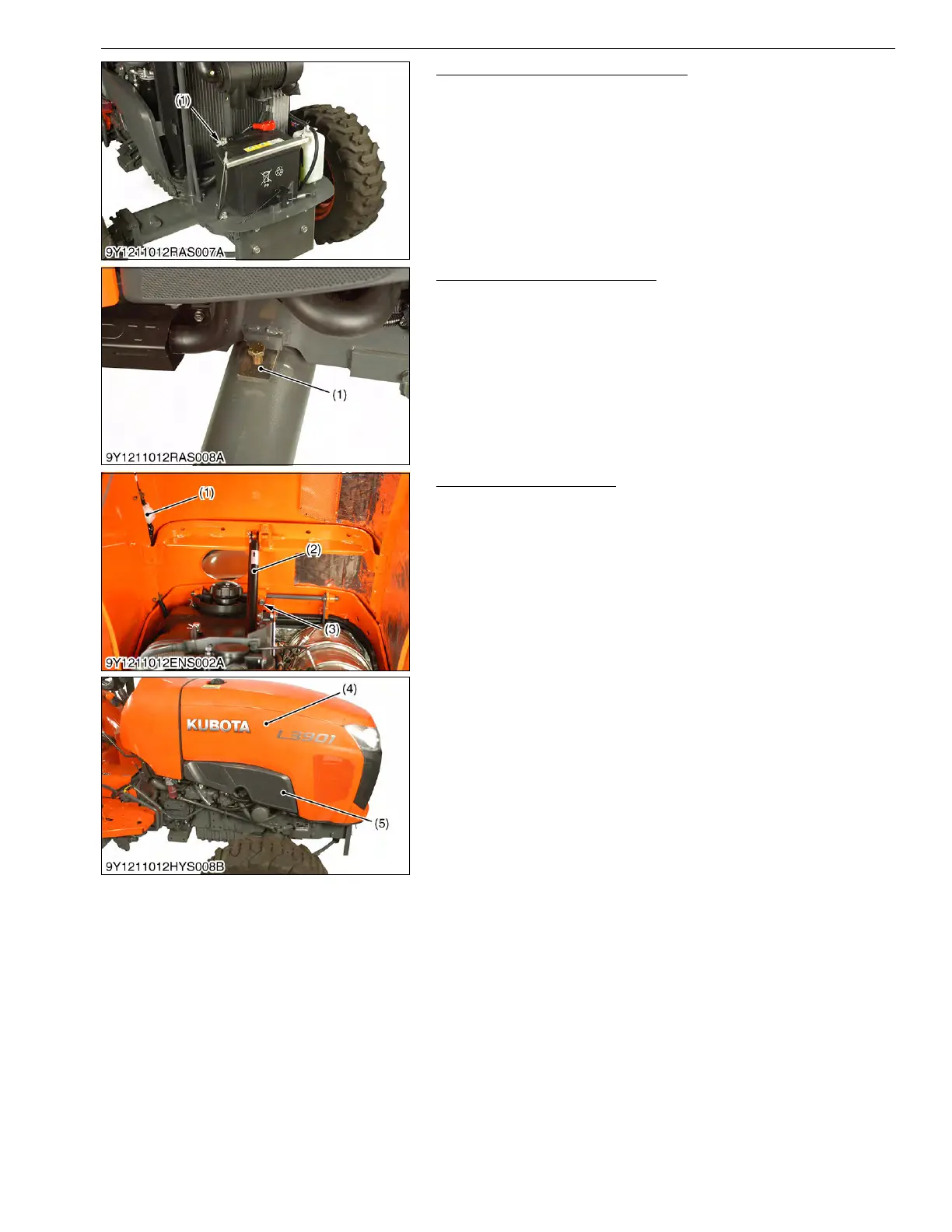

Battery Negative Cable Connector
1. Open bonnet.
2. Disconnect battery negative cable connector (1).
9Y1211012RAS0005US0
Front Axle Rocking Restrictor
1. Install the front axle rocking restrictor (1) (refer to "SPECIAL
TOOLS" (see page G-95.)) to the front axle bracket and chock
wheels.
9Y1211012RAS0006US0
Bonnet and Side Covers
1. Disconnect the headlight connector (1).
2. Remove the damper (2) from the bonnet.
3. Disconnect the bolt (3) from the bonnet.
4. Remove the bonnet (4).
5. Remove the R.H. and L.H. side covers (5).
9Y1211012ENS0014US0
(1) Battery Negative Cable Connector
(1) Front Axle Rocking Restrictor
(1) Headlight Connector
(2) Damper
(3) Bolt
(4) Bonnet
(5) Side Cover
