TRANSMISSION
L3301, L3901, L4701, WSM
3-S28

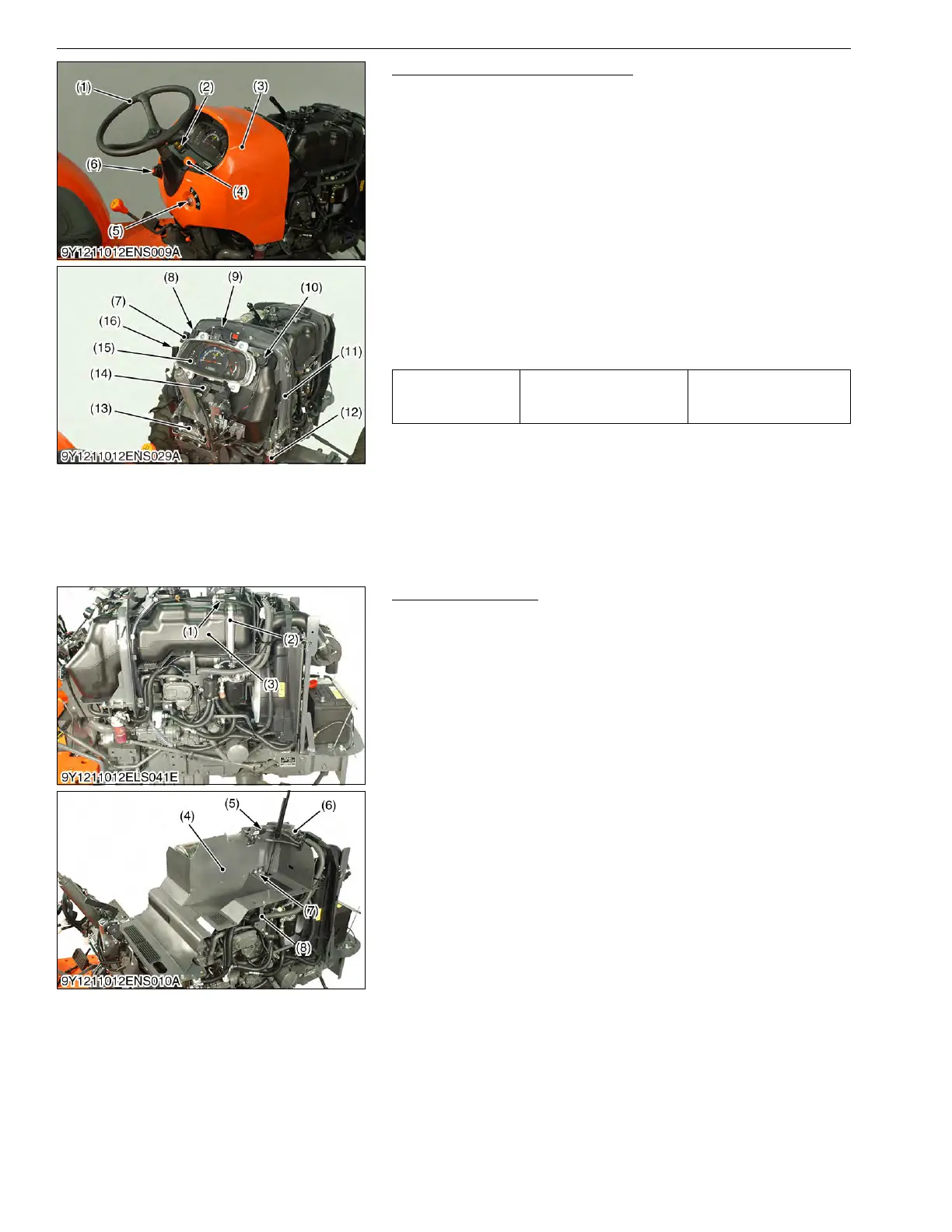

Steering Wheel and Rear Bonnet
1. Remove the steering wheel (1) with a steering wheel puller.
2. Remove the throttle grip (4).
3. Disconnect the main switch (5).
4. Disconnect the combination switch (6).
5. Disconnect the DPF switches (2).
6. Remove the rear bonnet (3).
7. Remove the meter panel (15).
8. Disconnect the DPF buzzer (10).
9. Disconnect the flasher unit (14).
10. Disconnect the starter relay (7), glow relay (8) and CCV heater
relay (16).
11. Disconnect the engine ECU (13).
12. Remove the separator (12).
13. Remove the rear bonnet stay (11).
(When reassembling)
9Y1211012ENS0020US0
Fuel Tank and Base
1. Disconnect the fuel return line (1).
2. Remove the fuel tank band (2).
3. Remove the fuel tank (3).
4. Remove the damper bracket (7).
5. Disconnect the connector and hoses from the differential
pressure sensor (5).
6. Disconnect the oil separator (6) from the fuel tank base.
7. Disconnect the fuel reserve tank bracket (8) from the fuel tank
base.
8. Remove the fuel tank base (4).
9Y1211012ENS0021US0
Tightening torque
Steering wheel mounting
nut
48 to 55 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
(1) Steering Wheel
(2) DPF Switch
(3) Rear Bonnet
(4) Throttle Grip
(5) Main Switch
(6) Combination Switch
(7) Starter Relay
(8) Glow Relay
(9) Main ECU
(10) DPF Buzzer
(11) Rear Bonnet Stay
(12) Separator
(13) Engine ECU
(14) Flasher Unit
(15) Meter Panel
(16) CCV heater relay
(1) Fuel Return Line
(2) Fuel Tank Band
(3) Fuel Tank
(4) Fuel Tank Base
(5) Differential Pressure Sensor
(6) Oil Separator
(7) Damper Bracket
(8) Fuel Reserve Tank Bracket
To Next Page
