wsm L3301 - Page 348

TRANSMISSION
L3301, L3901, L4701, WSM
3-S36

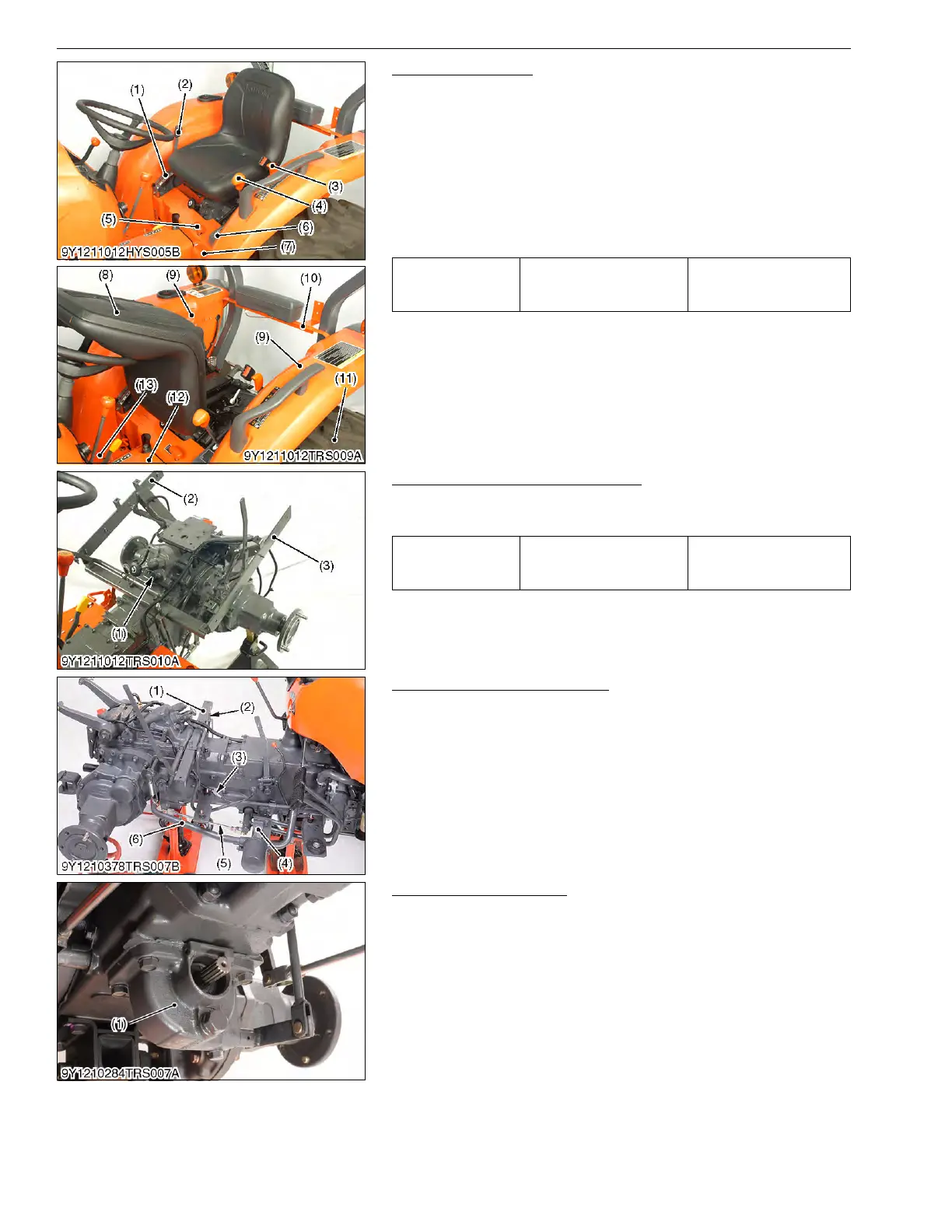

Outer Components
1. Place the disassembling stands under the transmission case.
2. Remove the grips (3), (4), and (5).
3. Remove the lever guides (1) and (6).
4. Remove the center cover (12) and floor sheet cover (7).
5. Remove the rear wheels (11).
6. Remove the fender support (10).
7. Remove the fenders (9) and steps (13).
8. Remove the seat assembly (8).
(When reassembling)
9Y1211012TRS0026US0
Fender Support and Delivery Pipe
1. Remove the fenders supports (2) and (3).
2. Disconnect the delivery pipe (1).
9Y1211012TRS0027US0
Suction Pipe and Brake Rods
1. Remove the R.H. and L.H. brake rods (5).
2. Remove the oil filter base (4) with the filter and suction pipe (6).
3. Disconnect the PTO safety switch connector (3).
4. Remove the front wheel drive lever (2).
5. Remove the fender support (1).
9Y1211012TRS0028US0
Front Wheel Drive Case
1. Remove the front wheel drive case (1).
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to both
faces of the gasket that is to be installed between the front drive
case and the transmission case.
9Y1211012TRS0029US0
Tightening torque
Rear wheel mounting
screw and nut
215 N·m
22 kgf·m
160 lbf·ft
(1) Position Control Lever Guide
(2) Position Control Lever Grip
(3) Range Gear Shift Lever Grip
(4) Synchro-shuttle Shift Lever Grip
(5) Front Wheel Drive Lever Grip
(6) Shift Lever Guide
(7) Floor Sheet Cover
(8) Seat Assembly
(9) Fender
(10) Fender Support
(11) Rear Wheel
(12) Center Cover
(13) Step
Tightening torque
Delivery pipe mounting joint
bolt
49 to 69 N·m
5.0 to7.0 kgf·m
37 to 50 lbf·ft
(1) Delivery Pipe
(2) Fender Support (RH)
(3) Fender Support (LH)
(1) Fender Stay
(2) Front Wheel Drive Lever
(3) PTO Safety Switch Connector
(4) Oil Filter Base
(5) Brake Rod
(6) Suction Pipe
(1) Front Wheel Drive Case
KiSC issued 09, 2016 A
