TRANSMISSION
L3301, L3901, L4701, WSM
3-S40

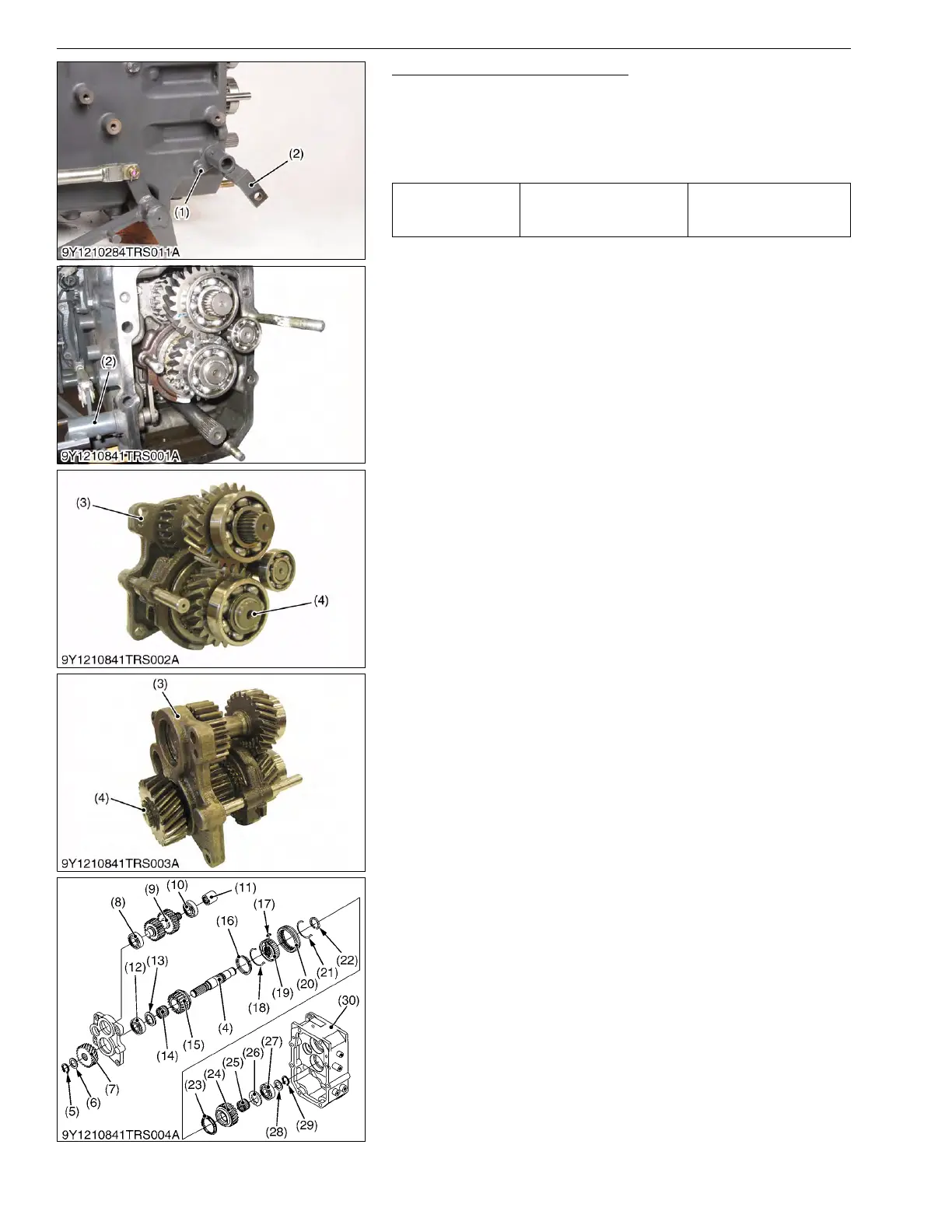

Synchro-shuttle Gear Assembly
1. Remove the shuttle lever stopper screw (1).
2. Remove the bearing holder (3) with synchro-shuttle assembly.
(When reassembling)
• Reinstall the synchronizer keys (17) in the key grooves of the
synchronizer rings (16) firmly.
9Y1211012TRS0037US0
Tightening torque
Bearing holder mounting
screw
48 to 55 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
(1) Screw
(2) Shuttle Lever Arm
(3) Bearing Holder
(4) Shuttle Shaft
(5) External Circlip
(6) Shuttle Washer
(7) 22T Gear
(8) Ball Bearing
(9) 22T-23T Shuttle Gear Shaft
(10) Ball Bearing
(11) Coupling
(12) Ball Bearing
(13) Thrust Collar
(14) Needle Bearing
(15) 21T Gear
(16) Synchronizer Ring
(17) Synchronizer Key
(18) Syncho Key Spring
(19) Shuttle Coupling
(20) Shuttler Shifter
(21) Syncho Key Spring
(22) External Circlip 32
(23) Synchronizer Ring
(24) 22T Gear
(25) Needle Bearing
(26) Thrust Collar
(27) Ball Bearing
(28) Washer
(29) External Circlip
(30) Mid Case
