TRANSMISSION
L3301, L3901, L4701, WSM
3-S41

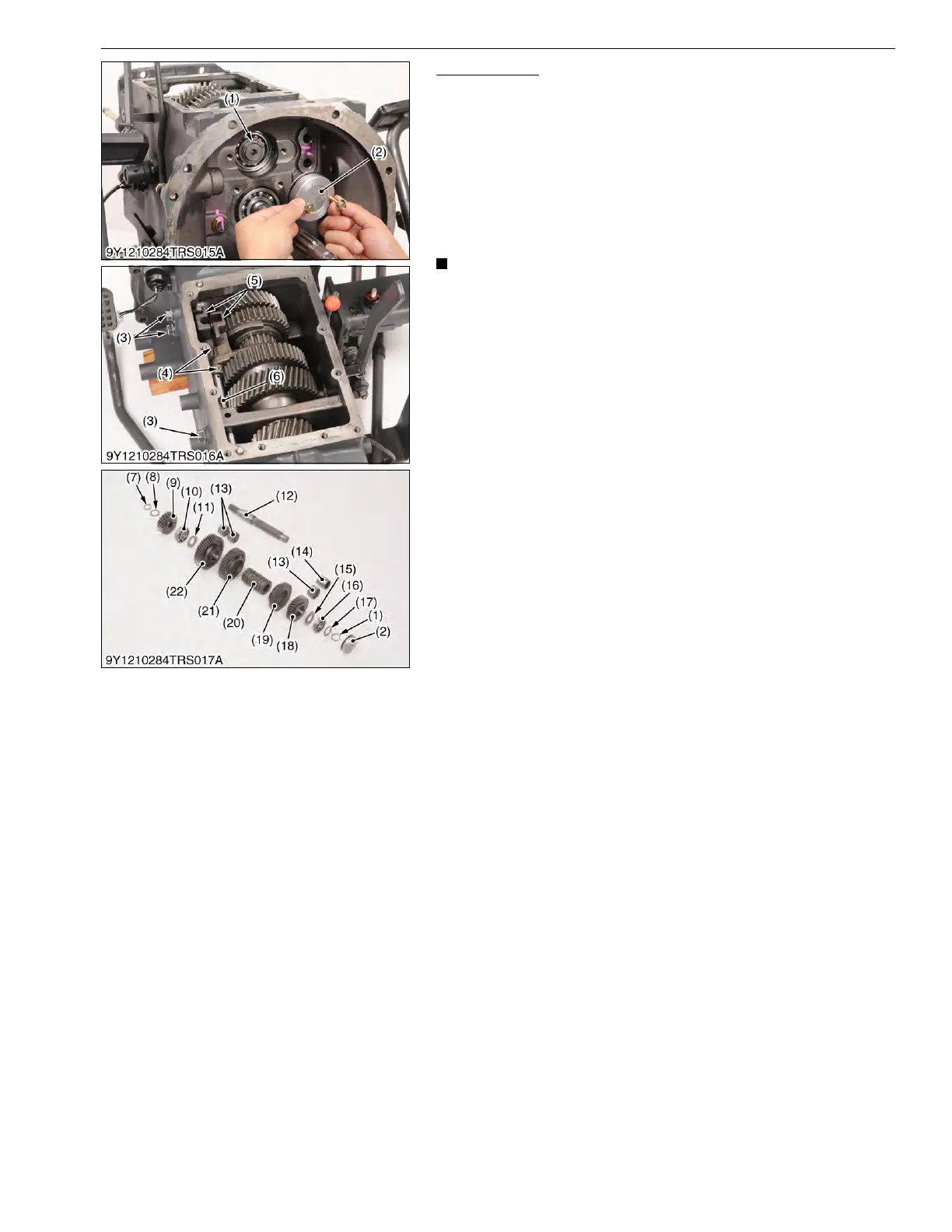

Counter Shaft
1. Remove the bearing cover (2).
2. Screw down the two M6 screws in to bearing cover and pull it
out.
3. Remove the screws (3) and remove the springs and balls.
4. Tap out the spring pins (4).
5. Draw out the fork rod (6) to the front and remove the shift fork
(5).
6. Remove the external snap ring (1).
7. Tap out the counter shaft (12) to the rear.
NOTE
• When drawing out the counter shaft, remove the following
parts one by one: thrust collar (15), 32T gear (18), 39T gear
(19), 45T shift gear (21), 45T gear (22) and thrust collar (11).
(When reassembling)
• Apply molybdenum disulfide (Three Bond 1091 or equivalent) to
the inner circumferential surface of the spline boss.
• Point the oil groove side of thrust collars (11), (15) towards the
gear side.
• Apply small amount of grease for the O-ring.
9Y1211012TRS0038US0
(1) External Snap Ring
(2) Bearing Cover
(3) Screw
(4) Spring Pin
(5) Shift Fork
(6) Fork Rod
(7) External Snap Ring
(8) Thrust Collar
(9) 23T Gear
(10) Ball Bearing
(11) Thrust Collar
(12) Counter Shaft
(13) Needle Bearing
(14) Spline Boss
(15) Thrust Collar
(16) Ball Bearing
(17) Thrust Collar
(18) 32T Gear
(19) 39T Gear
(20) Spline Boss
(21) 45T Shift Gear
(22) 45T Gear
KiSC issued 09, 2016 A
