TRANSMISSION
L3301, L3901, L4701, WSM
3-S56

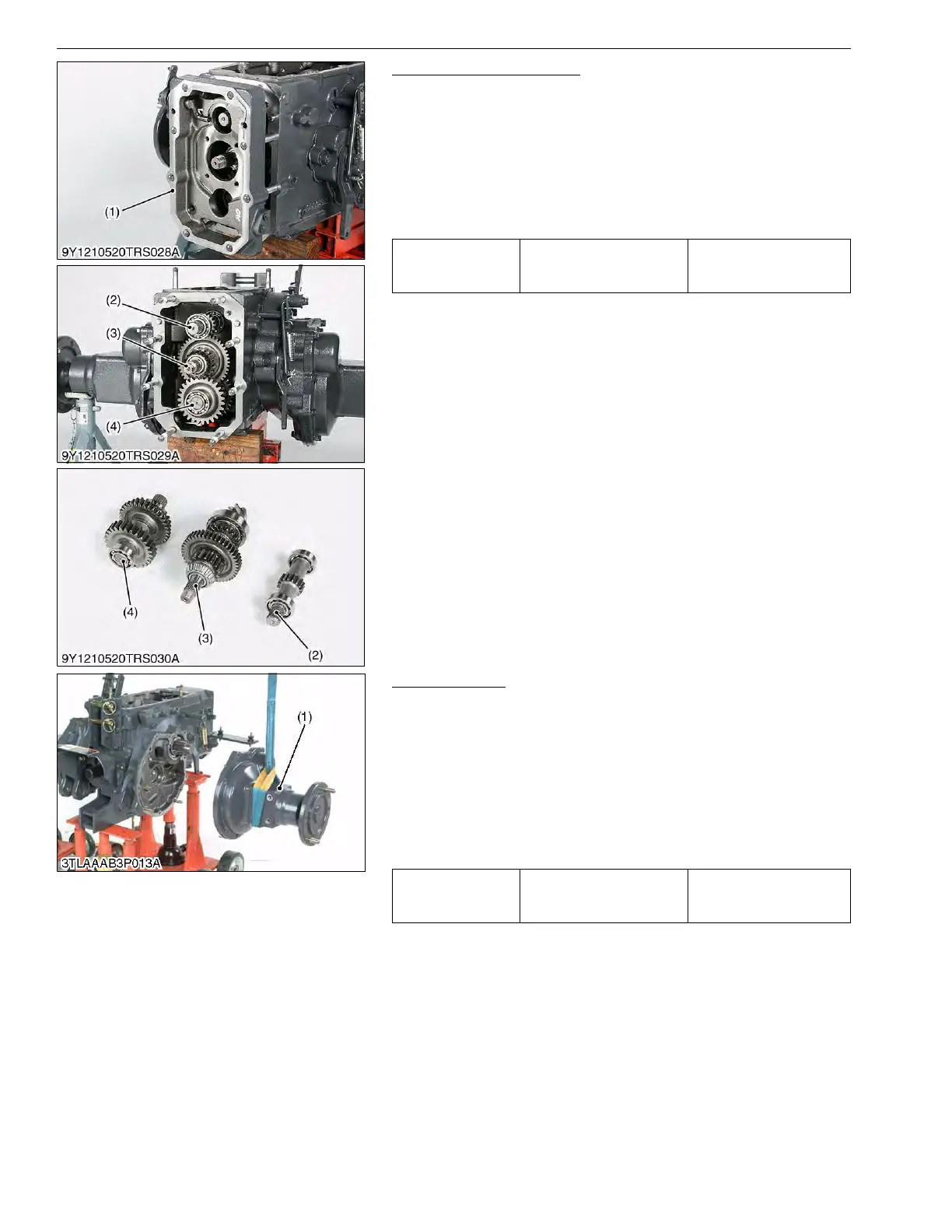

Gear and Shaft Assembly
1. Remove the spacer mounting screws.
2. Separate the spacer (1) from the transmission case.
3. Remove the 16T gear shaft assembly (2).
4. remove the pinion shaft assembly (3) and PTO drive shaft
assembly (4).
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
faces of spacer and transmission case.
9Y1211012TRS0066US0
Rear Axle Case
1. Loosen and remove the rear axle case mounting screws and
nuts.
2. Support the rear axle case (1) with the nylon lift strap and hoist.
3. Separate the rear axle case from brake case.
4. Follow the same procedure as above for the other side.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of the rear axle case and brake case, after eliminating the
water, oil and stuck liquid gasket.
9Y1211012TRS0067US0
Tightening torque Spacer mounting screw
48 to 55 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
(1) Spacer
(2) 16T Gear Shaft Assembly
(3) Pinion Shaft Assembly
(4) PTO Drive Shaft Assembly
Tightening torque
Rear axle case mounting
screws and nuts
48 to 55 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
(1) Rear Axle Case
KiSC issued 09, 2016 A
