TRANSMISSION
L3301, L3901, L4701, WSM
3-S57

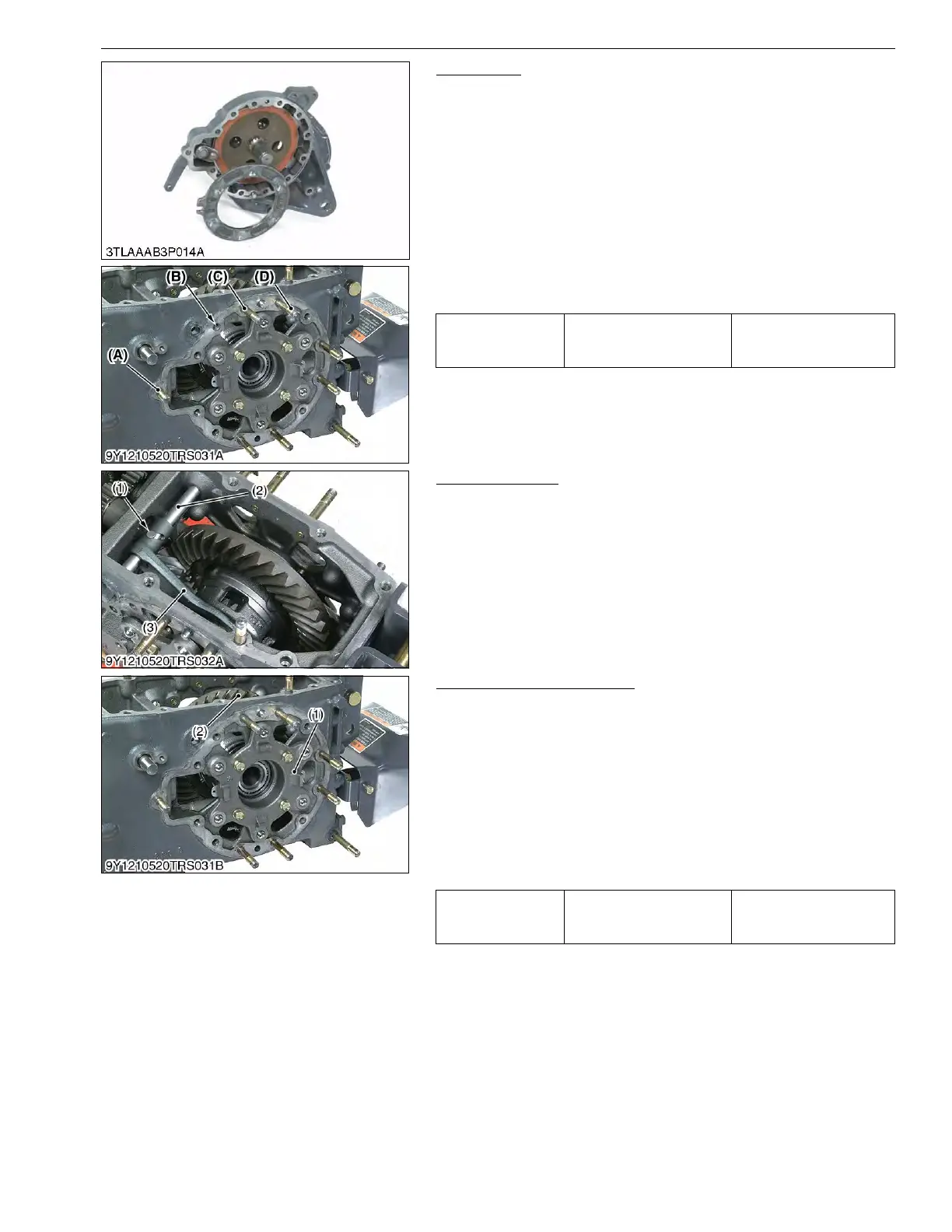

Brake Case
1. Loosen the remove the brake case mounting screws and nut.
2. Separate the brake case, tapping the brake case lever lightly.
(When reassembling)
• Apply grease to the brake ball seats. (Do not grease
excessively.)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of the brake case and transmission case, after eliminating
the water, oil and stuck liquid gasket.
• Before installing the brake case to the transmission case, install
the cam plate to the transmission case.
• Apply liquid lock (Three Bond 1324 or equivalent) to (A), (B),
(C), (D) portions of the stud bolts, R.H. and L.H..
9Y1211012TRS0068US0
Differential Lock
1. Remove the clevis pin (1).
2. Draw out the differential lock fork shaft (2).
3. Remove the shift fork (3).
9Y1211012TRS0069US0
Differential Gear Assembly
1. Remove the differential bearing case (1) mounting screws.
2. Remove the differential bearing case (1), noting the number of
left and right shims.
3. Remove the differential gear assembly (2) from transmission
case.
(When reassembling)
• Use same number of shim as before disassembling.
• Replace the left and right bearing cases on the same sides as
before.
• Apply grease to ball and ball seats.
9Y1211012TRS0070US0
Tightening torque
Brake case mounting stud
bolts
39 to 45 N·m
3.5 to 5.0 kgf·m
26 to 36 lbf·ft
(1) Clevis Pin
(2) Fork Shaft
(3) Shift Fork
Tightening torque
Differential bearing case
mounting screw
48 to 55 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
(1) Differential Bearing Case (2) Differential Gear Assembly
KiSC issued 09, 2016 A
