TRANSMISSION
L3301, L3901, L4701, WSM
3-S58

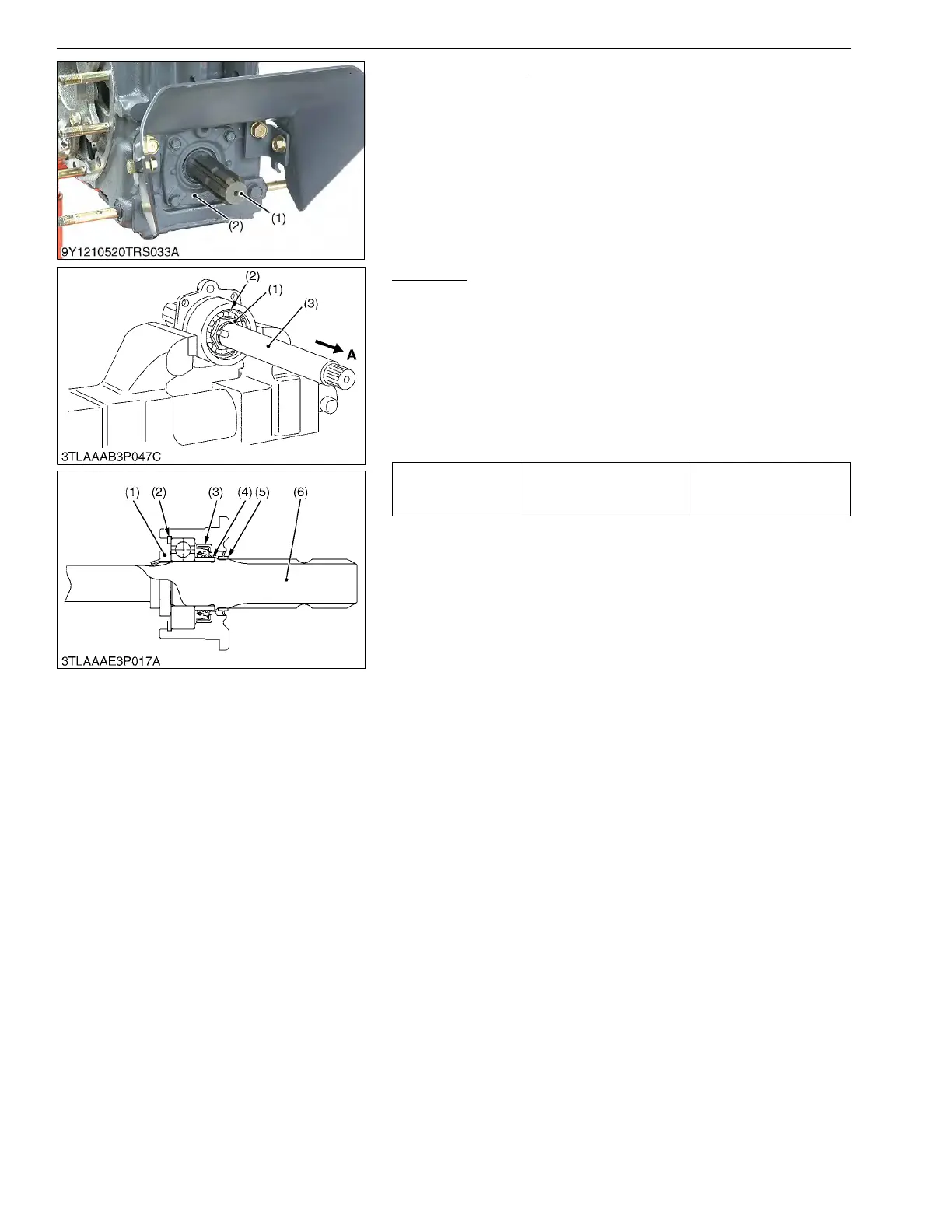

PTO Bearing Case
1. Remove the bearing case (2) mounting screws.
2. Remove the PTO shaft (1) with bearing case.
9Y1211012TRS0071US0
PTO Shaft
1. Remove the internal cir-clip (2).
2. Tap out the PTO shaft (6) to the front "A".
(When reassembling)
• In the lock nut (1) was removed, replace a new one, and after
tightening it to the specified torque, be sure to stake it firmly.
• Install the slinger (5) firmly.
• After applying liquid gasket (Three Bond 1141 or equivalent) to
joint face of the collar (4), and insert the collar to PTO shaft.
• Apply grease to oil seal (3) and install it, noting its direction.
9Y1211012TRS0072US0
(1) PTO Shaft (2) PTO Bearing Case
Tightening torque Lock nut
150 to 190 N·m
15 to 20 kgf·m
110 to 140 lbf·ft
(1) Lock Nut
(2) Internal Cir-clip
(3) Oil Seal
(4) Collar
(5) Slinger
(6) PTO Shaft
To Next Page
