TRANSMISSION
L3301, L3901, L4701, WSM
3-S63

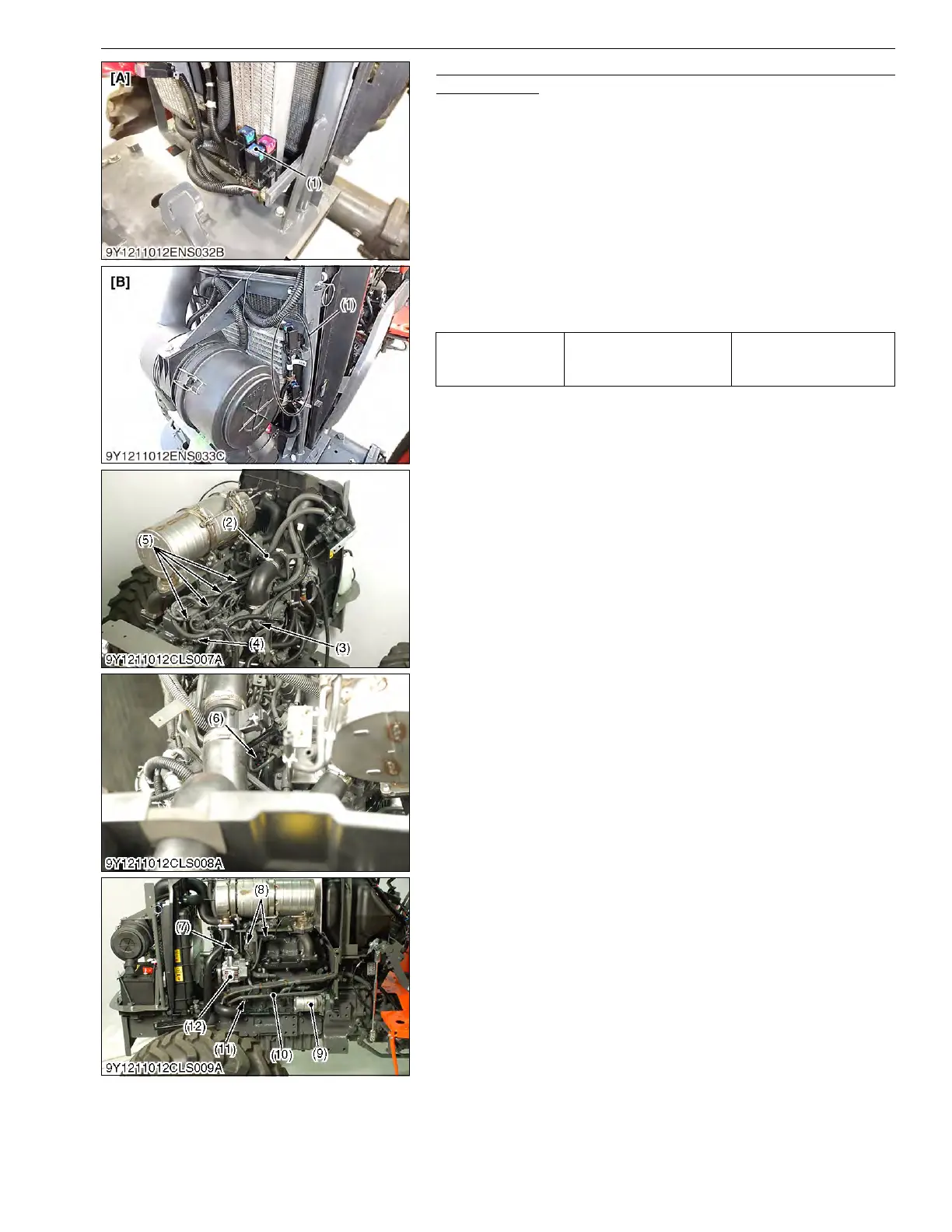

Hydraulic Pipes and Electrical Wiring (Under Fuel Tank Base
and Left Side)
1. Disconnect the injector connectors (5).
2. Disconnect the glow plug (4).
3. Disconnect the EGR valve (3) connector.
4. Disconnect the air flow sensor (2) connector.
5. Disconnect the rail pressure sensor (6) connector.
6. Remove the slow blow fuses (1).
7. Disconnect the coolant temperature sensor (7) connector.
8. Disconnect the DPF temperature sensors (8).
9. Disconnect the alternator (12).
10. Disconnect the starter (9).
11. Disconnect the oil switch (11).
12. Remove the HST return pipe (10).
9Y1211012CLS0008US0
Tightening torque HST return pipe bolt
79.2 to 88.2 N·m
8.1 to 9.0 kgf·m
58.4 to 65.1 lbf·ft
(1) Slow Blow Fuse
(2) Air Flow Sensor
(3) EGR Valve
(4) Glow Plug
(5) Injector Connector
(6) Rail Pressure Sensor
(7) Coolant Temperature Sensor
(8) DPF Temperature Sensor
(9) Starter
(10) HST Return Pipe
(11) Oil Switch
(12) Alternator
(13) HST Return Pipe
[A] L3301/L3901
[B] L4701
