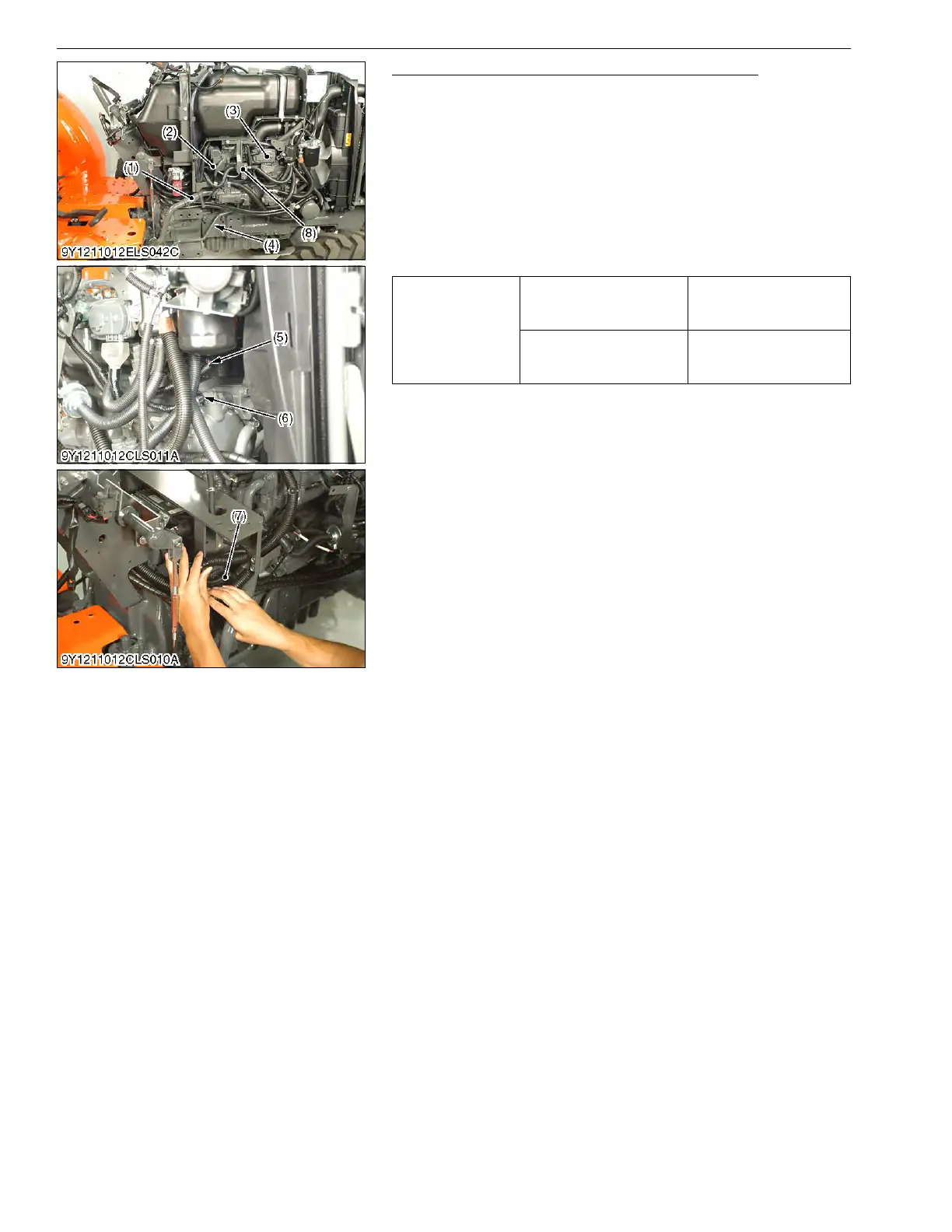

Hydraulic Pipes and Electrical Wiring (Right Side)
1. Remove the suction hose (1).
2. Remove the delivery pipe (4).
3. Remove the EGR valve (2) connector.
4. Disconnect the crank position sensor (7).
5. Disconnect the fuel pump (8).
6. Disconnect the intake throttle valve (3).
7. Disconnect the camshaft position sensor (6).
8. Disconnect the rail pressure sensor (5).
9. Disconnect supply pump connector.
(When reassembling)
9Y1211012CLS0009US0
Tightening torque
Delivery pipe mounting
screw
18 to 20 N·m
1.8 to 2.0 kgf·m
13 to 15 lbf·ft
Delivery pipe joint bolt
49.0 to 69.0 N·m
5.0 to 7.0 kgf·m
37 to 50 lbf·ft
(1) Suction Hose
(2) EGR Valve
(3) Intake Throttle Valve
(4) Delivery Pipe
(5) Rail Pressure Sensor
(6) Camshaft Position Sensor
(7) Crankshaft Position Sensor
(8) Fuel Pump
To Next Page
