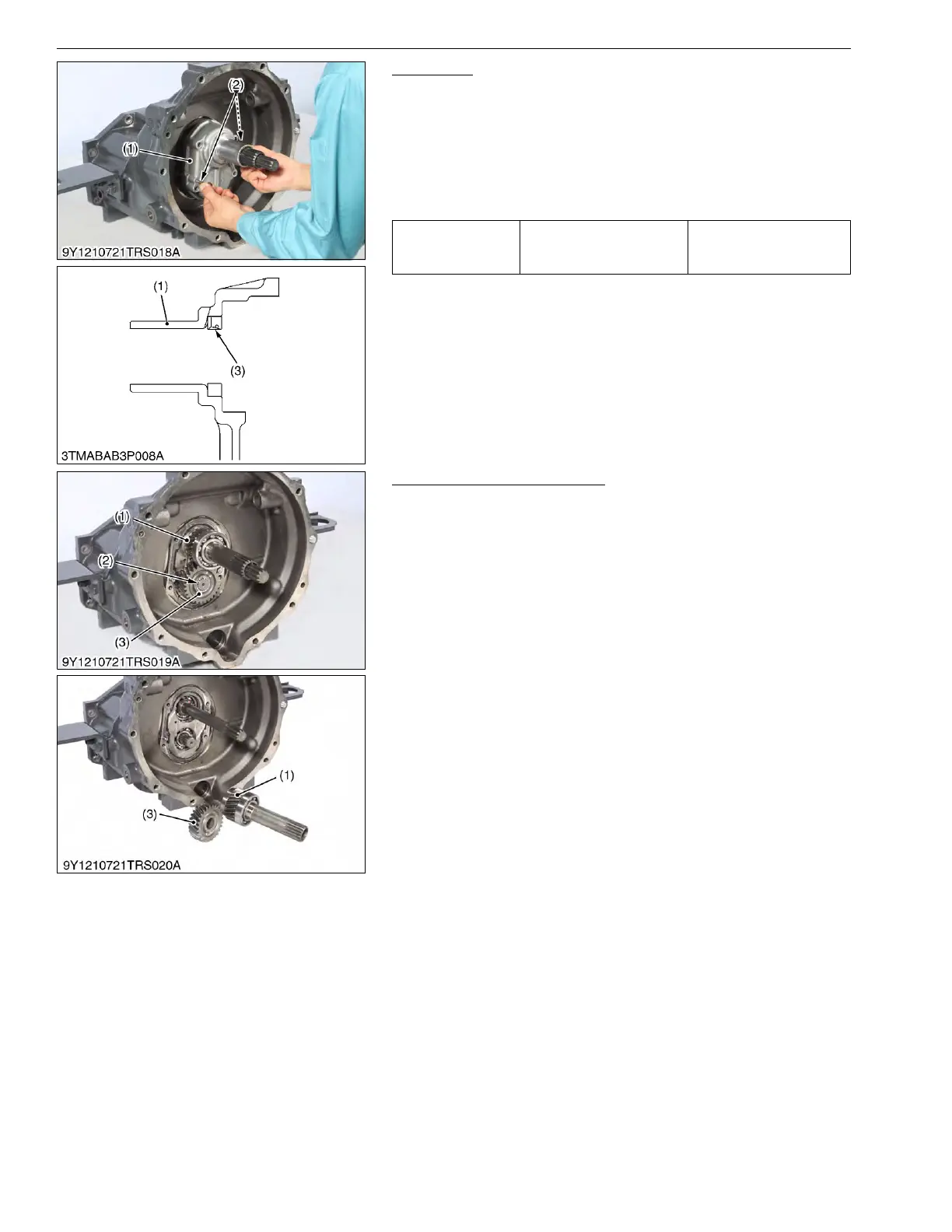

Shaft Case
1. Remove the shaft case mounting screws.
2. Remove the shaft case (1) by using jack screw M6.
(When reassembling)
• Replace the gasket with a new one.
(When replacing oil seal in shaft case)
• Install the oil seal (3) as shown in the figure, noting its direction.
• Apply grease to the oil seal (3).
9Y1211012TRS0090US0
24T Gear Shaft and 27T Gear
1. Remove the 24T gear shaft (1).
2. Remove the external snap ring (2) and 27T gear (3).
(When reassembling)
• Install the parts to the original positions.
9Y1211012TRS0091US0
Tightening torque Shaft case mounting screw
23.5 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
(1) Shaft Case
(2) Jack Screw M6
(3) Oil Seal
(1) 24T Gear Shaft
(2) External Snap Ring
(3) 27T Gear
