Clutch Housing Bearing Holder

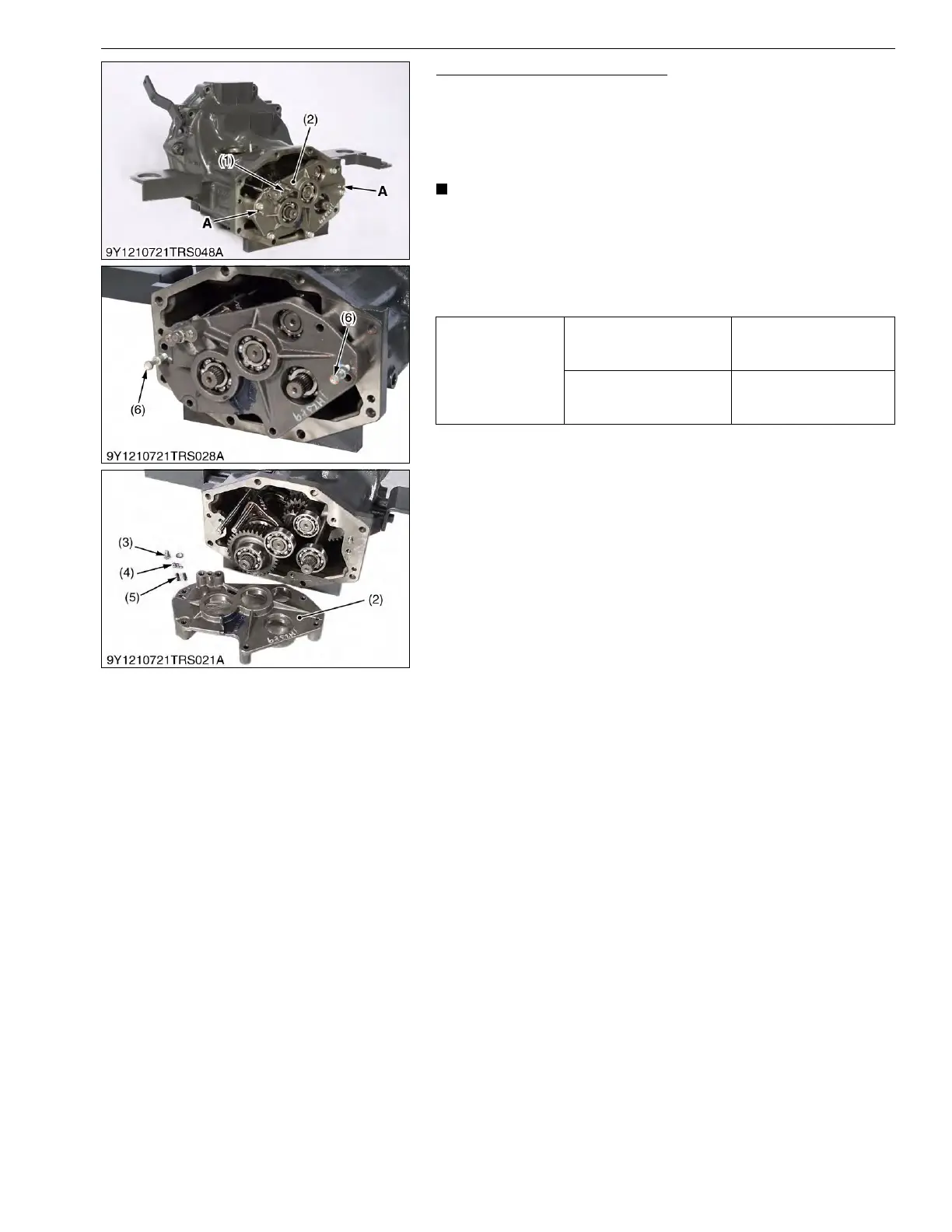

1. Remove clutch housing bearing holder (2) mounting screws.
2. Remove three interlock balls (4) after removing stopper screw
(1).
3. Pull out clutch housing bearing holder (2) by using two jack
screws (6) M8 to the hole "A".
NOTE
• Be careful not to fly out interlock balls (4) and springs (5)
when pull out bearing holder (2).
(When reassembling)
• Install three interlock balls (4) with a small amount of grease to
clutch housing bearing holder (2) after setting the shift forks and
shift rods to neutral position.
9Y1211012TRS0092US0
Tightening torque
Clutch housing bearing
holder mounting screws
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
Stopper screw
34.3 to 44.1 N·m
3.5 to 4.5 kgf·m
25.3 to 32.6 lbf·ft
(1) Stopper Screw
(2) Clutch Housing Bearing Holder
(3) Shift Lock Ball
(4) Interlock Ball
(5) Spring
(6) Jack Screw
A: Portion to use jack screw
