TRANSMISSION
L3301, L3901, L4701, WSM
3-S76

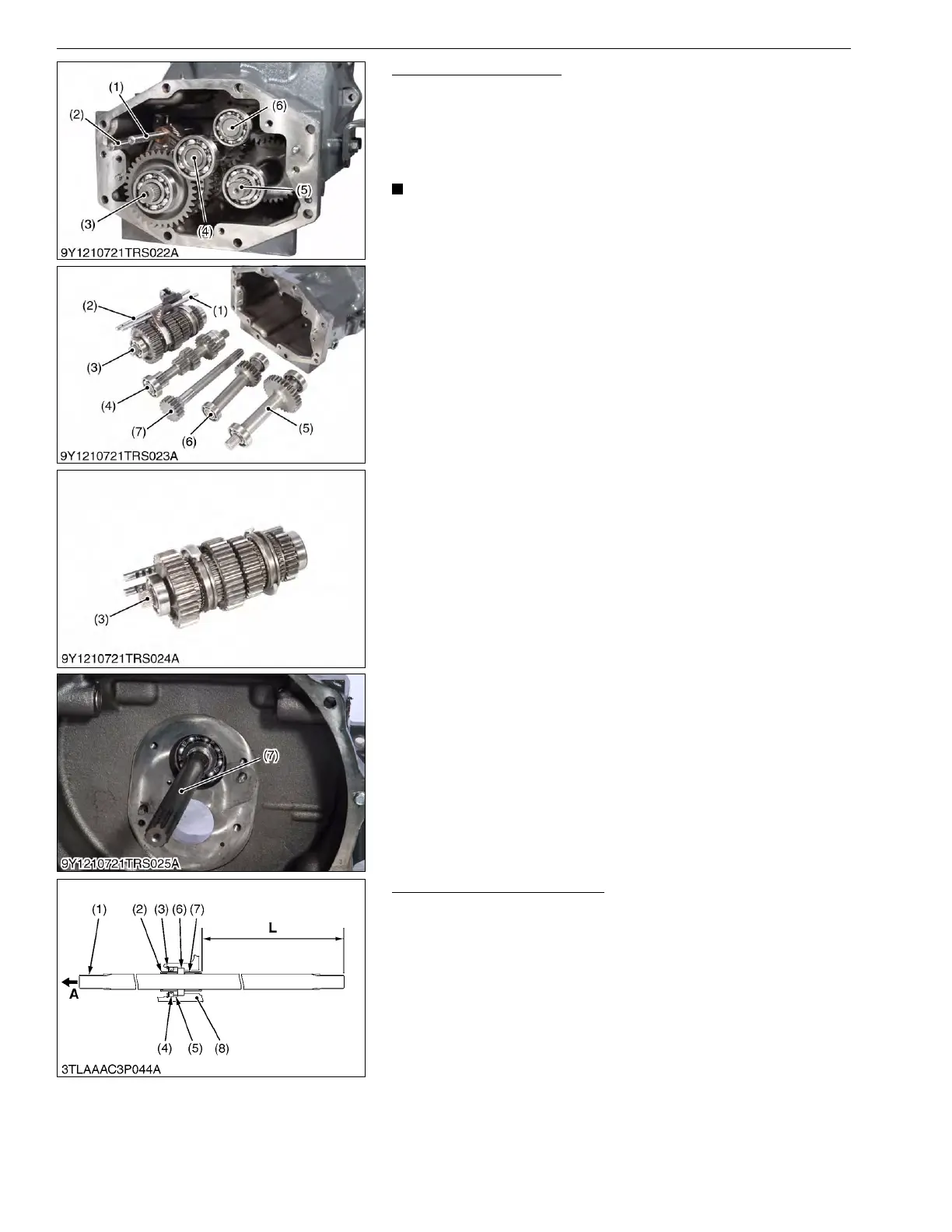

Gear Shaft Assemblies
1. Remove shift fork assembly (1), (2) together with main gear
shaft assembly (3).
2. Remove counter gear shaft assembly (4), the PTO counter gear
shaft assembly (5), the PTO gear shaft assembly (6), and then
the main shaft (7).
NOTE
• To easily remove the gear shaft assembly, tap lightly a
tool, through small holes from front inside wall of clutch
housing.
9Y1211012TRS0093US0
Front Axle Drive Shaft (4WD)
1. Pull out the front axle drive shaft (1) from the rear.
(When reassembling)
• Install the bearing (6), the spacer (5), the oil seal (4) and the
internal snap ring to the clutch housing (8).
• Install the sleeve (7) to the front propeller shaft with dimension
shown on the figure, then install the front propeller shaft from
the rear.
• Install the sleeve (2) by using a rear propeller shaft tool.
9Y1211012TRS0094US0
(1) Shift Fork Assembly (1-2)
(2) Shift Fork Assembly (3-4)
(3) Main Gear Shaft Assembly
(4) Counter Gear Shaft Assembly
(5) PTO Counter Gear Shaft Assembly
(6) PTO Gear Shaft Assembly
(7) Main Shaft
(1) Front Axle Drive Shaft
(2) Sleeve
(3) Internal Snap Ring
(4) Oil Seal
(5) Spacer
(6) Bearing
(7) Sleeve
(8) Clutch Housing
A: To Front Propeller Shaft
L: 538 mm (21.182 in.)
KiSC issued 09, 2016 A
