TRANSMISSION
L3301, L3901, L4701, WSM
3-S94
[B] Mid Case

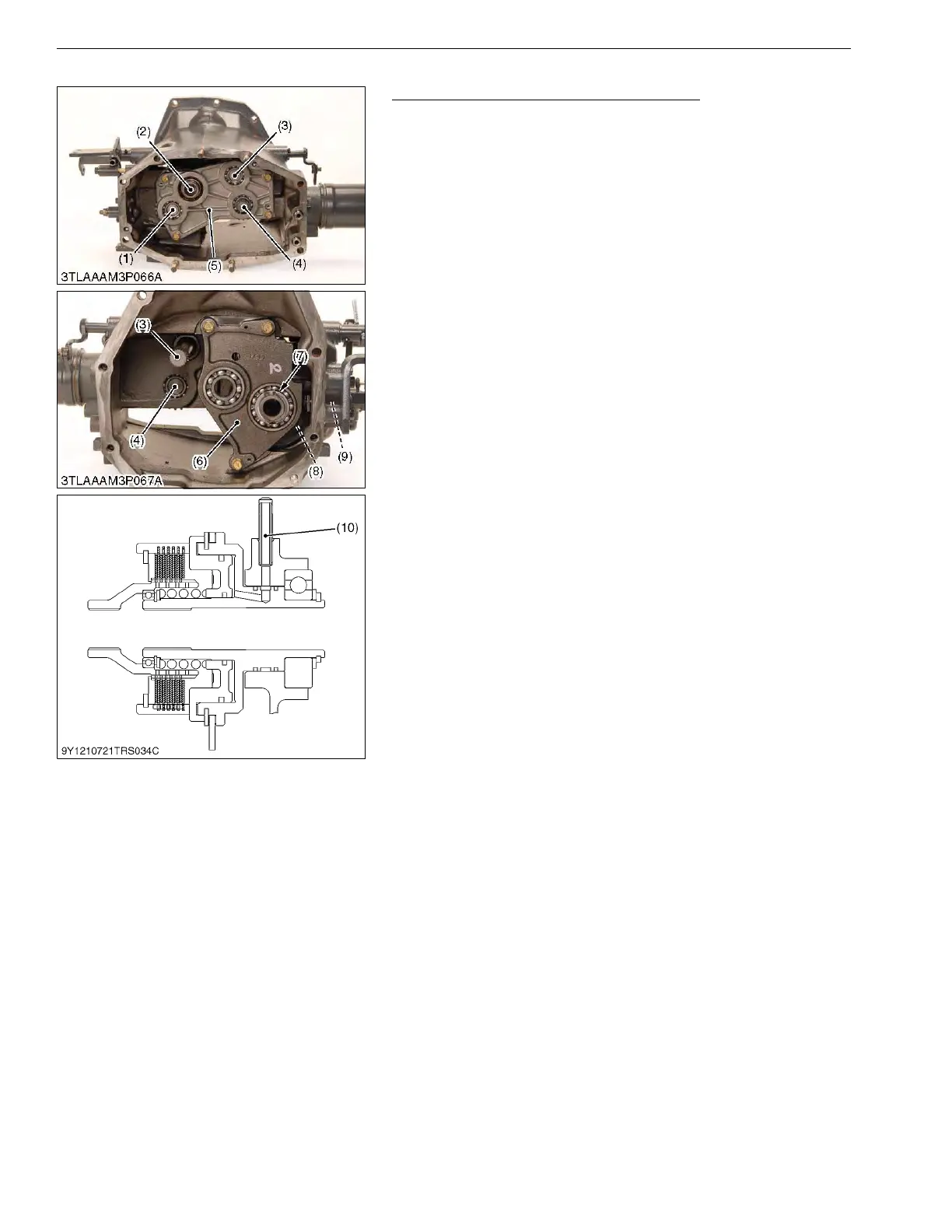

Mid Case Bearing Holder and Gear Shafts
1. Remove the bearing holder mounting bolts.
2. Remove the mid case bearing holder (5).
3. Remove the shafts (1), (2), (3), (4).
4. Remove the PTO clutch valve (9) from the mid case.
5. Remove the independent PTO bearing holder mounting bolts.
6. Remove the independent PTO clutch bearing holder (6) with
PTO clutch pack (8).
(When reassembling)
• Replace the oil pipe with a new one.
9Y1211012TRS0123US0
(1) 25T PTO Counter Shaft
(2) 15T PTO Gear Shaft
(3) 18T Counter Shaft
(4) 25T Gear Shaft
(5) Mid Case Bearing Holder
(6) PTO Clutch Bearing Holder
(7) Bearing
(8) PTO Clutch Pack
(9) PTO Clutch Valve
(10) Oil Pipe
