TRANSMISSION
L3301, L3901, L4701, WSM
3-S95

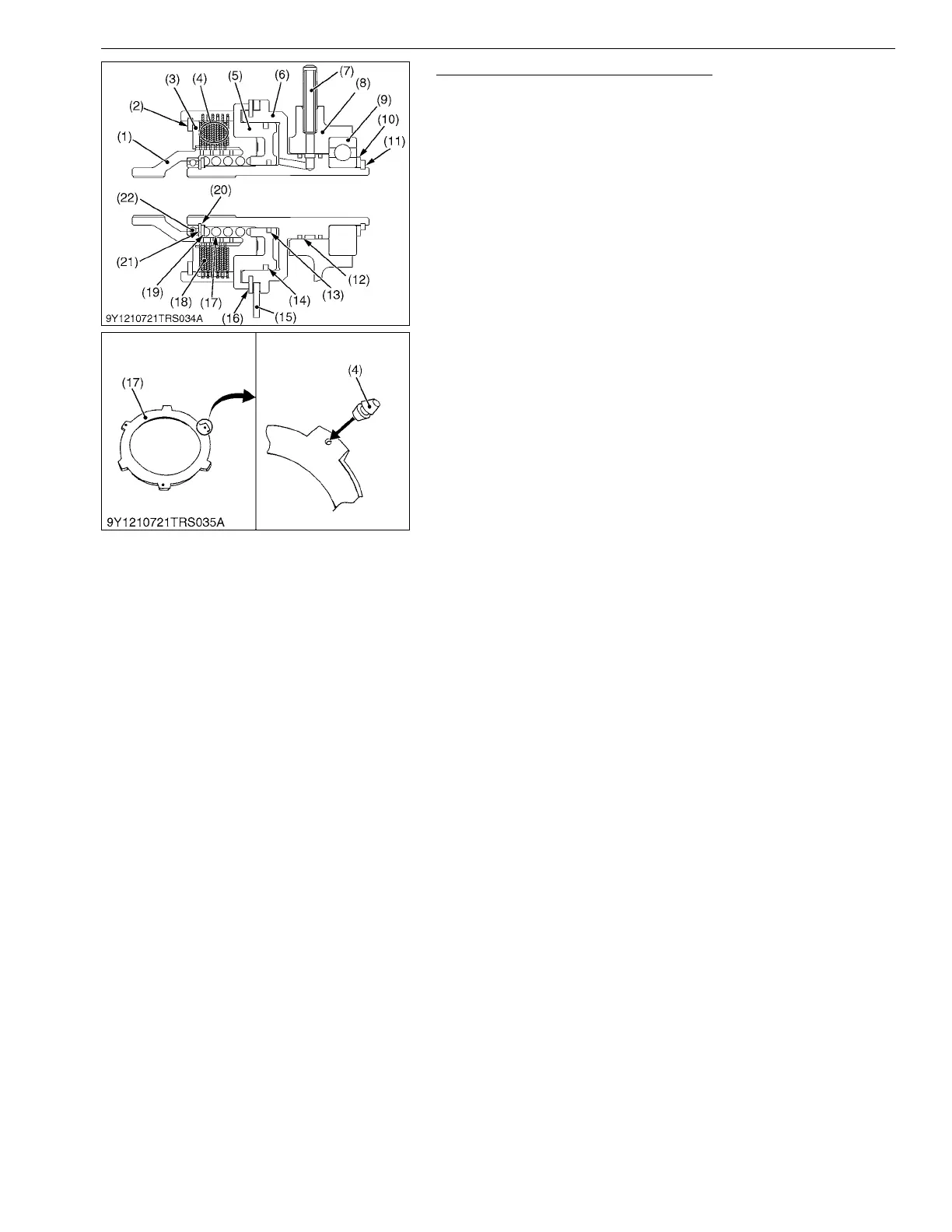

Disassembling PTO Clutch Assembly
1. Remove the snap ring (2) and the back plate (3).
2. Remove the clutch hub (1), the plates (17) and the disks (18)
from the PTO clutch case (6).
3. Remove the cir-clip (11).
4. Remove the hydraulic pipe (7) from the bearing case (8).
(When reassembling)
• Install the clutch disks (18) and plates (17) mutually.
• Do not confuse the back plate (3) and the plates (17).
The back plate (3) is thicker than the plates (17).
• Assemble the rubbers (4) portion of the plates (17) are same
positions while assembling them.
• Replace the seal ring with new one.
9Y1211012TRS0124US0
(1) Clutch Hub
(2) Snap Ring
(3) Back Plate
(4) Rubber
(5) Piston
(6) PTO Clutch Case
(7) Hydraulic Pipe
(8) Bearing Case
(9) Ball Bearing
(10) Plate
(11) Cir-clip
(12) Seal Ring
(13) Inner D-ring
(14) Outer D-ring
(15) Brake disk
(16) Brake plate
(17) Plate
(18) Disk
(19) Washer
(20) Snap Ring
(21) Shim
(22) Ball Bearing
