REAR AXLE
L3301, L3901, L4701, WSM
4-S7

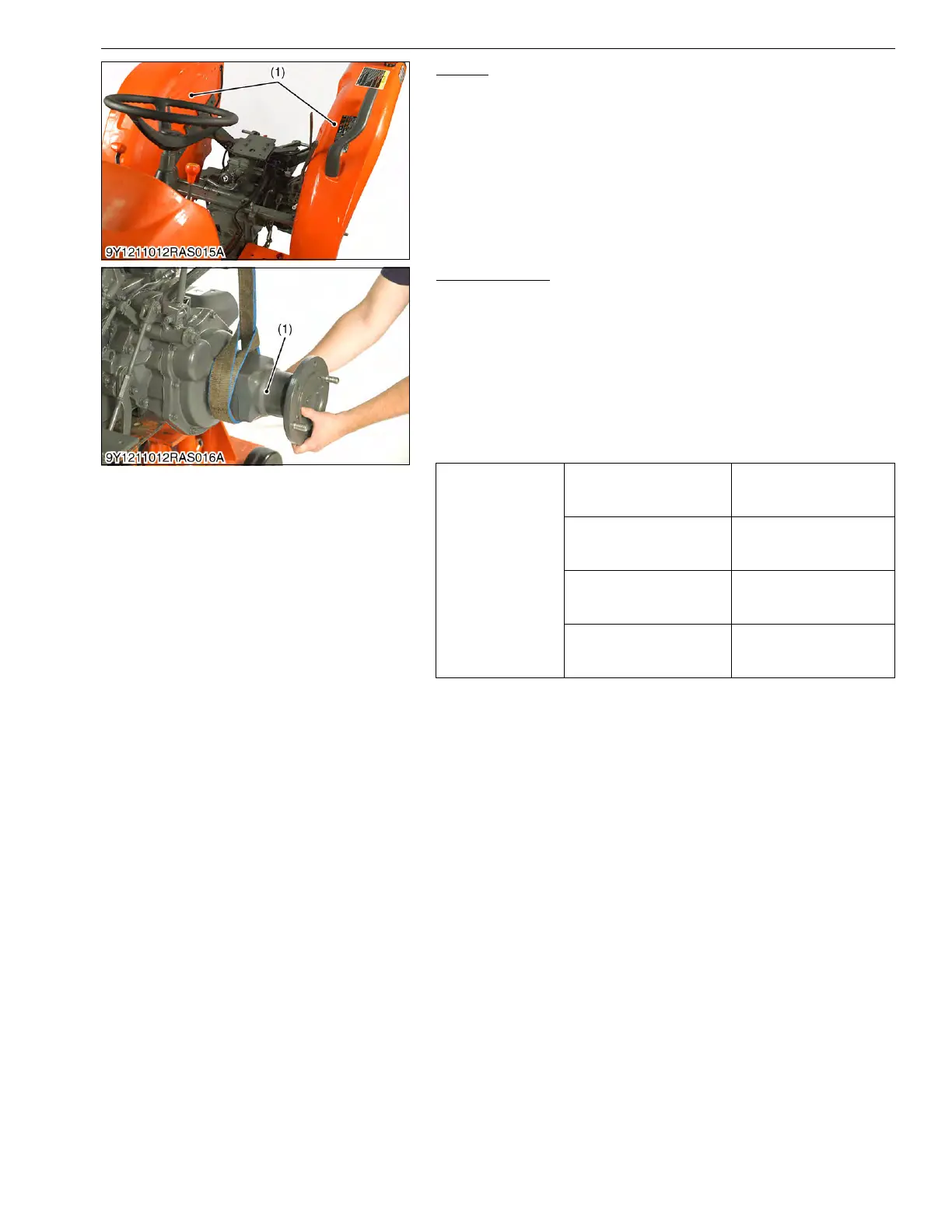

Fender
1. Remove the fenders (1).
9Y1211012RAS0011US0
Rear Axle Case
1. Loosen and remove the rear axle case mounting screws and
nuts.
2. Support the rear axle case (1) with the nylon lift strap and hoist.
3. Separate the rear axle case from brake case.
4. Follow the same procedure as above for the other side.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of the rear axle case and brake case, after eliminating the
water, oil and stuck liquid gasket.
9Y1211012RAS0012US0
(1) Fender
Tightening torque
Rear axle case mounting
M10 bolts
48.0 to 55.9 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
Rear axle case mounting
M10 nuts (L3301/L3901)
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
Rear axle case mounting
M10 nuts (L4701)
60.8 to 70.6 N·m
6.2 to 7.2 kgf·m
45 to 52 lbf·ft
Rear axle case mounting
M12 bolts and nuts
(L4701 only)
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
(1) Rear Axle Case
