REAR AXLE
L3301, L3901, L4701, WSM
4-S6

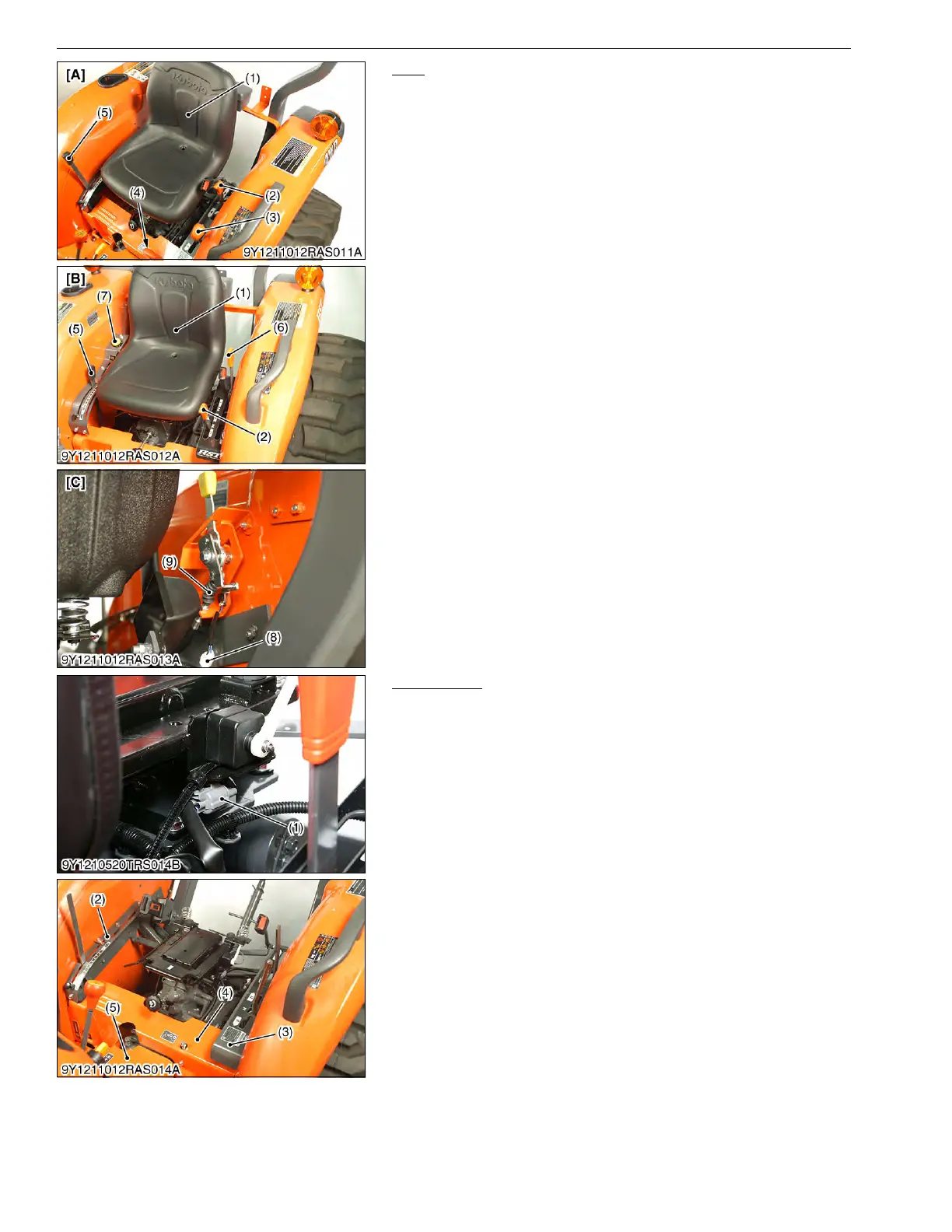

Seat
1. Remove the seat (1).
2. Remove the grips (2) to (6).
3. Remove the PTO switch (7).
4. Remove the PTO switch (8) and the PTO wire (9).
9Y1211012RAS0009US0
Lever Guide
1. Disconnect seat switch connector (1).
2. Remove the position control lever guide (2).
3. Remove the lever guide (3).
4. Remove the floor seat cover (4).
5. Remove the center cover (5).
9Y1211012RAS0010US0
(1) Seat
(2) Grip (Range Gear Shift Lever)
(3) Grip (Shuttle Shift Lever)
(4) Grip (Front Wheel Drive Lever)
(5) Grip (Position Control Lever)
(6) Grip
(Cruise Control Lever: OPTION)
(7) PTO Switch (L4701 Only)
(8) PTO Switch
(L3301/L3901 HST Model Only)
(9) PTO Wire
(L3301/L3901 HST Model Only)
[A]: Manual Transmission Model
[B]: HST Model
[C]: L3301/L3901 HST Model
(1) Seat Switch Connector
(2) Position Control Lever Guide
(3) Lever Guide
(4) Floor Seat Cover
(5) Center Cover (L3301/L3901 Only)
