BRAKES
L3301, L3901, L4701, WSM
5-M1
1. STRUCTURE
L3301/L3901
9Y1211012BRM0001US0
L4701
Independent mechanical wet disc brakes are used for the right and left traveling brakes. They are operated by
the brake pedals through the mechanical linkages.
The parking brake is a mechanical type which is designed to actuate the traveling brakes. Pulling the parking
brake lever (3) results in the same state as that obtained when the brake pedals are pressed.
9Y1211012BRM0003US0

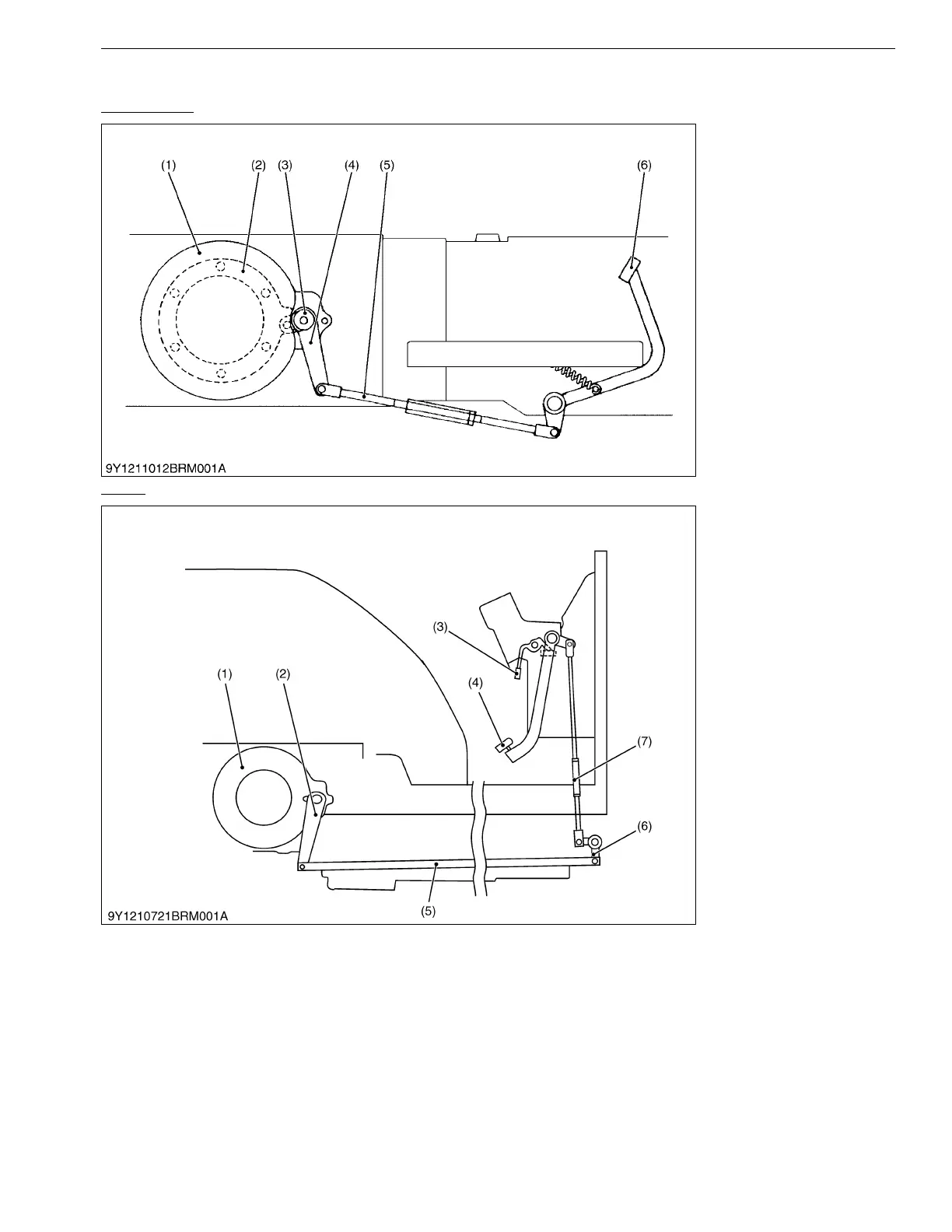

(1) Brake Case
(2) Cam Plate
(3) Brake Cam
(4) Brake Cam Lever
(5) Brake Rod
(6) Brake Pedal
(1) Brake Case
(2) Brake Cam Lever
(3) Parking Brake Lever
(4) Brake Pedal
(5) Brake Rod
(6) Brake Lever Link
(7) Turnbuckle
