Checking Water Separator
1. As water is collected in the water separator, the red float is
raised.
2. When the red float has reached the white line, close the fuel
valve, loosen the retainer ring, take out the cup, and clean the
cup. Be careful not to break the element.
3. Place the cup back into position. Bleed the fuel system.
• If water is drawn through to the fuel pump, extensive
damage will occur.
9Y1211012GEG0060US0
Checking Engine Oil Level
• Be sure to stop the engine before checking the oil level.
1. Park the machine on a flat surface.
2. Check engine oil before starting the engine or 5 minutes or more
after the engine has stopped.
3. To check the oil level, draw out the dipstick, wipe it clean,
replace it, and draw it out again. Check to see that the oil level
lies between the 2 notches. If the level is too low, add new oil to
the prescribed level at the oil inlet.
(Refer to "LUBRICANTS, FUEL AND COOLANT" on page
G-10.)
• When using an oil of different maker or viscosity from the
previous one, remove all of the old oil.
Never mix two different types of oil.
• If oil level is low, do not run engine.
• At times a small amount of fuel, which is used to regenerate
the DPF, may get mixed with the engine oil and the engine
oil may increase in volume.
9Y1211012GEG0061US0

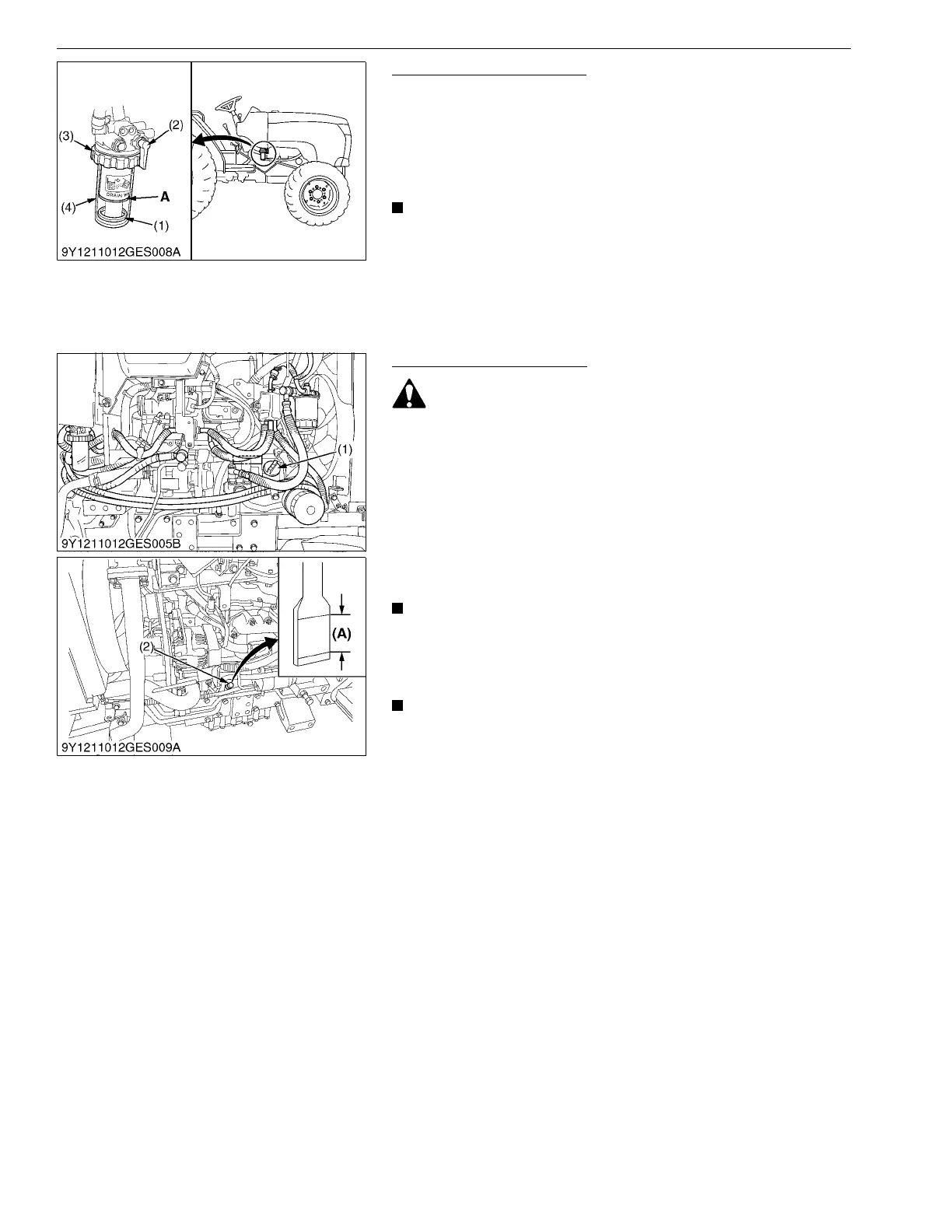

(1) Red Float
(2) Fuel Valve
(3) Retainer Ring
(4) Cup
A: White Line
(1) Oil Inlet
(2) Dipstick
(A) Oil level is acceptable within this
range.
