GENERAL
L3301, L3901, L4701, WSM
G-23
Checking Transmission Fluid Level
1. Park the machine on a flat surface, lower the implement and
shut off engine.
2. To check the oil level, draw out the dipstick, wipe it clean,
replace it, and draw it out again. Check to see that the oil level
lies between the 2 notches. If the level is too low, add new oil to
the prescribed level at the oil inlet.
(Refer to "LUBRICANTS, FUEL AND COOLANT" on page
G-10.)
IMPORTANT
• If oil level is low, do not run engine.
9Y1211012GEG0062US0
Checking Coolant Level
CAUTION
• Do not remove radiator cap while coolant is hot. When cool,
slowly rotate cap to the first stop and allow sufficient time
for excess pressure to escape before removing the cap
completely.
1. Check to see that the coolant level is between the "FULL" and
"LOW" marks of recovery tank.
2. When the coolant level drops due to evaporation, add soft water
only up to the full level. In case of leakage, add anti-freeze and
soft water in the specified mixing ratio up to the full level.
(Refer to "LUBRICANTS, FUEL AND COOLANT" on page
G-10.)
3. When the coolant level is lower than "LOW" mark of recovery
tank, remove the radiator cap and check to see that the coolant
level is just below the port. If level is low, add coolant.
IMPORTANT
• If the radiator cap has to be removed, follow the caution
above and securely retighten the cap.
• Use clean, fresh soft water and anti-freeze to fill the
radiator.
9Y1211012GEG0063US0

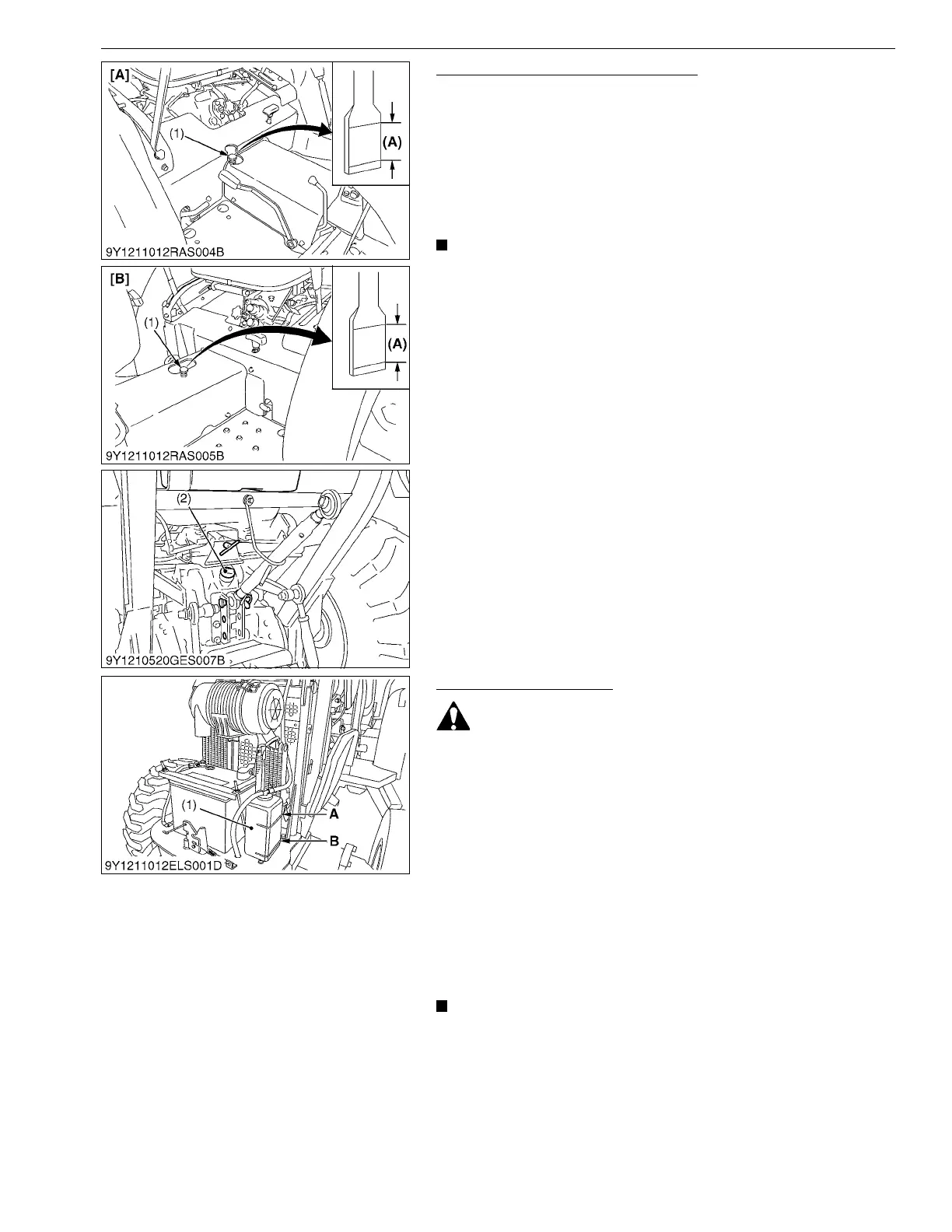

(1) Dipstick
(2) Oil Inlet
[A] Manual Transmission Type
[B] HST Type
(A) Oil level is acceptable within this
range
(1) Recovery Tank A: Full
B: Low
