FRONT AXLE
L3301, L3901, L4701, WSM
6-S20

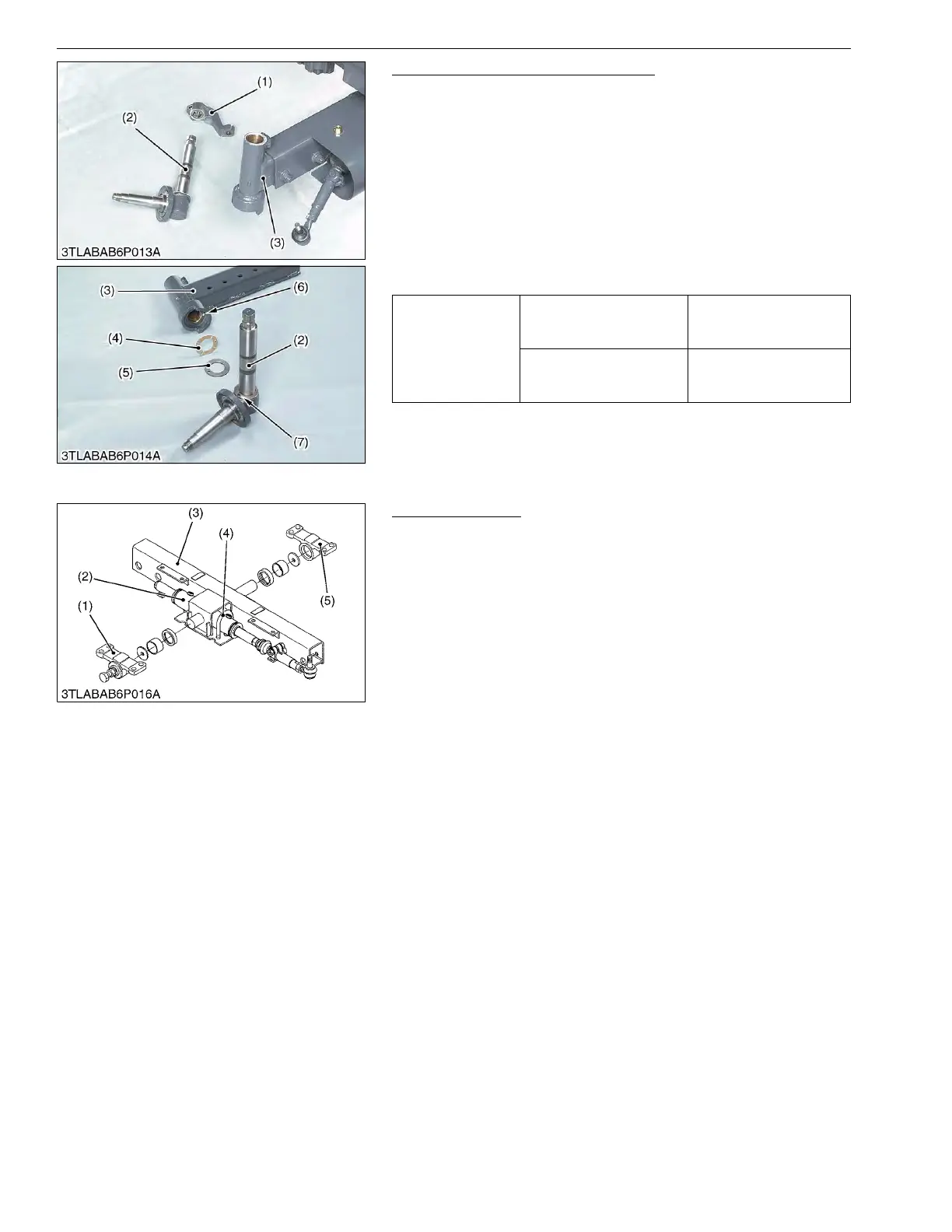

Knuckle Shaft and Outer Front Axle
1. Remove the knuckle arm (1) and draw out the knuckle shaft (2)
from the front axle.
2. Remove the outer front axle (3).
(When reassembling)
• Apply grease to the knuckle shaft (2) and thrust collar (4), (5).
• Do not interchange right and left knuckle arms.
• Be sure to install the thrust collars (4), (5) so that groove side is
downward.
• Be sure to align the hole of thrust collars (4), (5) and knock pin
(6), (7).
• A large size thrust collar (5) must be lower side.
9Y1211012FAS0026US0
Steering Cylinder
1. Remove the clamps (4) and remove the steering cylinder (2).
9Y1211012FAS0027US0
Tightening torque
Knuckle arm mounting bolt
and nut
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.2 to 66.5 lbf·ft
Outer front axle mounting
bolt and nut
123 to 147 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 lbf·ft
(1) Knuckle Arm
(2) Knuckle Shaft
(3) Outer Front Axle
(4) Thrust Collar
(5) Thrust Collar
(6) Knock Pin
(7) Knock Pin
(1) Bracket, Front
(2) Steering Cylinder
(3) Middle Front Axle
(4) Clamp
(5) Bracket, Rear
To Next Page
