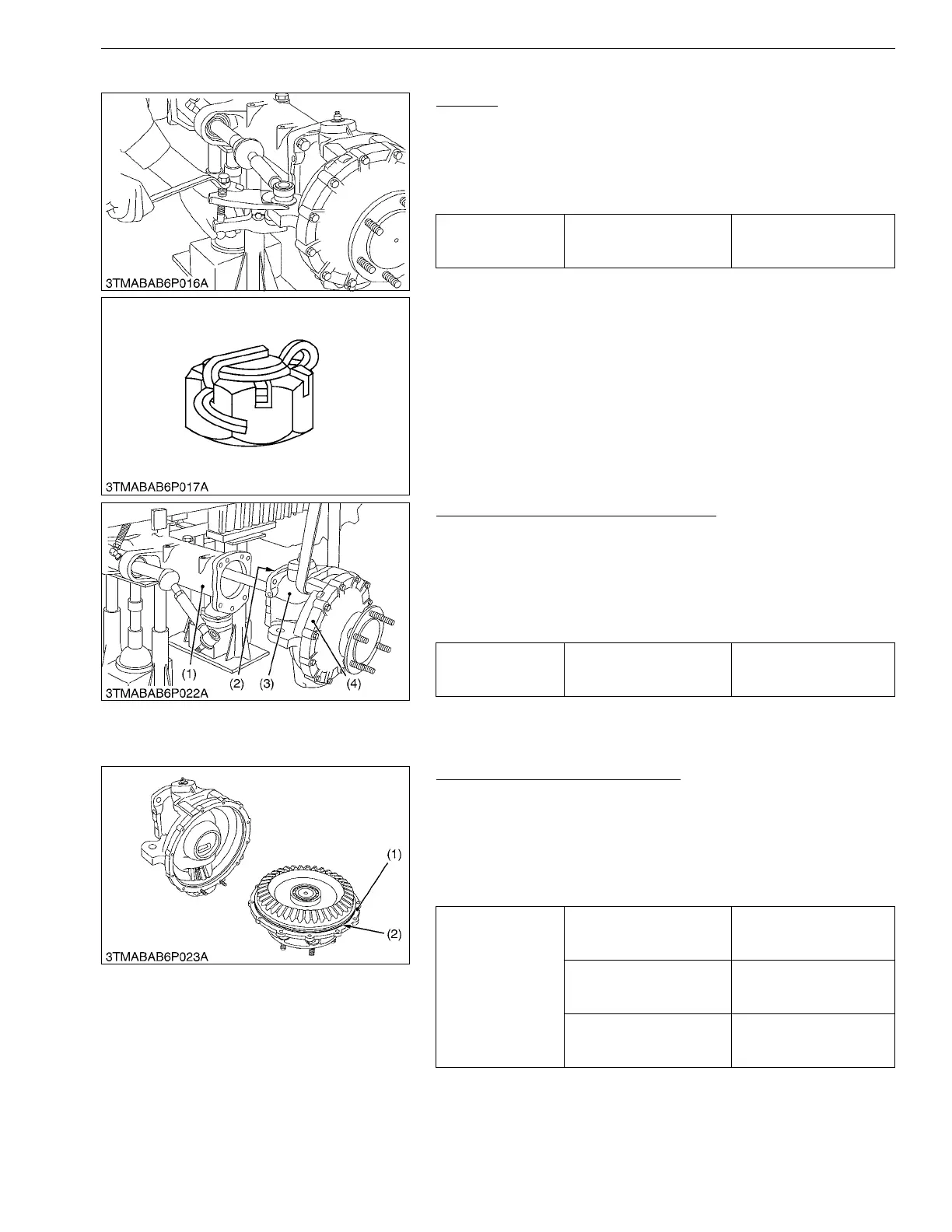

FRONT AXLE
L3301, L3901, L4701, WSM
6-S21
[B] 4WD Model
Tie-rods
1. Pull out the cotter pin and remove the tie-rod end slotted nuts.
2. Remove the tie-rod with a tie-rod end lifter.
(When reassembling)
• After tightening the tie-rod end nut to the specified torques,
install a cotter pin as shown in the figure left.
9Y1211012FAS0028US0
Bevel Gear Case and Front Gear Case
1. Remove the bevel gear case mounting screws.
2. Remove the bevel gear case (3) and front gear case (4) as a unit
from the front axle case (1).
(When reassembling)
• Apply grease to the O-ring (2) and be careful not to damage it.
• Do not interchange right and left bevel gear case assemblies.
9Y1211012FAS0029US0
Axle Flange and Front Gear Case
1. Remove the axle flange mounting bolts and nuts.
2. Remove the axle flange (1).
(When reassembling)
• Apply grease to the O-ring (2) of axle flange.
• Tighten the axle flange mounting bolts and nuts diagonally in
several steps.
9Y1211012FAS0030US0
Tightening torque Tie-rod end nut
35 to 44 N·m
3.5 to 4.5 kgf·m
26 to 32 lbf·ft
Tightening torque
Bevel gear case mounting
screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
122.9 to 144.6 lbf·ft
(1) Front Axle Case
(2) O-ring
(3) Bevel Gear Case
(4) Front Gear Case
Tightening torque
Axle flange mounting bolts
and nuts [L3301/L3901]
23.6 to 27.5 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
Axle flange mounting bolts
[L4701]
29.4 to 34.3 N·m
3.0 to 3.5 kgf·m
22 to 25 lbf·ft
Axle flange mounting nuts
[L4701]
23.6 to 27.5 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Axle Flange (2) O-ring
