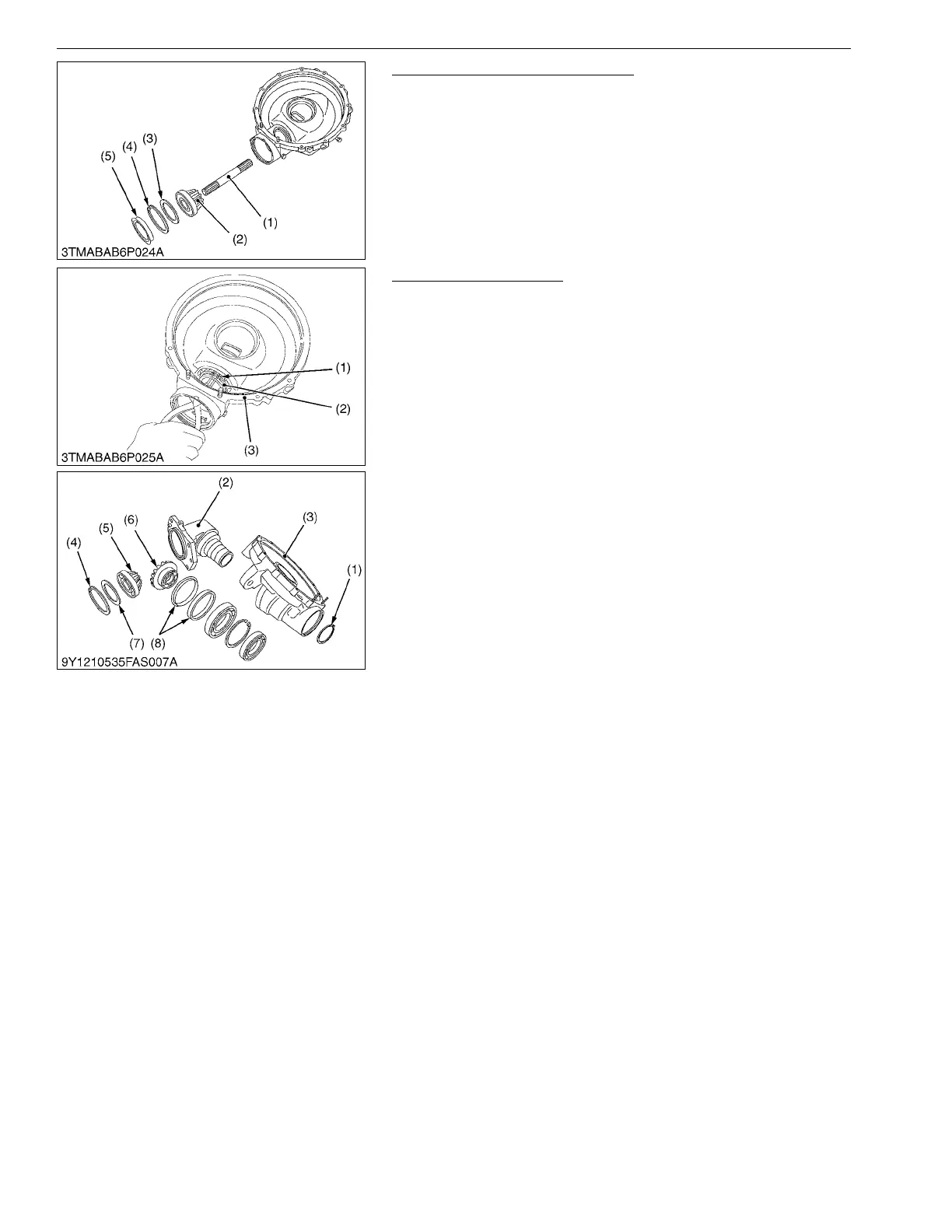

Bevel Gear and Bevel Gear Shaft
1. Remove the plug (5).
2. Remove the internal snap ring (4) and shim (3).
3. Tap out the bevel gear (2) with ball bearing.
4. Draw out the bevel gear shaft (1).
9Y1211012FAS0031US0
Bevel Gear Case Gears
1. Remove the external snap ring (1).
2. Tap the bevel gear case (2) and separate it from the front gear
case (3).
3. Remove the internal snap ring (4).
4. Remove the bevel gears (5), (6) with ball bearings, and shims
(7).
(When reassembling)
• Install the shims (7) to their original position.
• Install the oil seal (8) of bevel gear case, noting its direction.
9Y1211012FAS0032US0
(1) Bevel Gear Shaft
(2) Bevel Gear
(3) Shim
(4) Internal Snap Ring
(5) Plug
(1) External Snap Ring
(2) Bevel Gear Case
(3) Front Gear Case
(4) Internal Snap Ring
(5) Bevel Gear
(6) Bevel Gear
(7) Shim
(8) Oil Seal
