FRONT AXLE
L3301, L3901, L4701, WSM
6-S23
Axle

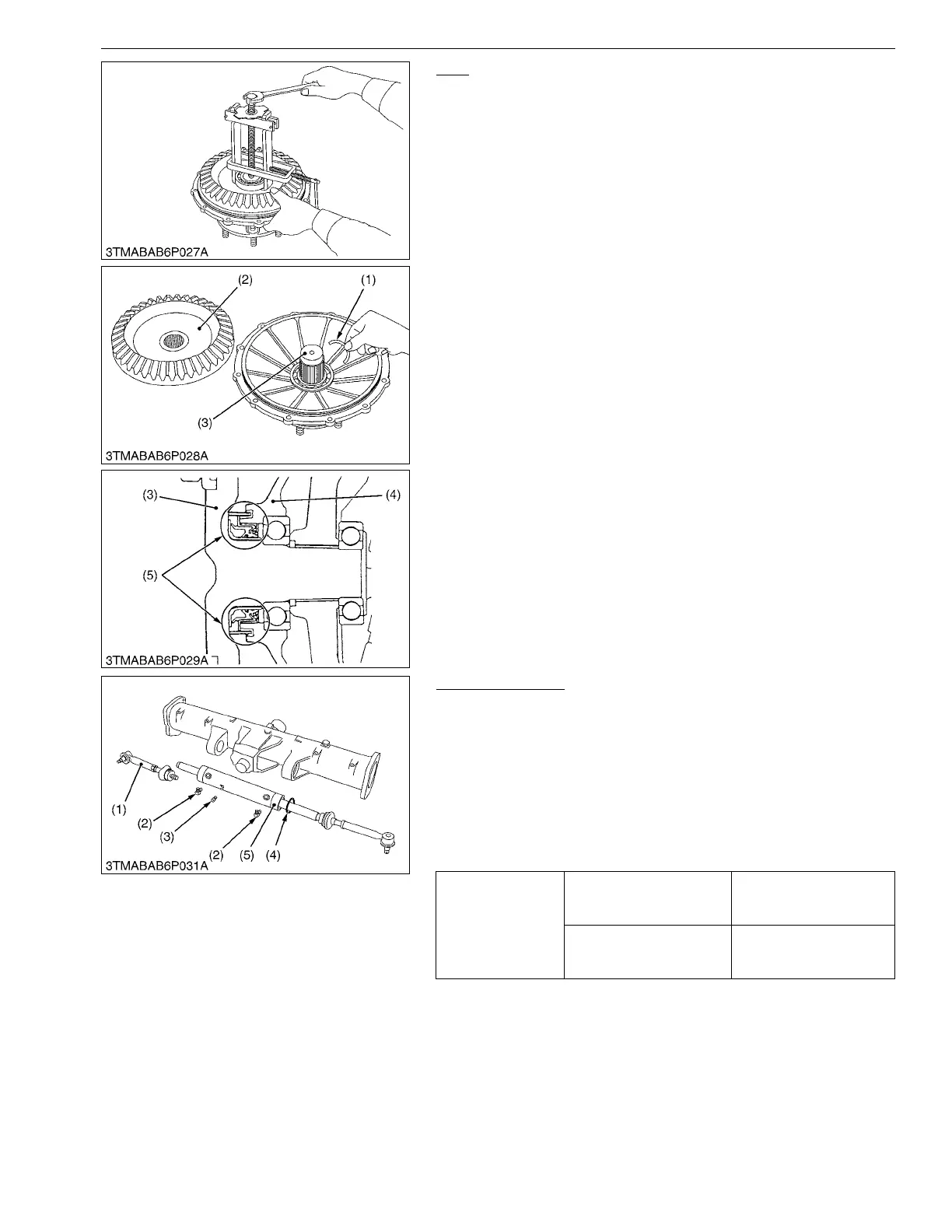

1. Remove the bearing with a special use puller set.
2. Remove the bevel gear (2).
3. Remove the collar (1).
4. Tap out the axle (3).
(When reassembling)
• Install the oil seal (5) of axle flange (4), noting its direction as
shown in the figure below.
• Be sure to insert collar (1) into groove.
9Y1211012FAS0033US0
Steering Cylinder
1. Remove the tie-rod joint (1) (right side).
2. Remove the cylinder set screw (3).
3. Remove the joints (2) from steering cylinder.
4. Remove the internal snap ring (4).
5. Draw out the steering cylinder (5).
(When reassembling)
• Apply thread locker (Three Bond 1324 or equivalent) to the
tie-rod joint.
• Wind seal tape on cylinder side of joint (2).
9Y1211012FAS0034US0
(1) Collar
(2) Bevel Gear
(3) Axle
(4) Axle Flange
(5) Oil Seal
Tightening torque
Tie-rod joint and steering
cylinder mounting screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
122.9 to 144.6 lbf·ft
Cylinder set bolt
16 to 17 N·m
1.6 to 1.8 kgf·m
12 to 13 lbf·ft
(1) Tie-rod Joint
(2) Joint
(3) Cylinder Set Screw
(4) Internal Snap Ring
(5) Steering Cylinder
