STEERING
L3301, L3901, L4701, WSM
7-S13
Steering Gear Box Assembly

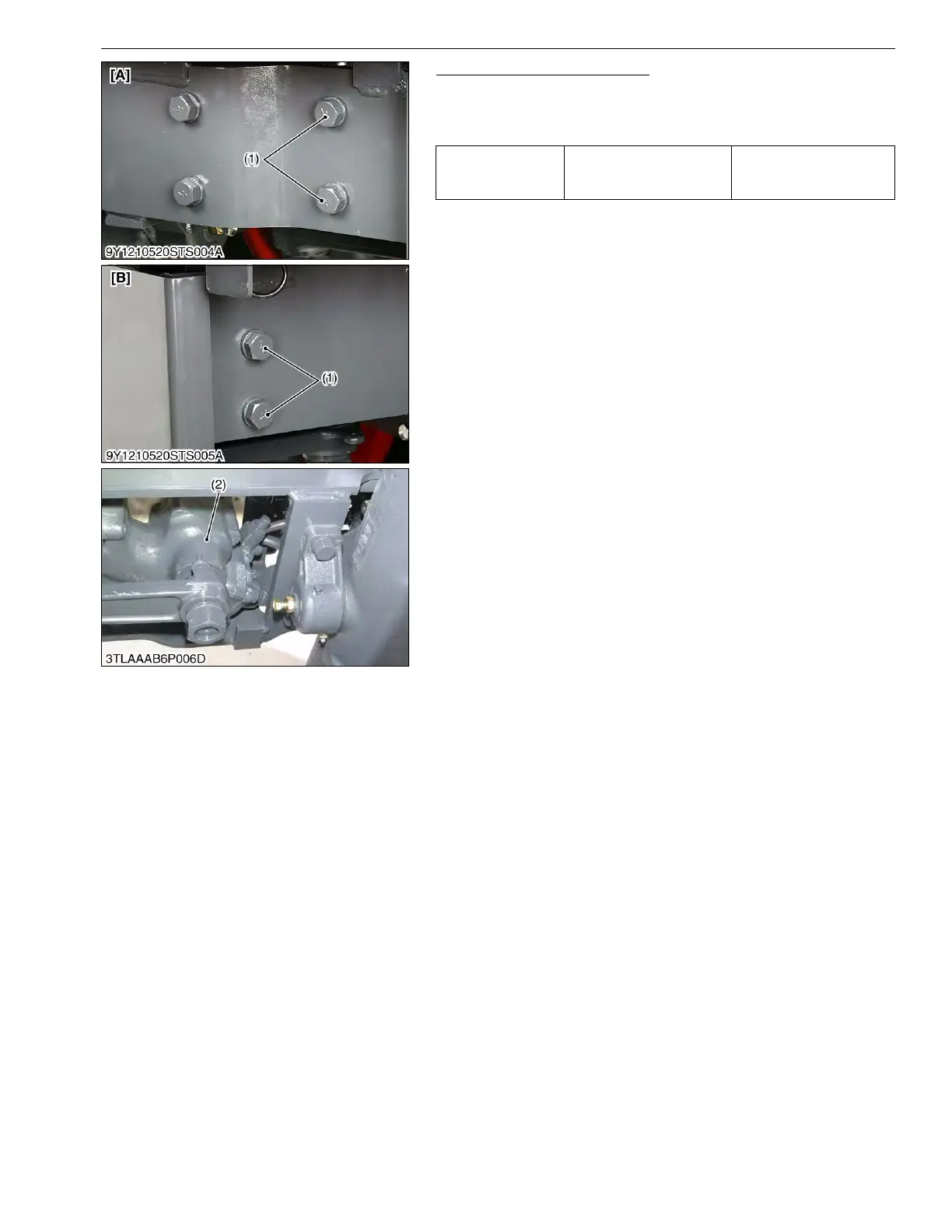

1. Remove the bolts (1).
2. Remove the steering gear box (2).
(When reassembling)
9Y1211012STS0016US0
Tightening torque
Steering gear box mounting
bolt
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
(1) Steering Gear Box Mounting Bolt
(2) Steering Gear Box
[A] Right Side
[B] Left Side
