Checking Fuel Grommet
1. Check the grommets for cracks and fuel leak.
2. If any of such problems is found, replace the grommet(s) with
new one(s).
9Y1211012GEG0080US0
Adjusting Clutch Pedal
Adjusting procedure [with single clutch] [L3301 Manual
Transmission Type], [HST Type]
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and measure free travel at the
top of pedal stroke.
3. If adjustment is needed, loosen the lock nut and turn the clutch
rod to adjust the rod length within acceptable limits.
4. Retighten the lock nut.
Adjusting procedure [with Dual Clutch] [L3901 Manual
Transmission Type]
1. At first adjust clutch play, same as with single disc clutch.
2. Remove the cover located on the right side of flywheel housing
case.
3. Loosen the lock nut, tighten the adjust bolt by using 7 mm
(0.28 in.) spanner until head of the bolt contacts pressure plate
slightly. Make 3/4 turn counterclockwise to give 0.9 to 1.0 mm
(0.035 to 0.039 in.) clearance.
4. Tighten the lock nut, holding the adjusting bolt.
5. Turn the flywheel to adjust the clearance of other adjusting
bolts. (3 bolts).
6. Repeat step (3) and readjust free travel of clutch pedal if
necessary.
9Y1211012GEG0081US0

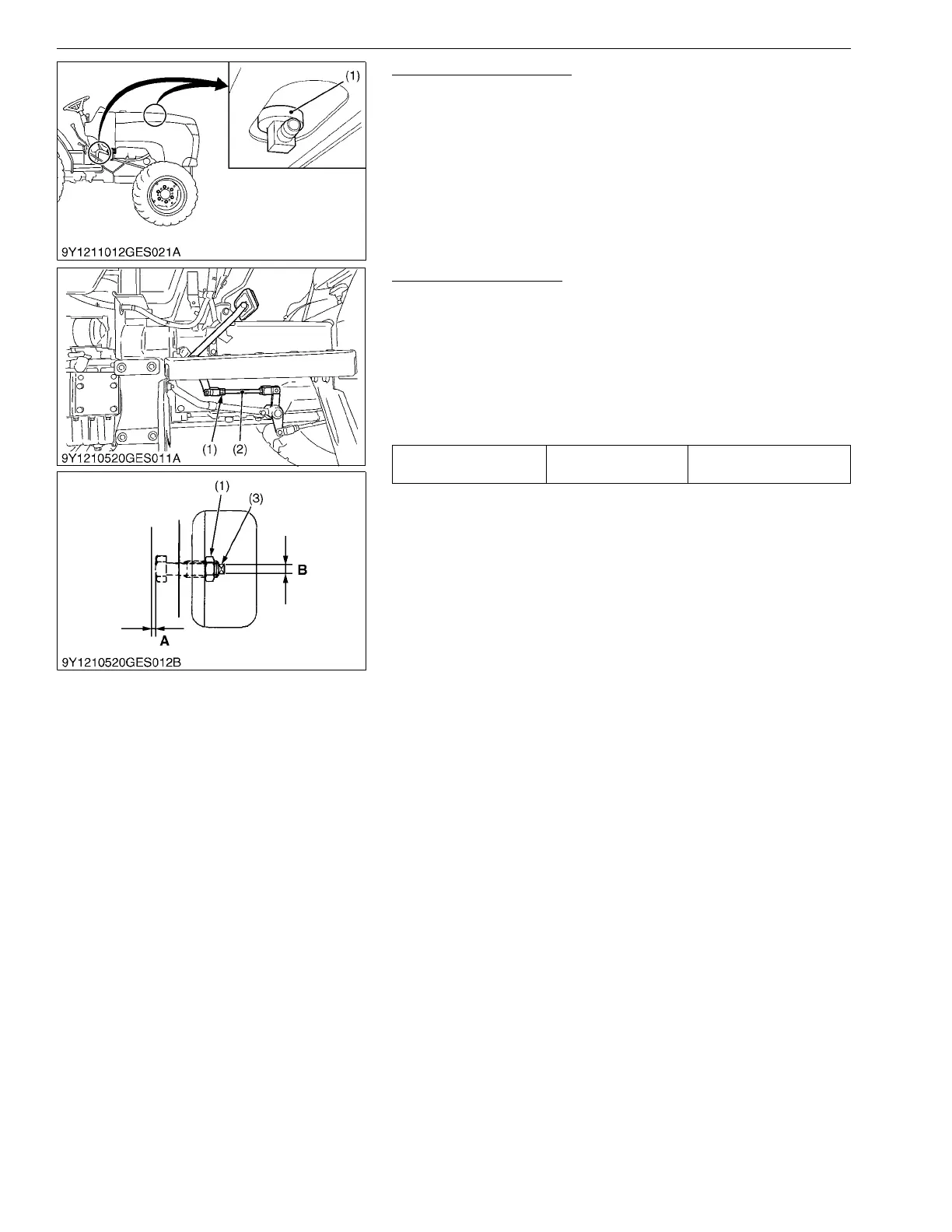

(1) Fuel Grommet
Brake pedal free travel Factory specification
20 to 30 mm (0.8 to 1.2 in.)
on the pedal
(1) Lock Nut
(2) Clutch Rod
(3) Adjusting Bolt
A: 7 mm (0.28 in.)
B: 0.9 to 1.0 mm (0.035 to 0.039 in.)
