GENERAL
L3301, L3901, L4701, WSM
G-31

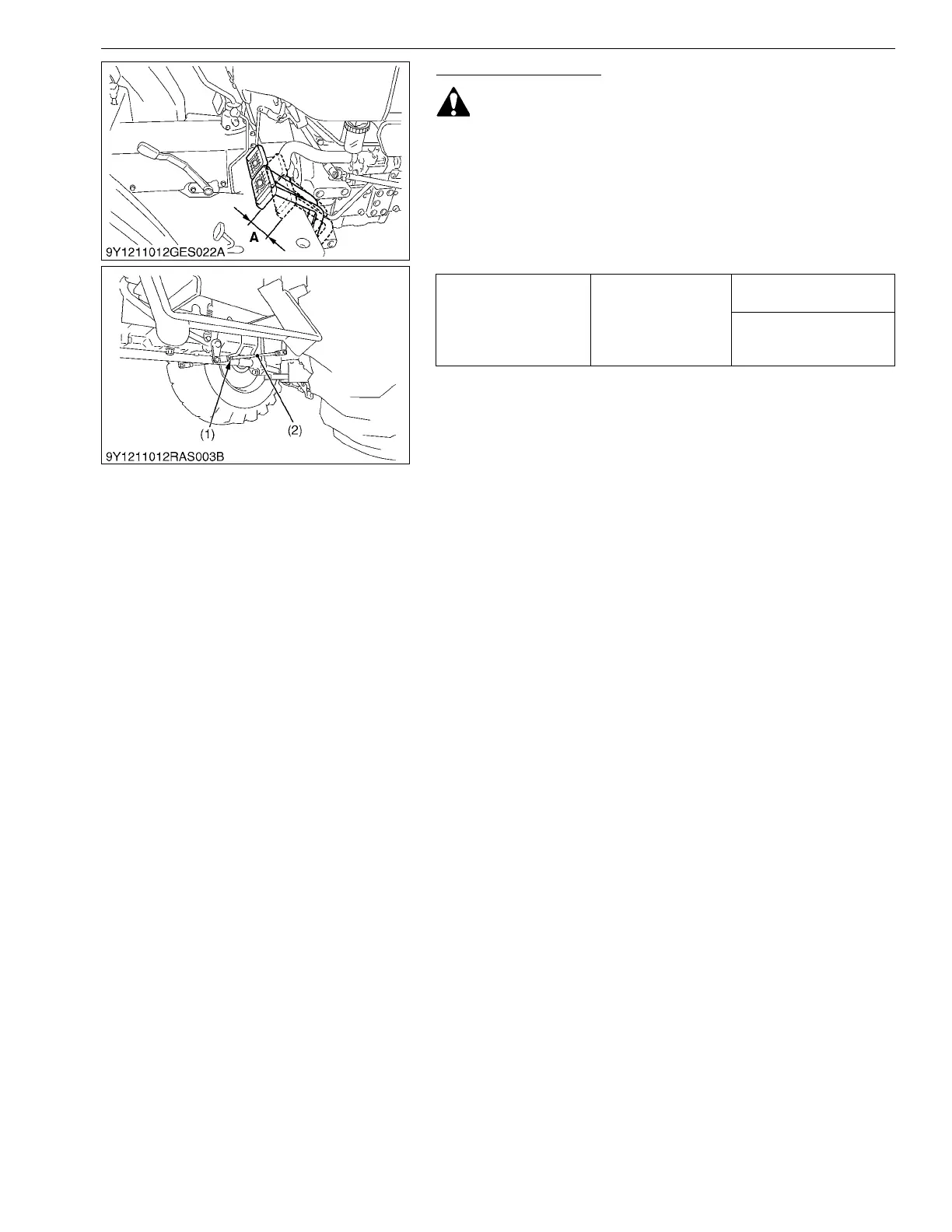

Adjusting Brake Pedal
CAUTION
• Stop the engine and chock the wheels before checking
brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel at top
of pedal stroke.
3. If adjustment is needed, loosen the lock nut and turn the brake
rod to adjust the rod length within acceptable limits.
4. Retighten the lock nut.
9Y1211012GEG0082US0
Brake pedal free travel
"A"
Factory specification
15 to 20 mm (0.6 to 0.8 in.)
on the pedal
Keep the free travel in the
right and left brake pedals
equal.
(1) Lock Nut
(2) Brake Rod
A: Free Travel
KiSC issued 09, 2016 A
