Seat Switch
This switch is attached under the seat. When sitting
the seat, the seat switch (1) is pushed in, and electrical
circuit is closed. When the seat is vacant, this switch is
not pushed and electrical circuit is opened. This switch is
adopted to achieve OPC (operator presence control)
function.
9Y1211012ELM0017US0
HST Pedal Switch
The HST pedal switch (1) is attached to detect
whether the HST pedal is in neutral position. When the
HST pedal is in "NEUTRAL" position, this switch is ON
position.
This switch also has a function as a safety switch. If
this switch is OFF position, starter motor does not rotate.
9Y1211012ELM0018US0

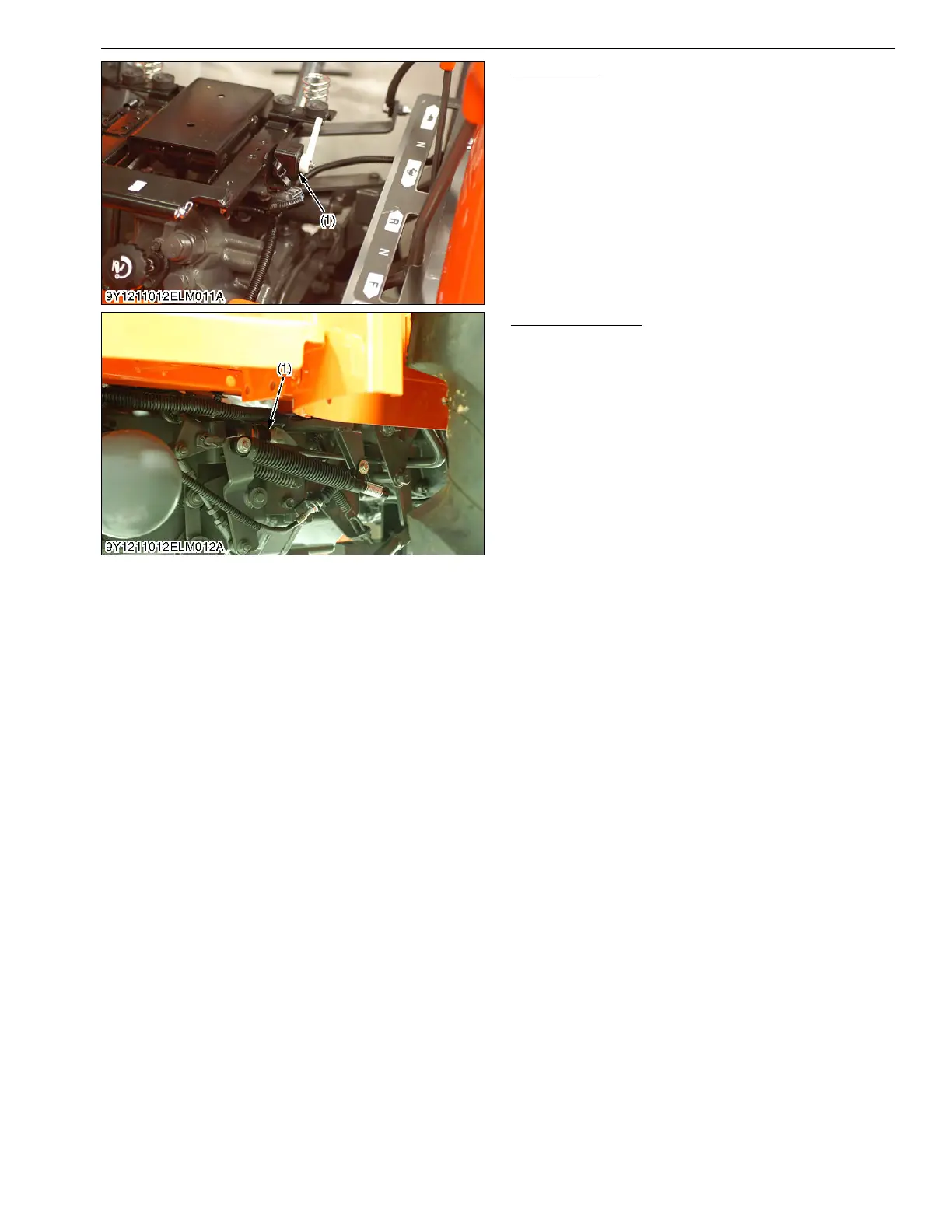

(1) Seat Switch
(1) HST Pedal Switch
