GENERAL
L3301, L3901, L4701, WSM
G-47

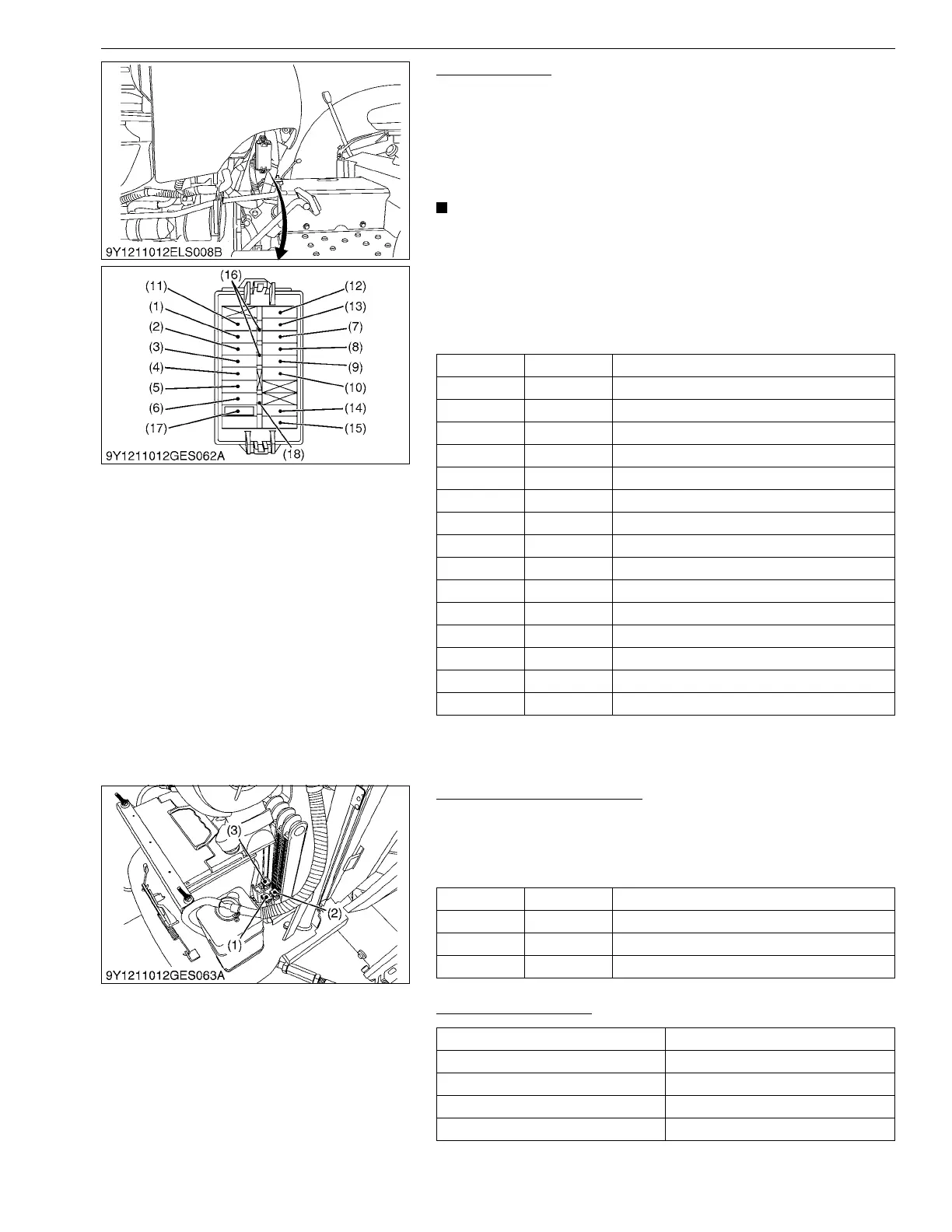

Replacing Fuse
1. The tractor electrical system is protected from potential damage
by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
2. If any of the fuses should blow, replace with a new one of the
same capacity.
IMPORTANT
• Before replacing a blown fuse, determine why the fuse blew
and make any necessary repairs. Failure to follow this
procedure may result in serious damage to the tractor
electrical system. Refer to "1. TROUBLESHOOTING" on
page 9-S1.
If any of them should blow, replace with a new one of the
same capacity.
9Y1211012GEG0123US0
Replacing Slow-Blow Fuses
1. The slow-blow fuses are intended to protect the electrical
cabling. If any of them has blown out, be sure to pinpoint the
cause. Never use any substitute, use only a KUBOTA genuine
part.
9Y1211012GEG0124US0
Replacing Light Bulb
9Y1211012GEG0125US0
Fuse No. Capacity (A) Protected circuit
(1) 5 Engine ECU (Ignition key)
(2) 5 Main ECU (Ignition key)
(3) 5 Meter panel (Ignition key)
(4) 10 Combination switch
(5) 10 Work light
(6) 5 Starter relay
(7) 20 Engine ECU (Battery)
(8) 5 Main ECU (Battery)
(9) 5 Meter panel (Battery)
(10) 10 Hazard
(11) 5 Heater relay (if equipped)
(12) 10 Heater (Oil separator, IN 1) (if equipped)
(13) 10 Heater (Oil separator, IN 2) (if equipped)
(14) 10 Heater (Oil separator, OUT 1) (if equipped)
(15) 10 Heater (Oil separator, OUT 2) (if equipped)
(16) Spare Fuse
(17) Fuse Puller
(18) Spare fuse
No. Capacity (A) Protected circuit
(1) 40 Load
(2) 50 Battery
(3) 40 Heater (Oil separator) (if equipped)
Light Capacity
Head lights 25 W / 25 W
Tail light 5 W
Turn signal / Hazard light (rear) 21 W
Turn signal / Hazard light (front) 23 W
