GENERAL
L3301, L3901, L4701, WSM
G-52

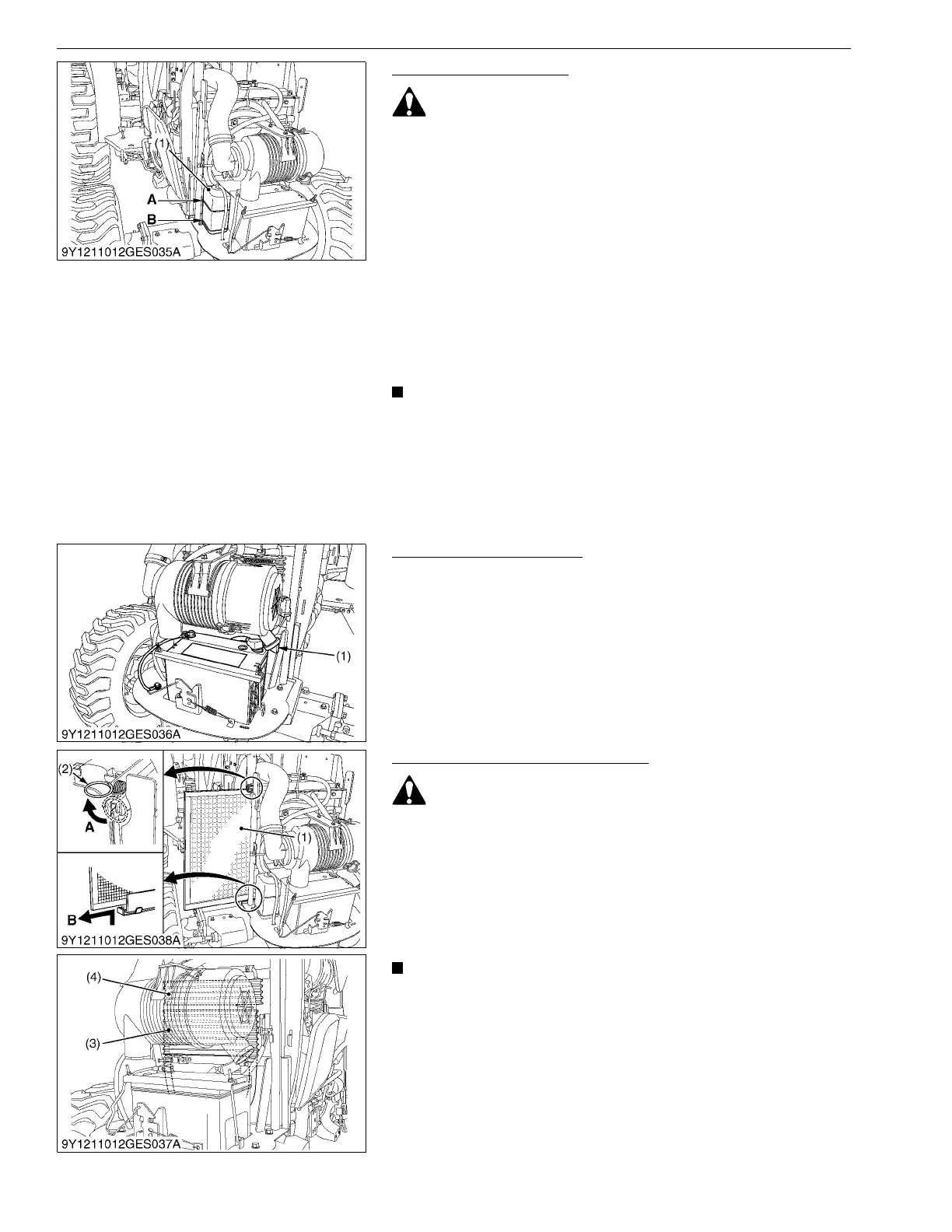

Checking Coolant Level
• Do not remove radiator cap while coolant is hot. When cool,
slowly rotate cap to the first stop and allow sufficient time
for excess pressure to escape before removing the cap
completely.
1. Check to see that the coolant level is between the "FULL" and
"LOW" marks of recovery tank.
2. When the coolant level drops due to evaporation, add soft water
only up to the full level. In case of leakage, add anti-freeze and
soft water in the specified mixing ratio up to the full level.
(Refer to "LUBRICANTS, FUEL AND COOLANT" on page
G-11.)
3. When the coolant level is lower than "LOW" mark of recovery
tank, remove the radiator cap and check to see that the coolant
level is just below the port. If level is low, add coolant.
• If the radiator cap has to be removed, follow the caution
above and securely retighten the cap.
• Use clean, fresh soft water and anti-freeze to fill the
radiator.
9Y1211012GEG0131US0
Cleaning Evacuator Valve
1. Open the evacuator valve to get rid of large particles of dust and
dirt.
9Y1211012GEG0132US0
Cleaning Grill and Radiator Screen
• Be sure to stop the engine before removing the screen.
• Before checking or cleaning the radiator screen, stop the
engine and wait long enough until it is cooled down.
1. Check front grill and side screens to be sure they are clean of
debris.
2. Detach the screen with the fixed spring being held up and
remove all foreign materials and clean the front of radiator
completely.
• Grill and screen must be clean from debris to prevent
engine from overheating and to allow good air intake for
the air cleaner.
9Y1211012GEG0133US0
(1) Recovery Tank A: Full
B: Low
(1) Evacuator Valve
(1) Radiator Screen
(2) Fixed Spring
(3) Oil Cooler [HST Type]
(4) Fuel Cooler
A: Hold Up
B: Detach
