Checking DPF Muffler
CAUTION
• Before checking or cleaning the DPF muffler, stop the
engine and wait long enough until it is cooled down.
1. Check the DPF muffler and its surroundings for build-up of
anything flammable. Otherwise a fire may result.
9Y1211012GEG0134US0
Checking Brake Pedal
[HST Type]
CAUTION
• Be sure brake pedals have equal adjustment when using
locked together. Incorrect or unequal brake pedal
adjustment can cause the tractor to swerve or roll-over.
1. Inspect the brake pedals for free travel, and smooth operation.
2. Adjust if incorrect measurement is found. (See page G-59.)
9Y1211012GEG0135US0
Checking Brake Pedals and Clutch Pedal
[Manual Transmission Type]
CAUTION
• Be sure brake pedals have equal adjustment when using
locked together. Incorrect or unequal brake pedal
adjustment can cause the tractor to swerve or roll-over.
1. Inspect the brake and clutch pedals for free travel, and smooth
operation.
2. Adjust if incorrect measurement is found. (See "Adjusting
Clutch Pedal" on page G-59 or "Adjusting Brake Pedal" on page
G-59.)
9Y1211012GEG0136US0
Checking Gauges, Meter and Easy Checker™
1. Inspect the instrument panel for broken gauge(s), meter(s) and
Easy Checker™ lamps.
2. Replace if broken.
9Y1211012GEG0137US0
Checking Head Light, Turn Signal / Hazard Light etc.
1. Inspect the lights for broken bulbs and lenses.
2. Replace if broken.
9Y1211012GEG0138US0
Checking Seat Belt and ROPS
1. Always check condition of seat belt and ROPS attaching
hardware before operating tractor.
2. Replace if damaged.
9Y1211012GEG0139US0

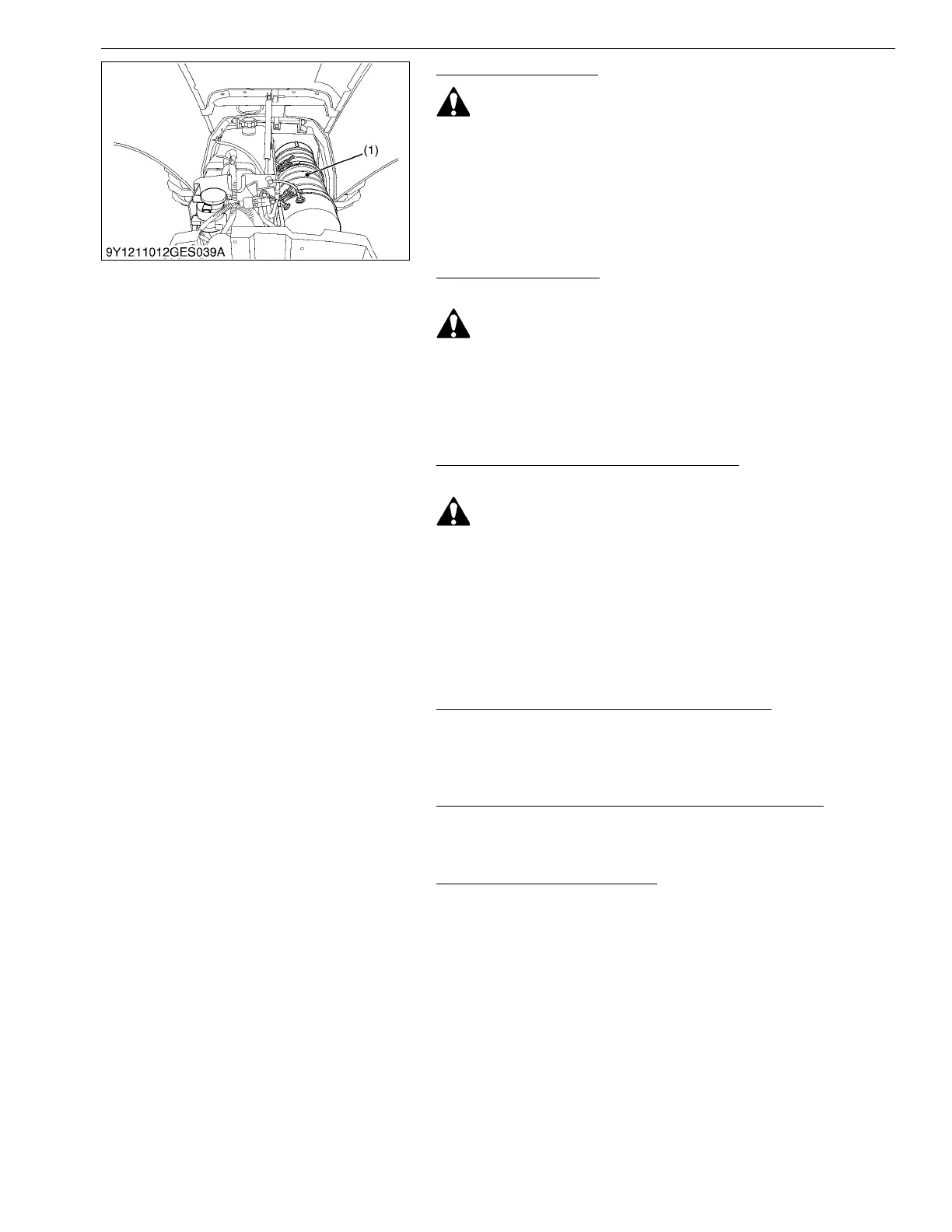

(1) DPF Muffler
