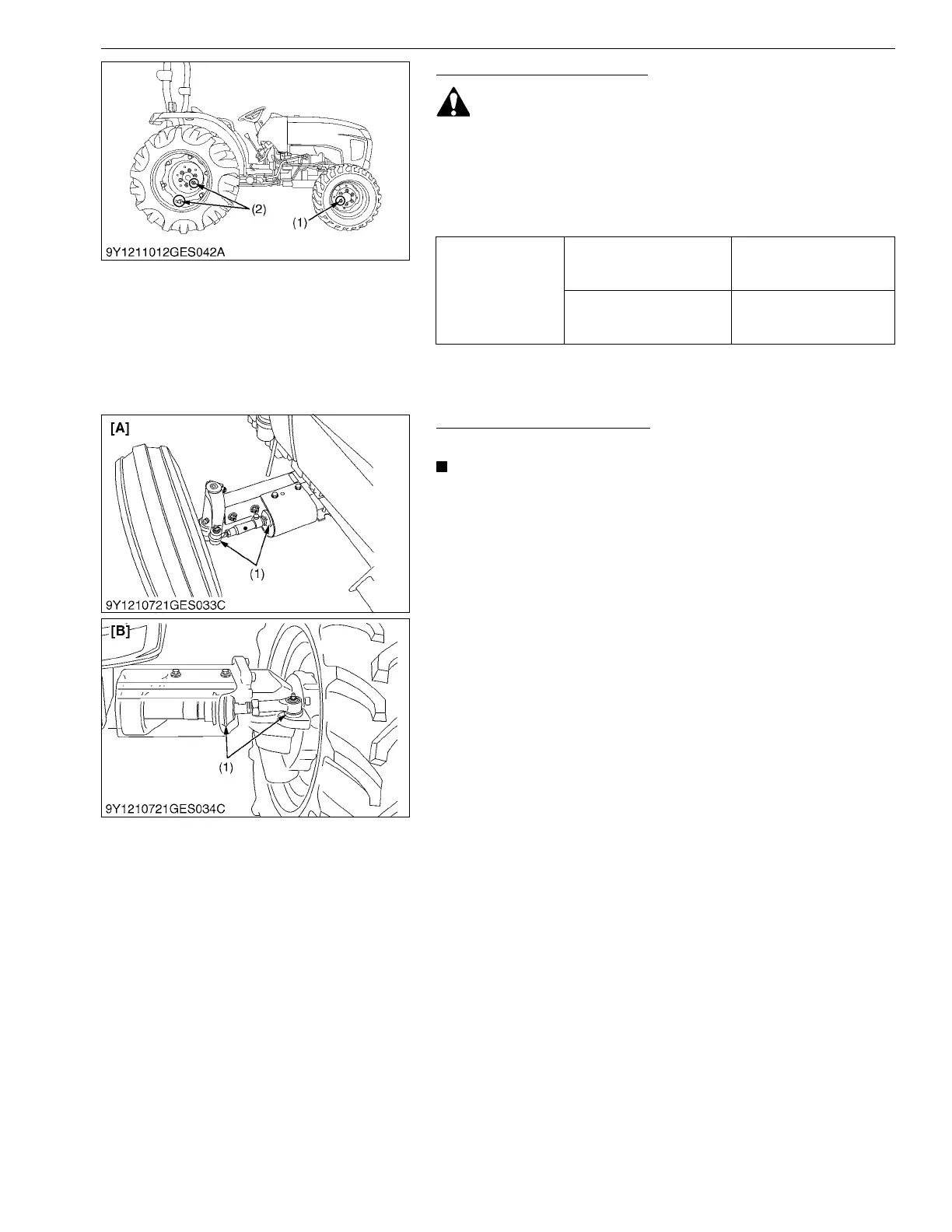

Checking Wheel Bolt Torque
• Never operate tractor with a loose rim, wheel, or axle.
• Any time bolts and nuts are loosened, retighten to
specified torque.
• Check all bolts and nuts frequently and keep them tight.
1. Check wheel bolts and nuts regularly especially when new. If
they are loose, tighten them as follows.
9Y1211012GEG0145US0
Checking Tie-rod Dust Cover
1. Check to see that dust covers are not damaged.
• If dust covers are cracked, water and dust invade into
tie-rod and it will be early wear.
9Y1211012GEG0146US0
Tightening torque
Front Wheel Mounting Nut
124.0 to 147.0 N·m
12.6 to 15.0 kgf·m
91.5 to 108.4 lbf·ft
Rear Wheel Mounting
Screw and Nut
196.0 to 225.0 N·m
20.0 to 23.0 kgf·m
144.6 to 166.0 lbf·ft
(1) Front Wheel Mounting Nut (2) Rear Wheel Mounting Screw and
Nut
(1) Dust Cover [A] 2WD
[B] 4WD
To Next Page
