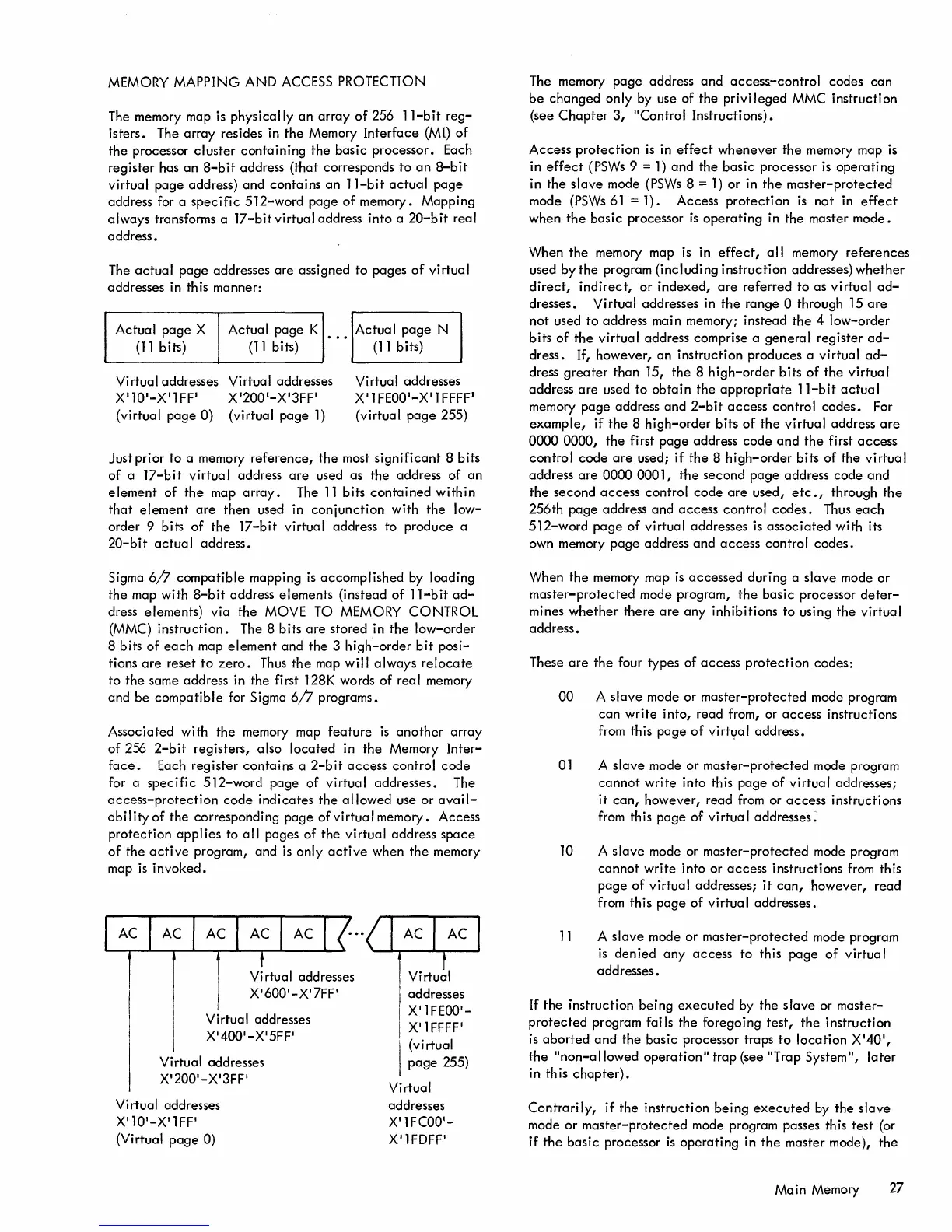

MEMORY MAPPING AND ACCESS PROTECTION
The memory map is physically
an
array
of
256
11-bit
reg-
isters. The array resides in
the
Memory
Interface
(MI)
of
the processor cluster containing the basic processor. Each
register has
an
8-bit
address (that corresponds
to
an
8-bit
virtual page address) and contains
an
11-bit
actual
page
address for a
specific
512-word
page
of
memory. Mapping
always transforms a
17-bit
virtual address into a
20-bit
real
address.
The
actual
page addresses
are
assigned to pages
of
virtual
addresses in this manner:
Actual page X
(11
bits)
Actua
I page K
(11
bits)
Vi
rtua I addresses
Vi
rtua I addresses
X
'
1O
'
-X'1
FF'
X'200'-X
'
3FF'
(virtual page 0) (virtual page
1)
Actual
page
N
(11
bits)
Vi
rtua I addresses
X
'
1 FEOO'-X'1 FFFF'
(virtual
page
255)
Just prior to a memory
reference,
the
most
significant
8 bits
of
a
17-bit
virtual address
are
used as the address
of
an
element
of
the
map
array.
The
11
bits
contained
within
that
element
are
then used in
conjunction
with the low-
order
9 bits
of
the
17-bit
virtual address to produce a
20-bit
actual
address.
Sigma
6/7
compatible mapping
is
accomplished
by
loading
the map with
8-bit
address elements (instead
of
11-bit
ad-
dress elements) via the MOVE
TO
MEMORY CONTROL
(MMC) instruction. The 8 bits
are
stored in
the
low-order
8 bits
of
each
map
element
and the 3
hi~h-order
bit
posi-
tions
are
reset
to
zero.
Thus
the
map wi
II
a Iways
relocate
to the same address in the first 128K words
of
real memory
and be compatible for
Sigma
6/7
programs.
Associated with the memory map
feature
is
another
array
of 256
2-bit
registers, also
located
in the Memory
Inter-
face.
Each register contains a
2-bit
access
control
code
for a
specific
512-word
page of virtual addresses. The
access-protection
code
indicates the
allowed
use or
avai
1-
abilityof
the corresponding page
of
virtual memory. Access
protection
applies
to
all
pages of the virtual address
space
of
the
active
program, and
is
only
active
when
the
memory
map
is
invoked.
Vi
rtu a I add resses
X
'
600
'
-X'7FF'
Virtual addresses
X'400'-X
'
5FF'
Virtual
addresses
X'200'_X
'
3FF'
Virtual
addresses
X'10'-X'1
FF'
(Virtual
page
0)
Virtual
addresses
X
'
1
FEOO'-
X
'
1 FFFF'
(virtual
page
255)
Virtual
addresses
X'1FCOO'-
X
'
1FDFF'
The memory page address and access.-control codes can
be
changed
only by use of the
privileged
MMC
instruction
(see
Chapter
3,
"Control Instructions).
Access
protection
is
in
effect
whenever
the
memory map is
in
effect
(PSWs
9 =
1)
and the basic processor
is
operating
in the
slave
mode
(PSWs
8 =
1)
or in
the
master-protected
mode
(PSWs
61
=
1).
Access
protection
is
not in
effect
when
the
basic processor
is
operating
in the master mode.
When the memory map is in
effect,
all
memory references
used by
the
program (including instruction addresses)
whether
direct,
indirect,
or indexed,
are
referred to as virtual
ad-
dresses. Virtual addresses in
the
range 0 through 15
are
not used to address main memory; instead the 4 low-order
bits
of
the
virtual address comprise a general register
ad-
dress. If, however,
an
instruction produces a virtual
ad-
dress
greater
than 15, the 8
high-order
bits
of
the
virtua I
address
are
used
to
obtain
the
appropriate
11-bit
actual
memory page address and
2-bit
access
control
codes.
For
example,
if
the
8
high-order
bits
of
the virtual address
are
0000 0000, the first
page
address
code
and
the
first
access
control
code
are
used;
if
the
8
high-order
bits
of
the virtual
address
are
0000 0001,
the
second
page
address code
and
the
second
access
control
code
are
used,
etc.,
through
the
256th page address and
access
control
codes.
Thus
each
512-word
page
of
virtual addresses
is
associated
with its
own memory
page
address and
access
control
codes.
When
the
memory map
is
accessed during a
slave
mode or
master-protected
mode program,
the
basic processor
deter-
mines whether there
are
any inhibitions to using the virtual
address.
These
are
the
four types of
access
protection
codes:
00
A
slave
mode or
master-protected
mode program
can
write into, read from, or
access
instructions
from this
page
of
virtyal address.
01
A slave mode or
master-protected
mode program
cannot
write into this page
of
virtual addresses;
it
can,
however, read
from
or
access
instructions
from
this page
of
virtual addresses.
10
A
slave
mode or
master-protected
mode program
cannot
write into or
access
instructions
from
this
page
of
virtual addresses;
it
can,
however, read
from this
page
of
virtua I addresses.
11
A
slave
mode or
master-protected
mode program
is
denied
any
access
to this page
of
virtua I
addresses.
If
the instruction being
executed
by the
slave
or master-
protected
program fai
Is
the foregoing
test,
the instruction
is
aborted
and
the basic processor traps
to
location X
'
40
'
,
the
"non-allowed
operation
II
trap (see "Trap System",
later
in this
chapter).
Contrarily,
if
the instruction being
executed
by
the
slave
mode
or
master-protected
mode program passes this test (or
if
the
basic processor
is
operating
in
the
master mode), the
Main Memory 27
