Appendix
Xerox 6204 Wide Format Solution
User Guide
11-
210
Space Requirements
The Xerox 6204 Wide Format Solution with FreeFlow Access Print Server occupies a minimum of 52.6
square feet (4.89m
2
) of floor space, and requires a minimum of 18 inches (457mm) clearance from its
rear vents to the wall. The required clearance from the floor to the nearest overhead obstruction within
the floor space area is
84" (2135mm).
Note
An additional 14.9 inches (378mm) of clearance is required at the rear of the machine if the
optional document catch tray is installed.

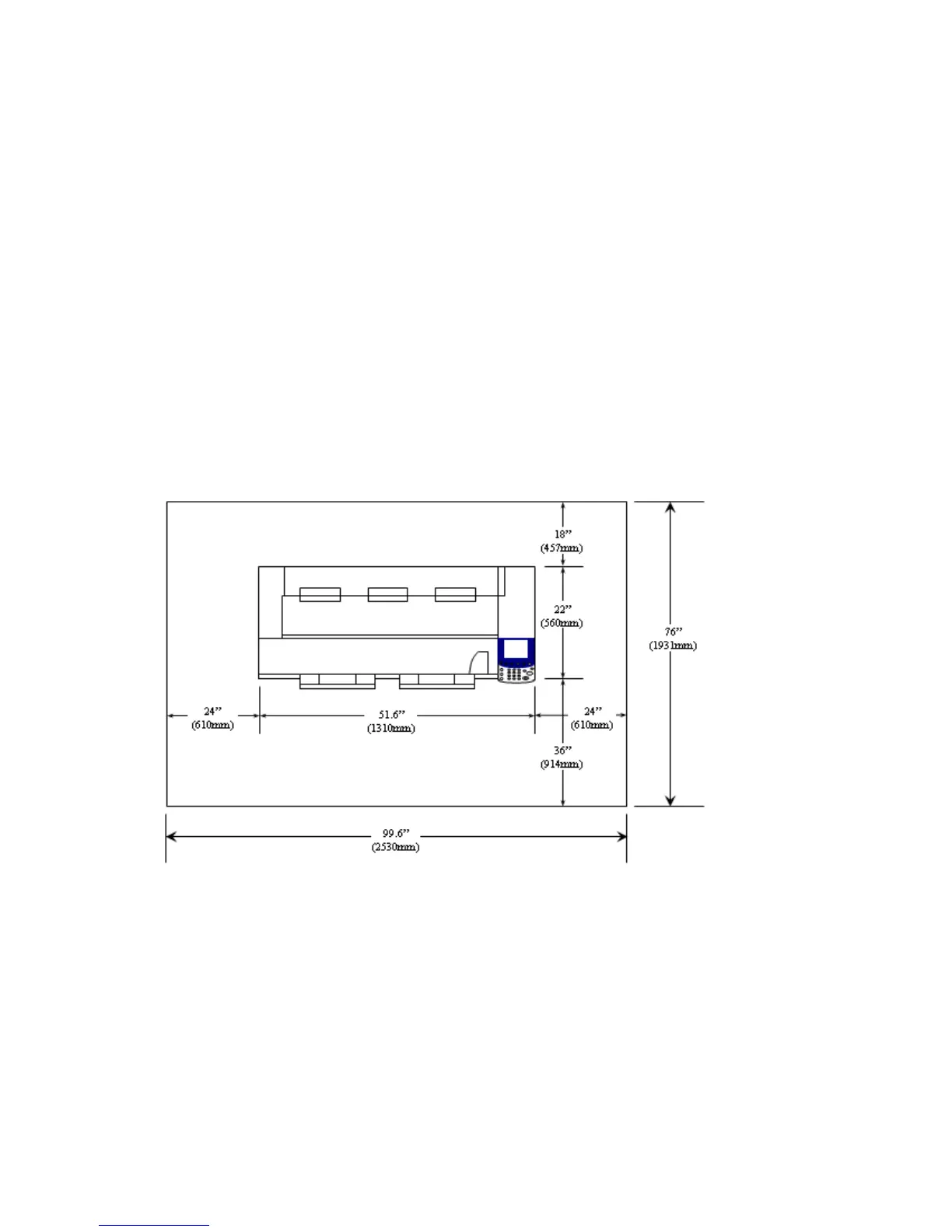

The diagram below illustrates the minimum clearances required for normal operation, consumables
replacement, and maintenance. Your Xerox representative will provide the support that is necessary to
install the machine correctly.
Rear
Front
