Control Panel

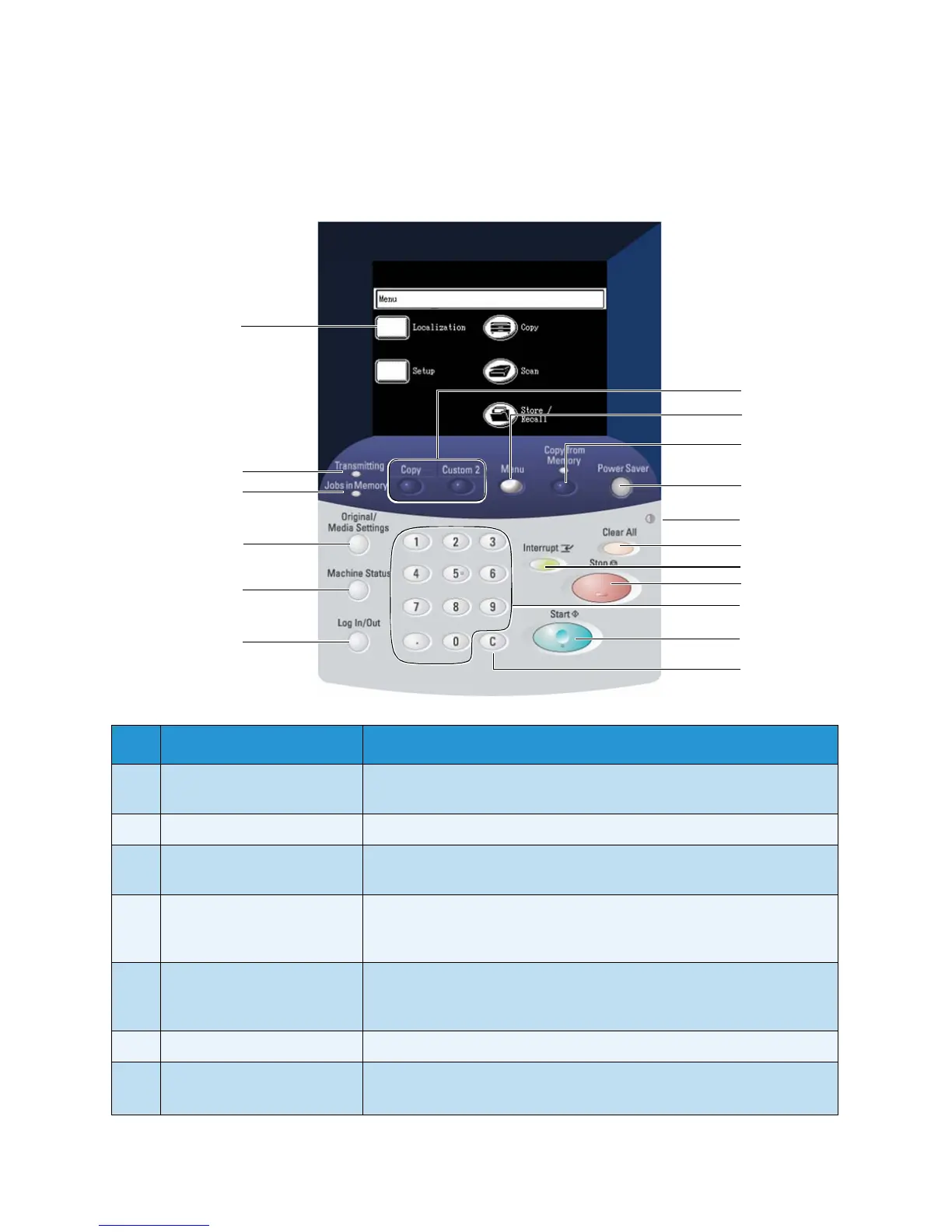

The following describes the control panel components.
No. Component Function
1 Tou c h sc ree n Displays messages and on-screen buttons for selecting features. Touch
the screen to select features and options.
2 <Transmitting> indicator Illuminates while the machine is communicating with the controller.
3 <Jobs in Memory> indicator Illuminates when data (from copying and scanning) are stored in
memory.
4 <Original/Media settings>
button
Displays the [Original/Media settings] screen. Select either or both of
the tabs that display to view or change the Original Size Series, and the
Media Size Series, Type, and Thickness.
5 <Machine Status> button Displays the machine status, media status, billing meter readings and
serial number, system description (configuration), and recent faults.
Also enables the printing of configuration and settings information.
6 <Log In/Out> button Displays the System Administrator mode screen.
7 <Custom 1>
<Custom 2>
Each button can be set up to display a custom feature when pressed.
1
8
2
3
5
6
10
12
13
14
16
4
17
7
15
11
9
