Calibration 133
Click Edit to edit the calibration table. See Editing Calibration Tables on
page 133.
Click Delete to delete the calibration table.
Click Info for the Density Graph. See Reading Color Density Data on
page 136.
Click Close to end a test job and close the Calibration window.
Editing Calibration Tables
You can review a calibration table to make sure that the curves are relatively smooth
and continuous. If you are not satisfied with the results, the Edit option enables you
to adjust the values of the image in the value table.
To edit a calibration table:
1. From the Tools menu, select Calibration.
2. In the Calibration Name box, select a calibration table, and then click Edit .
The Edit Calibration dialog box appears.

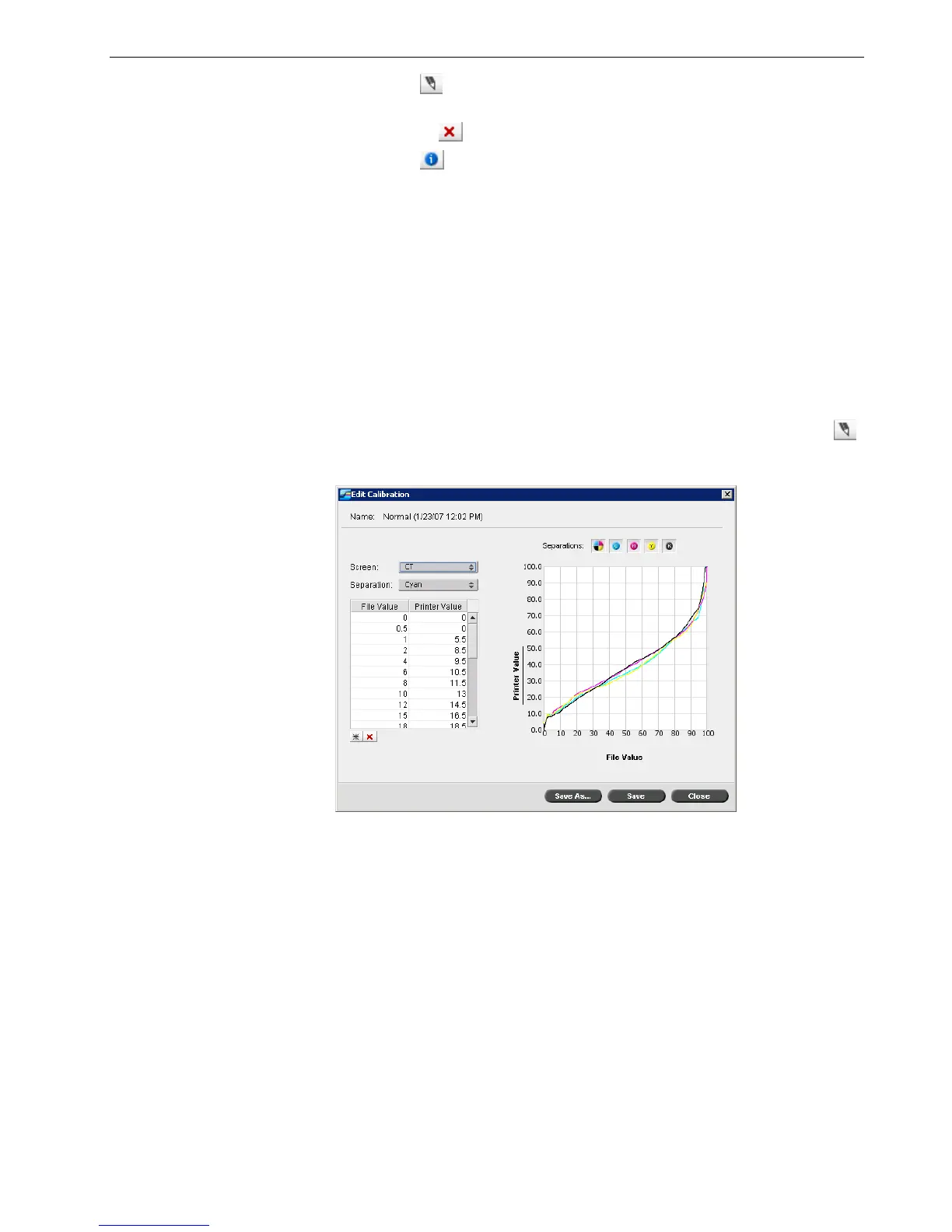

The Edit Calibration dialog box includes the following:
• Screen—If you selected Automatic as the screening method, you can view two
calibration tables, CT or LW. In the Screen list, select the table you want to view.
• Separation—The graph displays cyan, magenta, yellow, and black separations.
You can see information about each separation by selecting it from the list.
• Calibration Graph—The graph shows the values from your calibration table.
The horizontal axis represents the dot percentage values of the RTP file. The
vertical axis represents the dot percentage values of the final output data (after
applying the calibration table) that is sent to the printer.
During printing, the Spire CX260 automatically replaces the CMYK values in the
RTP file with new values that compensate for the printer’s current performance
level.
