158 Chapter 7 – System Administration
4. Click OK also in the Local Area Connection Properties window.
You are prompted to restart your computer.
5. Click No if you need to make more changes, or Ye s to reboot.
TCP/IP Setup
The Spire CX260 is predefined with a default IP address. The TCP/IP option enables
you to change this IP address and other TCP/IP settings.
To change the TCP/IP network settings:
1. In the Settings window, select Network Setup.
2. In the TCP/IP area, click Change Settings next to the IP Address parameter.
The Local Area Connection Properties dialog box appears, followed by the

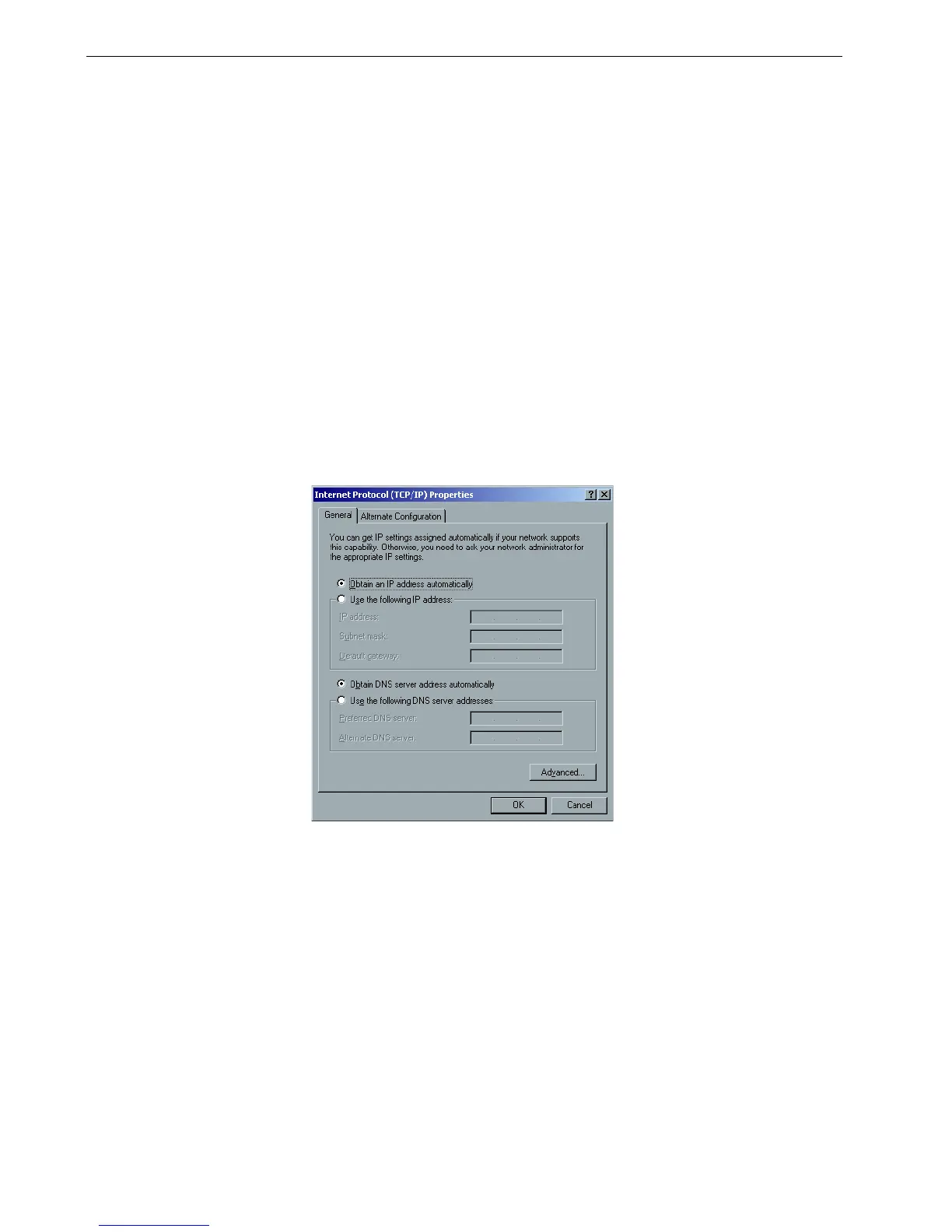

Internet Protocol (TCP/IP) Properties dialog box.
3. Change the IP Address by selecting Obtain an IP address automatically.
Or:
Select Use the following IP address and type the desired address—for
example, IP address:192.168.62.1 and Subnet mask:255.255.255.0.
4. Click OK.
5. Click OK in the Local Area Connection Properties window.
You are prompted to restart your computer.
6. Click No if you need to make more changes, or Ye s to reboot.
Note: Using this procedure requires further setup by the network
administrator.
Note: Before changing the network settings, consult your System
Administrator.
