Xerox Phaser 6120 Reference Guide

Specifying Print Settings
43

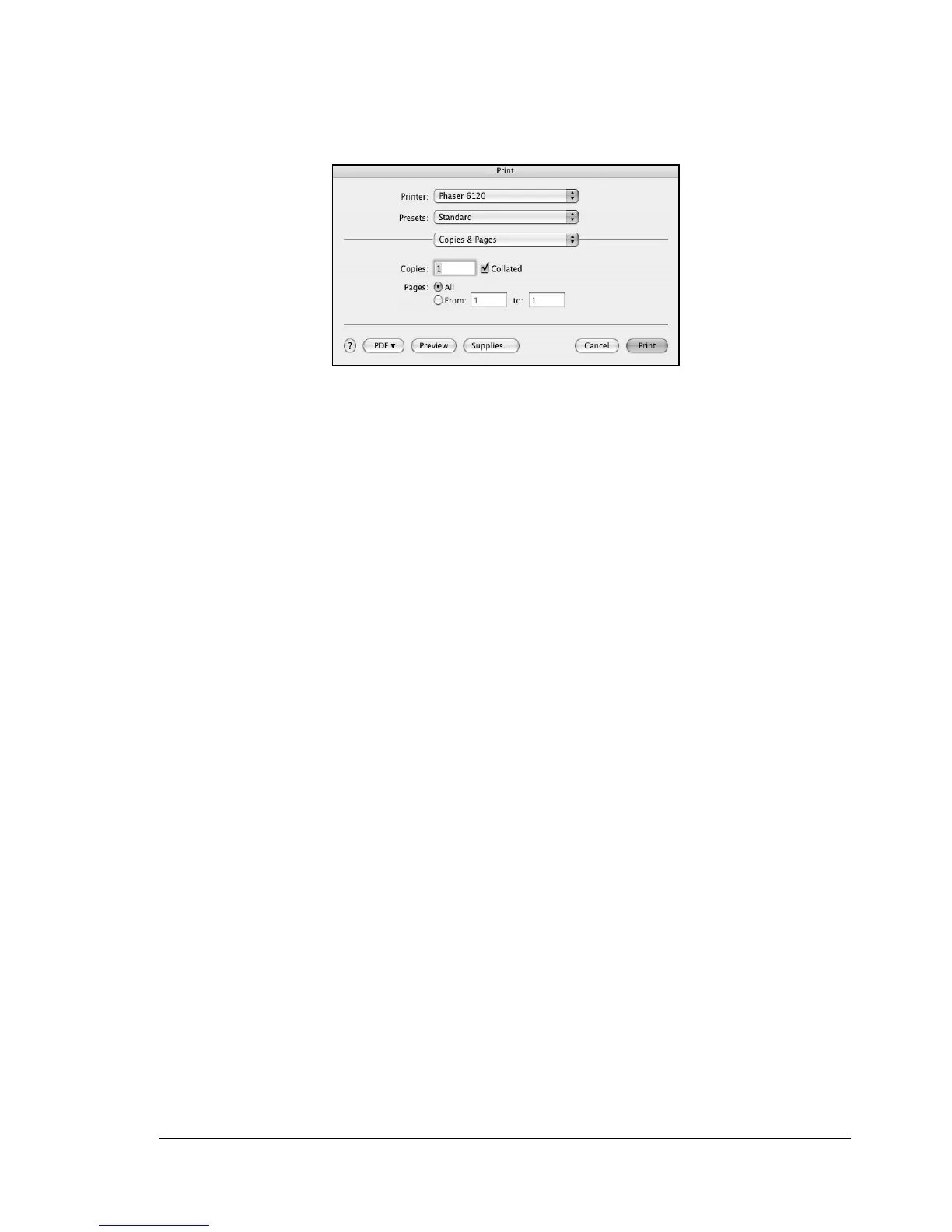

Print Dialog Contents
The Print dialog has a number of items that are always available regardless
of which pane is displayed.
 Printer pop-up menu
Select the destination printer from the Printer pop-up menu.
 Presets pop-up menu
Select standard, custom, or printer-supplied presets from the Presets
pop-up menu.
 Copies and Pages pop-up menu
Click this button to navigate between panes.
 ? button
Click this button to display help information about the Print dialog box.
 PDF button
Click this button to save the print output as a PDF file.
 Preview button
Click this button to view a preview image of the printout, to check that the
print options are set correctly.
 Supplies button
Click this button to display the manufacturer’s web page of recommended
supplies for the printer.
 Cancel button
Click this button to close the Print dialog box without applying any of the
settings.
 Print button
Click this button to print using the selected print options.

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
