Xerox Phaser 6120 Reference Guide

Specifying Print Settings
87

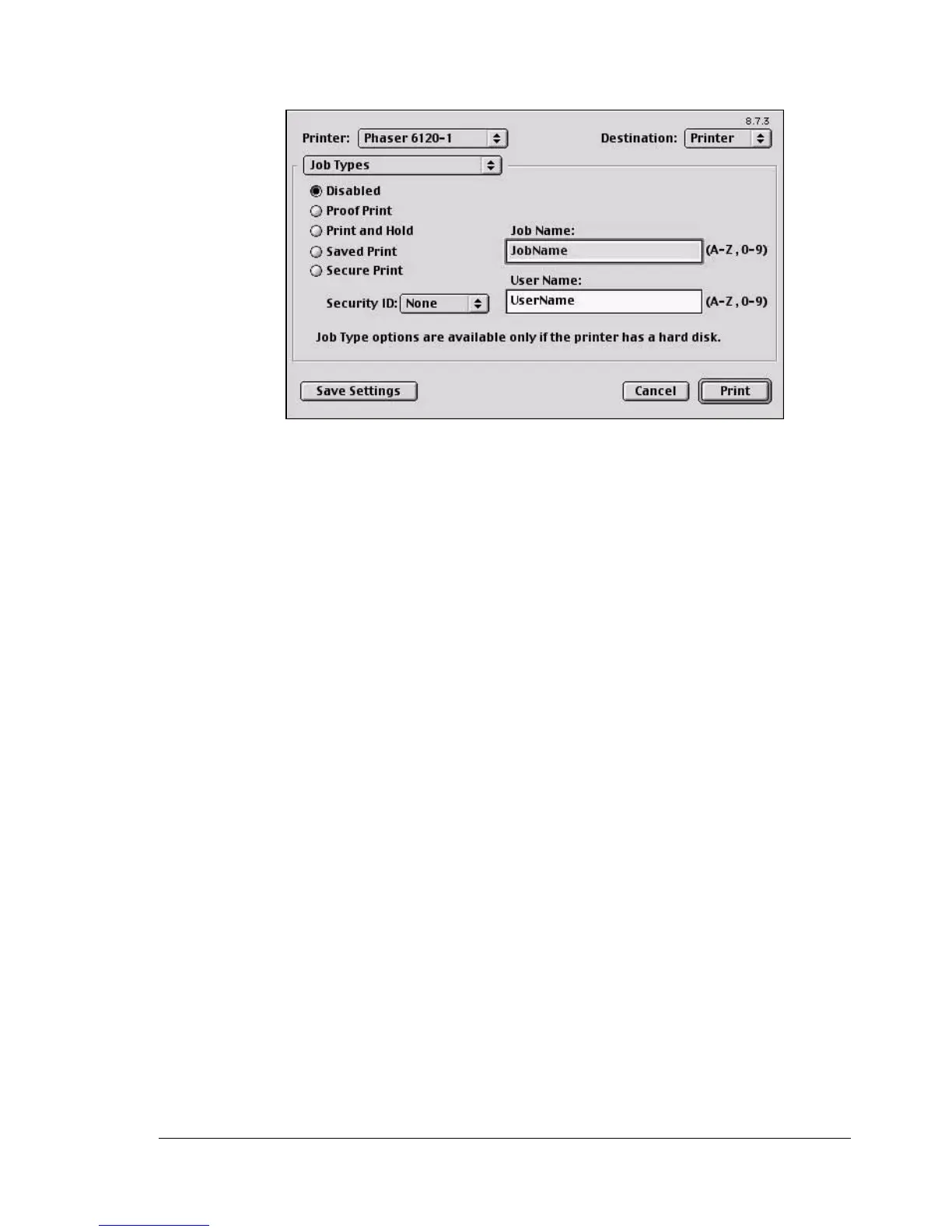

Job Types
 Job Types
Select type of job.
– Disabled: The job is printed normally.
– Proof Print: Printer prints 1 copy without the panel operation. You can
then print the rest of the copies through the panel. The job is deleted
after the whole copies are printed.
– Print and Hold: Printer prints all of multicopy print job, and then holds
the print job in the printer’s hard drive for printing additional copies.
The job isn’t deleted until it is intentionally deleted or the held job
timeout occurs.
– Saved Print: Allows user to store print jobs to the hard drive, and later
print them on demand from the control panel.
– Secure Print: Printer dose not print the job without the panel
operation. Printer prints the job when you input Security ID correctly.
The job is deleted after all copies are printed.
 Job Name
Allows you to set Job Name.
 User Name
Allows you to set User Name.
 Security ID
Select a Security ID to a Job.
" To use Job Types feature, the optional hard drive must be installed on
the printer.

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
