Xerox WorkCentre Series User Manual

General Care and Troubleshooting WorkCentre
®
XXXX
698 User Guide
This finisher and some of its’ components are optional and may not be fitted to your device.
If you are unable to resolve the problem, contact the Xerox Support Center.

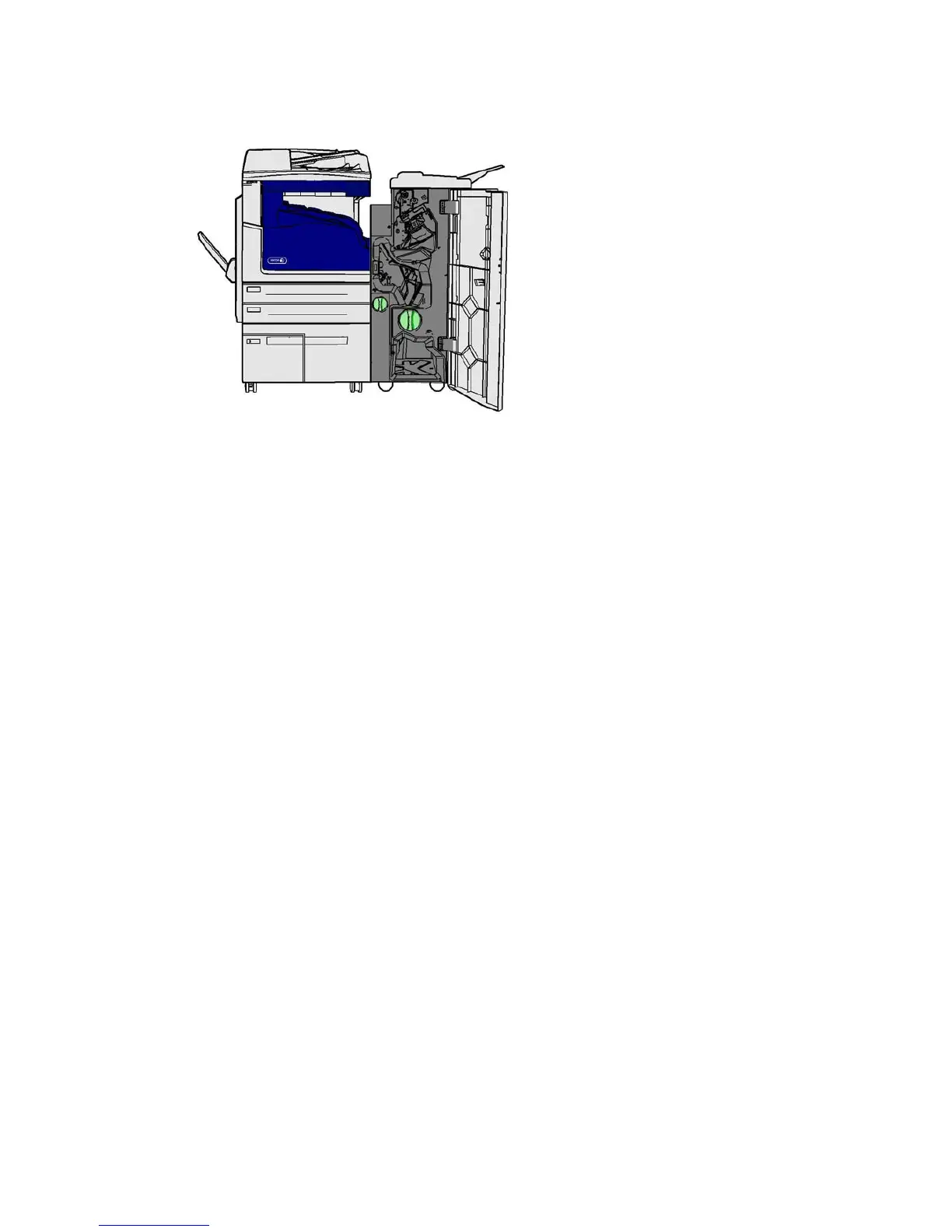

1. Open the finisher door.
2. Rotate the indented green knob above label R8 anti-clockwise until the handle is in the
unlocked position.
3. Rotate the large green indented knob to the right of label R8 clockwise until the jammed paper
is released into the finisher output tray.
4. Remove any jammed pages.
Note: If the page tore while it was being removed, re-assemble the sheet and any pieces to
confirm that nothing has been left in the device.
5. Pinch catch 6 and move it to the left to release any pages trapped in the finisher (pages may
be trapped in both the top and bottom of this area).
6. Remove any jammed pages.
7. Move catch 6 to the right until it clicks back into position.
8. Rotate the indented knob above label R8 clockwise until the handle is in the locked position.
9. Close the finisher door.
10. If the door does not shut easily check you have returned all the latches to their original position,
then close the door.
