Xilinx Vivado MIPI CSI-2 User Manual

MIPI CSI-2 RX Subsystem v4.0 41
PG232 July 02, 2019 www.xilinx.com
Chapter 3: Designing with the Subsystem
IMPORTANT: MIPI CSI-2 TX Subsystem and MIPI CSI-2 RX Subsystem share clocking resources, in such
scenario MIPI CSI-2 TX Subsystem need to be configured using Include Shared Logic in Core option
under Shared Logic tab.
IMPORTANT: The master and slave can be configured with the different line rate when sharing
clkoutphy within IO bank.
X-Ref Target - Figure 3-4

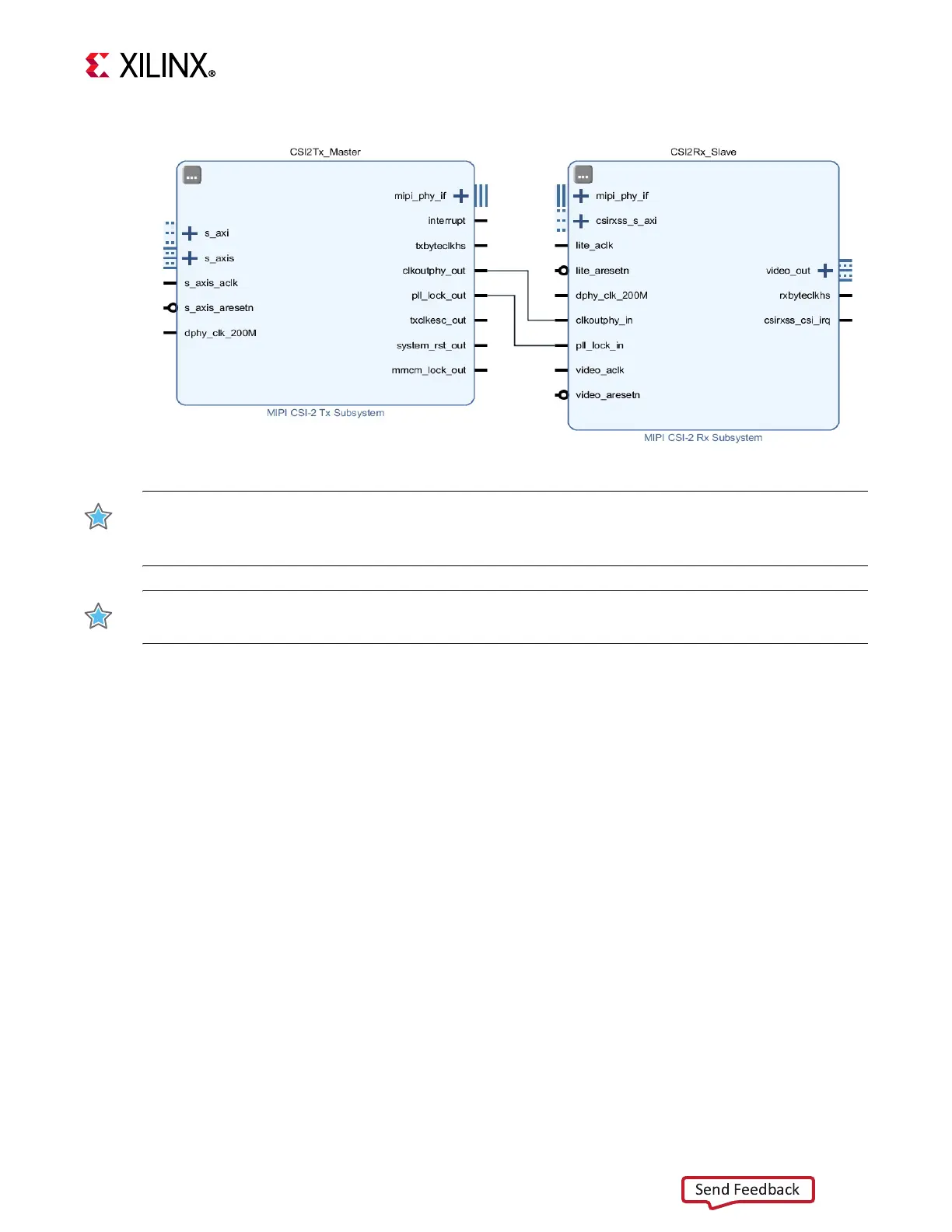

Figure 3-4: Clock Sharing in MIPI CSI-2 TX and MIPI CSI-2 RX Subsystems
