Chapter 3: Board Component Descriptions
The board setup instructions are summarized here:
1. Ensure that the Silicon Labs VCP USB-UART drivers are installed (see [Ref 7]).
2. Download the SCUI host PC application.
3. Connect the micro-USB to ZCU106 USB-UART connector (J83).
4. Power-cycle the ZCU106.
5. Observe that SYSCTLR LED0 (DS47) blinks and LED1 DS46 is illuminated.
6. Launch the SCUI.

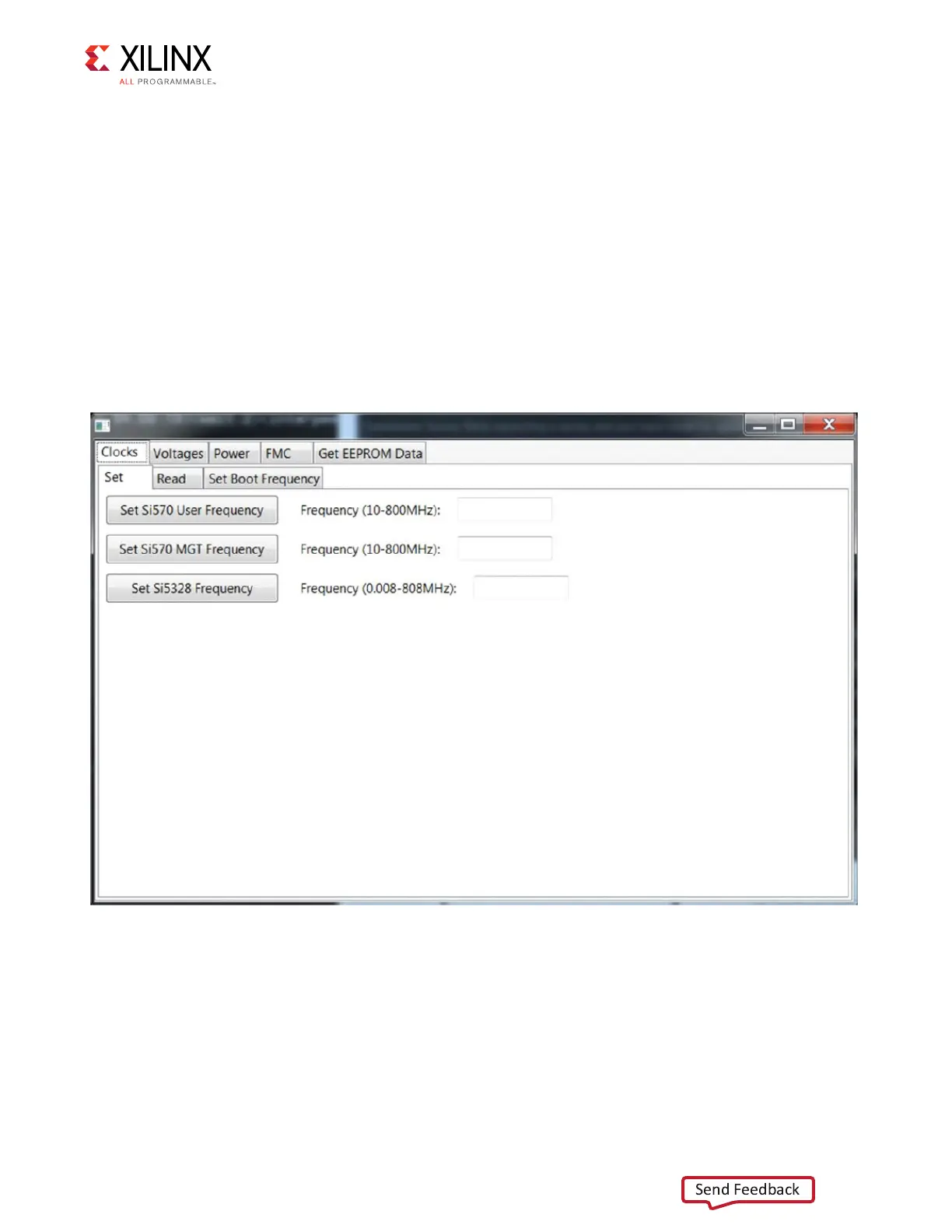

The SCUI GUI is shown in Figure 3-44.
X-Ref Target - Figure 3-44
Figure 3-44: System Controller User Interface
