ZCU106 Board User Guide 119
UG1244 (v1.0) March 28, 2018 www.xilinx.com
Chapter 3: Board Component Descriptions
Power On/Off Slide Switch
[Figure 2-1, callout 29]
The ZCU106 board power switch is SW1. Sliding the switch actuator from the off to the on
position applies 12V power from J52, a 6-pin mini-fit connector. Green LED DS2 illuminates
when the ZCU106 board power is on. See Board Power System, page 122 for details on the
on-board power system.
CAUTION! Do NOT plug a PC ATX power supply 6-pin connector into the ZCU106 board power
connector J52. The ATX 6-pin connector has a different pin-out than J52. Connecting an ATX 6-pin
connector into J52 damages the ZCU106 board and voids the board warranty.

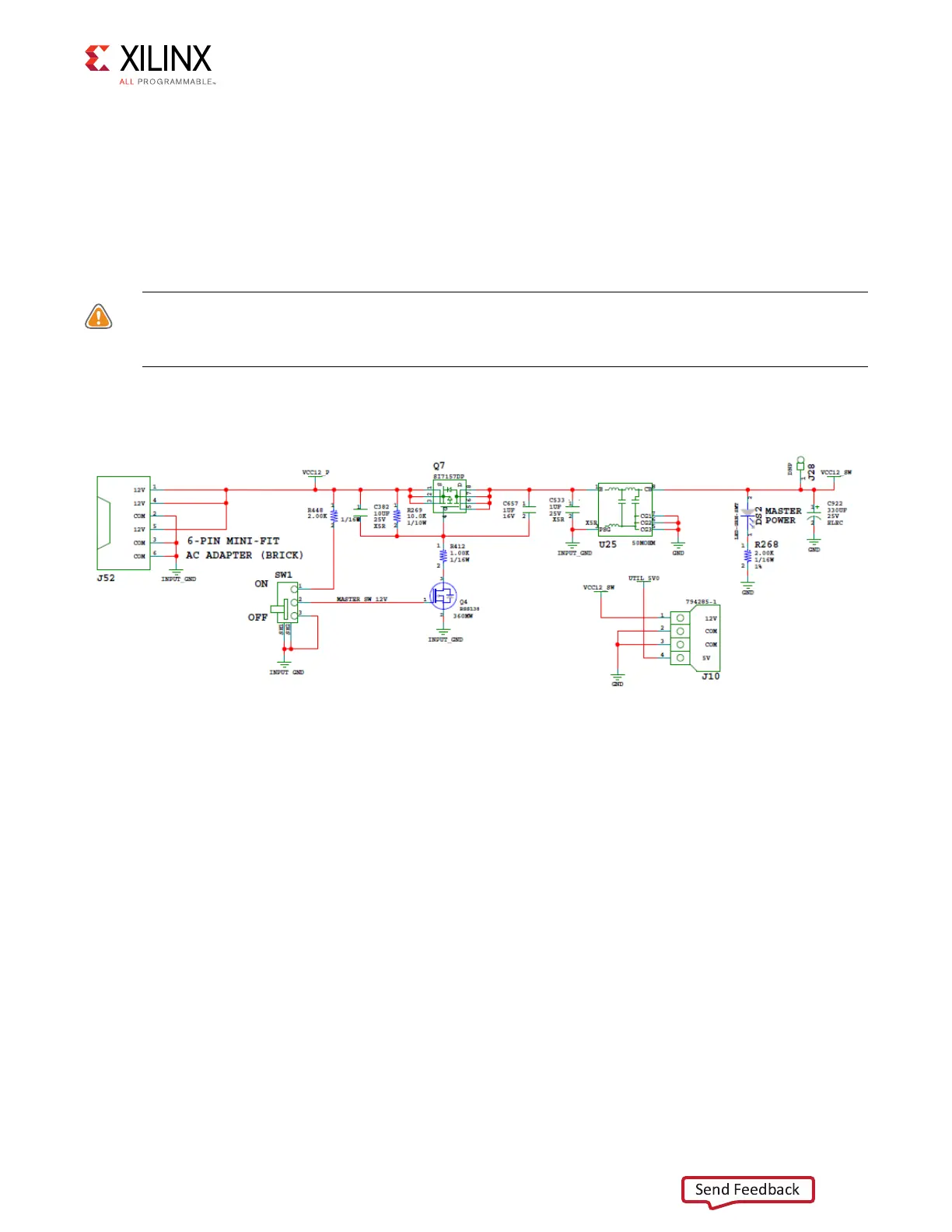

Figure 3-45 shows the power connector J52, power switch SW1, and LED indicator DS2.
X-Ref Target - Figure 3-45
Figure 3-45: Power Input
X16548-050117
Send Feedback
