YASKAWA iQpump1000 - Flange Type Models 2 A0069 and 2 A0081, 4 A0044, and 5 A0027 and 5 A0032

u
Flange Type Models 2A0069 and 2A0081, 4A0044, and 5A0027 and 5A0032
n
Flange Type Exterior and Mounting Dimensions
VERTICAL MOUNTING DIM
VERTICAL MOUNTING DIM
FRONT VIEW
(6)-MOUNTING
HOLES FOR
1/4 in. [M6] SCREWS
HORIZONTAL MOUNTING DIM
HORIZONTAL MOUNTING DIM
NOTE: Maximum surrounding air temperature id 50 °C (122 °F)
AIR
AIR
Unit: in. [mm]
(2) EXTERNAL
COOLING FANS

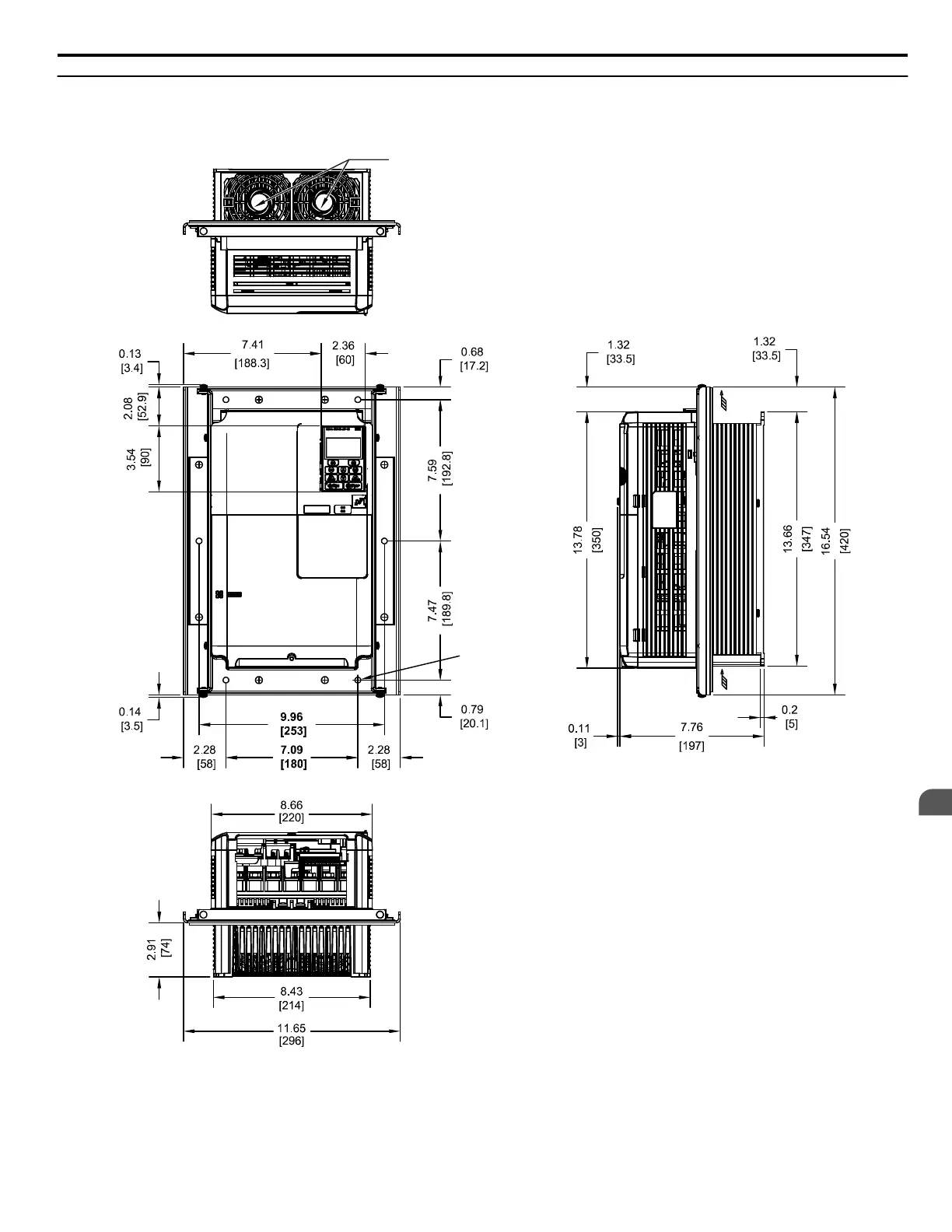

Figure 2.25 Models 2A0069 and 2A0081, 4A0044, and 5A0027 and 5A0032
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA TOEP YAIP1W 01F YASKAWA AC Drive - iQpump1000 User Manual
67
2
Mechanical Installation
