Flange Type Model 4A0414
n

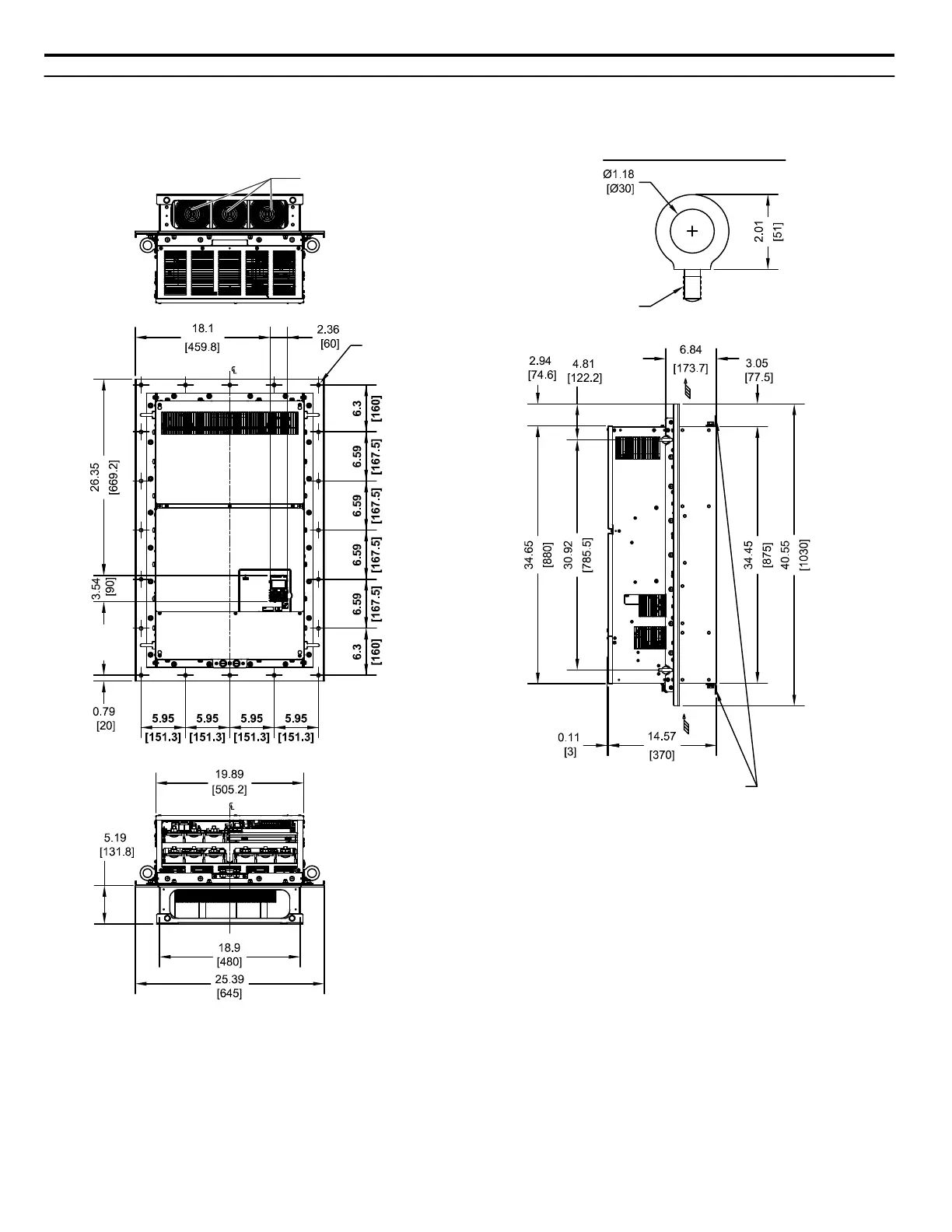

Flange Type Exterior and Mounting Dimensions
LIFTING AND EYEBOLT DETAILS
(20)-MOUNTING HOLES
FOR 3/8 in. [M10] SCREWS
HORIZONTAL MOUNTING DIM
FRONT VIEW
AIR
AIR
VERTICAL MOUNTING DIM
M12 THREAD
(2) MOUNTING BRACKETS
USED DURING TRANSPORT ONLY
REMOVE BEFORE INSTALLING
NOTE: Spreader bar required to avoid damage during lifting.
NOTE: Maximum surrounding air temperature is 50 °C (122 °F)
(3) EXTERNAL
COOLING FANS
Unit: in. [mm]
Figure 2.39 Model 4A0414
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
