YASKAWA iQpump1000 - Three-Phase 200 V Class Models 2 A0169 to 2 A0211; Three-Phase 200 V Class Models 2 A0250 to 2 A0415

u
Three-Phase 200 V Class Models 2A0169 to 2A0211
Three-Phase 400 V Class Models 4A0088 to 4A0139
Three-Phase 600 V Class Models 5A0062 to 5A0099
+1
–
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
+
+3
DC link
choke
Relay
Gate board
Control
board
Operator
Current
sensor

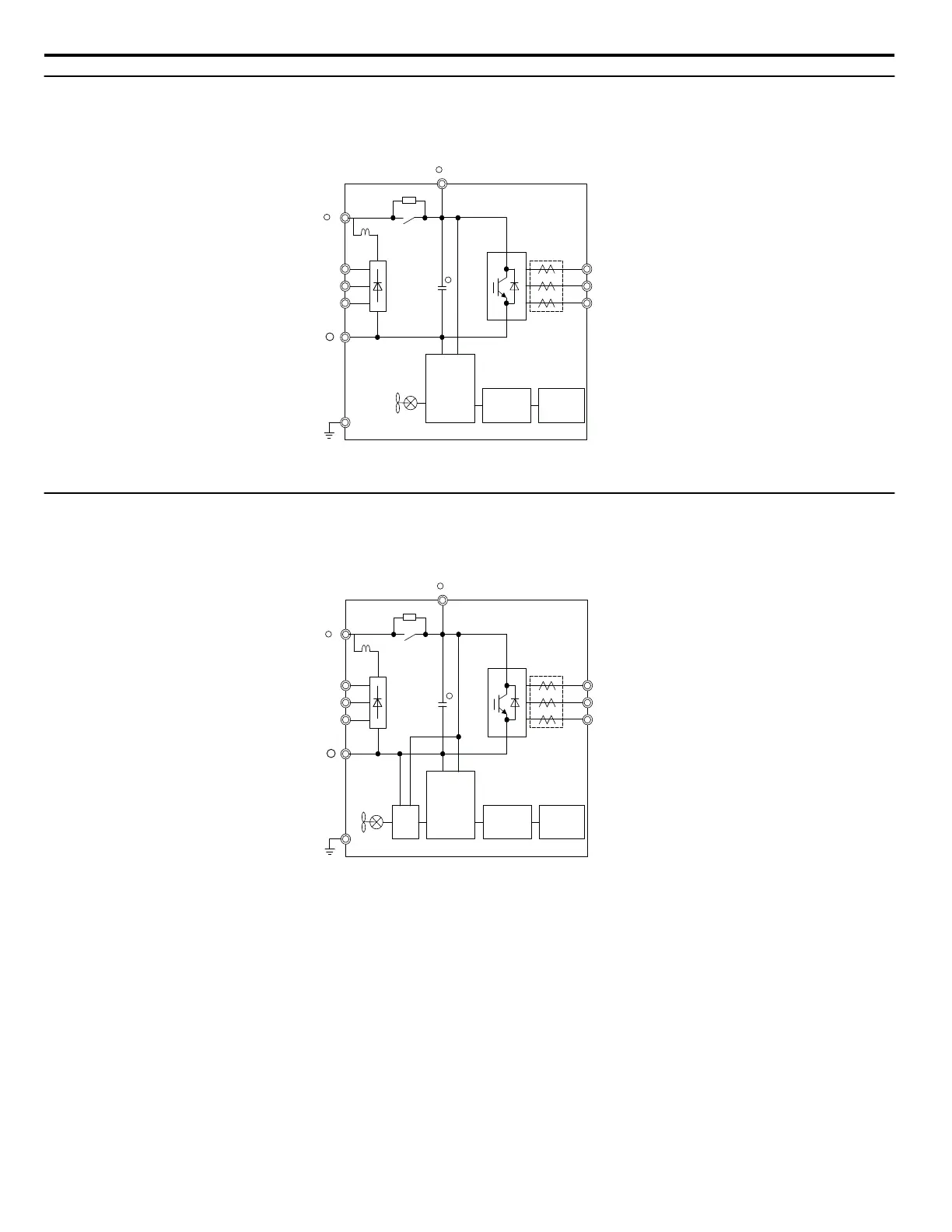

Figure 3.4 Connecting Main Circuit Terminals
u
Three-Phase 200 V Class Models 2A0250 to 2A0415
Three-Phase 400 V Class Models 4A0165 to 4A0675
Three-Phase 600 V Class Models 5A0125 to 5A0242
+1
–
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
+3
+
24 V
Power
Supply
DC link
choke
Relay
Gate board
Control
board
Operator
Current
sensor
Figure 3.5 Connecting Main Circuit Terminals
3.2 Main Circuit Connection Diagram
96
YASKAWA TOEP YAIP1W 01F YASKAWA AC Drive - iQpump1000 User Manual
